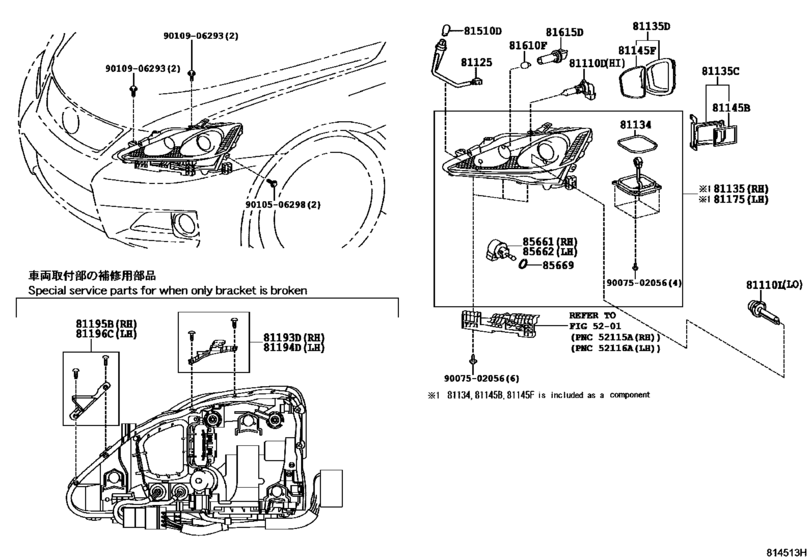

Headlamp ([12.2007 - 08.2010] (0712-1008)) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110D
|
81110D
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[12.2007 -] USE20 12V65W(SAE),60W(ECE) |
90981-13046 |
from US $15.92 |
||
|
81110L
|
81110L
90981-20021 Bulb, Discharge Headlamp[12.2007 - 02.2009] USE20 45V 35W |
90981-20021 |
US $189.28 |
||
| replacement | |||||
|
81110L
|
81110L
90981-20024 Bulb, Discharge Headlamp[12.2007 - 02.2009] USE20 45V 35W |
90981-20024 |
from US $164.74 |
||
|
81110L
|
81110L
90981-20024 Bulb, Discharge Headlamp[02.2009 -] USE20 42V 35W |
90981-20024 |
from US $164.74 |
||
|
81125
|
81125
81125-53540 Cord, Headlamp[08.2010 - 04.2013] USE20 |
81125-53540 |
US $19.68 |
||
|
81125
|
81125
81126-53220 Cord, Headlamp[12.2007 - 08.2010] USE20 |
81126-53220 |
US $36.40 |
||
|
81134
|
81134
90075-68007 Gasket, Headlamp[12.2007 - 04.2013] USE20 |
90075-68007 |
from US $7.13 |
||
|
81135
|
81135
81140-53320 Unit Assy, Headlamp, Rh[12.2007 - 04.2010] USE20..RHD |
81140-53320 |
US $1,327.87 |
||
| replacement | |||||
|
81135
|
81135
81140-53321 Unit Assy, Headlamp, Rh[12.2007 - 04.2010] USE20..RHD |
81140-53321 |
US $1,514.24 |
||
|
81135
|
81135
81140-53321 Unit Assy, Headlamp, Rh[04.2010 - 08.2010] USE20..RHD |
81140-53321 |
US $1,514.24 |
||
|
81135
|
81135
81145-53650
Unit Assy, Headlamp, Rh
[08.2010 - 08.2011] USE20..RHD |
81145-53650 |
— | ||
|
81135
|
81135
81145-53651
Unit Assy, Headlamp, Rh
[08.2011 - 09.2011] USE20..RHD |
81145-53651 |
— | ||
|
81135
|
81135
81145-53652
Unit Assy, Headlamp, Rh
[09.2011 - 09.2011] USE20..RHD |
81145-53652 |
— | ||
|
81135
|
81135
81145-53653
Unit Assy, Headlamp, Rh
[09.2011 - 04.2013] USE20..RHD |
81145-53653 |
— | ||
|
81135
|
81135
81145-53654 Unit Assy, Headlamp, Rh[05.2013 -] USE20..RHD |
81145-53654 |
US $1,297.23 |
||
|
81135C
|
81135C
81135-53240 Cover, Headlamp Back, No.1[12.2007 - 04.2013] USE20 |
81135-53240 |
from US $21.76 |
||
|
81135D
|
81135D
81136-53240 Cover, Headlamp Back, No.2[12.2007 - 08.2010] USE20 RH |
81136-53240 |
US $13.62 |
||
|
81135D
|
81135D
81176-53240 Cover, Headlamp Back, No.2[12.2007 - 08.2010] USE20 LH |
81176-53240 |
from US $9.90 |
||
|
81145B
|
81145B
81132-53240 Gasket, Headlamp Cover, No.1[12.2007 - 08.2014] USE20 |
81132-53240 |
US $20.83 |
||
|
81145F
|
81145F
81134-53240 Gasket, Headlamp Cover, No.2[12.2007 - 08.2010] USE20 |
81134-53240 |
US $10.22 |
||
|
81175
|
81175
81070-53320 Unit Assy, Headlamp, Lh[12.2007 - 04.2010] USE20..RHD |
81070-53320 |
US $1,327.87 |
||
| replacement | |||||
|
81175
|
81175
81070-53321 Unit Assy, Headlamp, Lh[12.2007 - 04.2010] USE20..RHD |
81070-53321 |
US $1,514.24 |
||
|
81175
|
81175
81070-53321 Unit Assy, Headlamp, Lh[04.2010 - 08.2010] USE20..RHD |
81070-53321 |
US $1,514.24 |
||
|
81175
|
81175
81185-53650
Unit Assy, Headlamp, Lh
[08.2010 - 08.2011] USE20..RHD |
81185-53650 |
— | ||
|
81175
|
81175
81185-53651
Unit Assy, Headlamp, Lh
[08.2011 - 09.2011] USE20..RHD |
81185-53651 |
— | ||
|
81175
|
81175
81185-53652
Unit Assy, Headlamp, Lh
[09.2011 - 09.2011] USE20..RHD |
81185-53652 |
— | ||
|
81175
|
81175
81185-53653
Unit Assy, Headlamp, Lh
[09.2011 - 04.2013] USE20..RHD |
81185-53653 |
— | ||
|
81175
|
81175
81185-53654
Unit Assy, Headlamp, Lh
[05.2013 -] USE20..RHD |
81185-53654 |
— | ||
|
81193D
|
81193D
81193-53020 Retainer, Rh Headlamp Protector, Upper Lh[12.2007 -] USE20 |
81193-53020 |
from US $16.26 |
||
|
81194D
|
81194D
81194-53010 Retainer, Lh Headlamp Protector, Upper Lh[12.2007 -] USE20 |
81194-53010 |
from US $24.62 |
||
|
81195B
|
81195B
81195-53010 Retainer, Rh Headlamp Protector, Lower Rh[12.2007 -] USE20 |
81195-53010 |
from US $7.78 |
||
|
81196C
|
81196C
81196-53020 Retainer, Lh Headlamp Protector, Lower Lh[12.2007 -] USE20 |
81196-53020 |
from US $7.78 |
||
|
81510D
|
81510D
90981-15021 Bulb (For Front Turn Signal Lamp)[12.2007 -] USE20 12V 21W,AMBER |
90981-15021 |
from US $3.14 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[12.2007 - 08.2010] USE20 12V 5W |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[12.2007 - 08.2010] USE20 12V 5W |
90080-81053 |
US $0.99 |
||
|
81615D
|
81615D
90075-60077 Clearance Lamp Socket[12.2007 - 08.2010] USE20 |
90075-60077 |
from US $6 |
||
|
85661
|
85661
85661-48030 Motor, Headlamp Leveling, Rh[12.2007 - 04.2013] USE20 |
85661-48030 |
US $155.79 |
||
|
85662
|
85662
85661-48030 Motor, Headlamp Leveling, Rh[12.2007 - 04.2013] USE20 |
85661-48030 |
US $155.79 |
||
|
85669
|
85669
90075-99120 Packing, Headlamp Leveling Motor Base[12.2007 - 04.2013] USE20 |
90075-99120 |
from US $2.32 |
||
|
9007502056
|
9007502056
90075-02056 Screw, Headlamp |
90075-02056 |
from US $0.59 |
||
|
9010506298
|
9010506298
90105-06298 BOLT FLANGE |
90105-06298 |
from US $0.59 |
||
|
9010906293
|
9010906293
90109-06293 BOLTFOLDING SEAT |
90109-06293 |
from US $0.67 |
||
