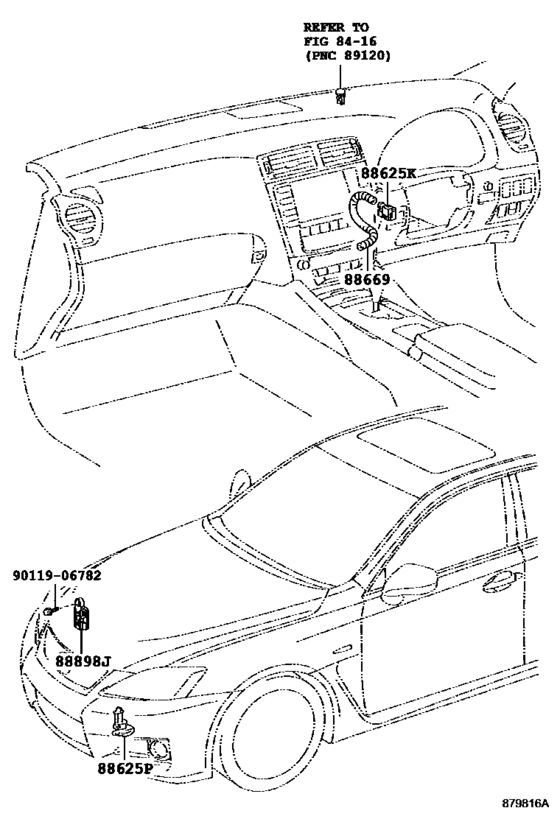

Heating & Air Conditioning - Control & Air Duct ([12.2007 - ] SENSOR (0712- )RHD) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88625K
|
88625K
88625-47021 Thermistor, Cooler No.3[12.2007 - 08.2014] USE20 |
88625-47021 |
from US $14.68 |
||
|
88625P
|
88625P
88790-22150 Thermistor, Cooler (Ambient Temp. Sensor)[12.2007 -] USE20 |
88790-22150 |
from US $35.12 |
||
|
88669
|
88669
88669-30050
Hose, Cooler Air
[12.2007 - 08.2014] USE20 |
88669-30050 |
— | ||
|
88898J
|
88898J
88898-50030
Thermistor, Cooler (Sensor, Smog Ventilation)
[12.2007 - 11.2010] USE20 |
88898-50030 |
— | ||
| replacement | |||||
|
88898J
|
88898J
88898-50031 Thermistor, Cooler (Sensor, Smog Ventilation)SMOG VENTILATION [12.2007 - 11.2010] USE20 |
88898-50031 |
US $103 |
||
|
88898J
|
88898J
88898-50031 Thermistor, Cooler (Sensor, Smog Ventilation)SMOG VENTILATION [12.2010 -] USE20 |
88898-50031 |
US $103 |
||
|
9011906782
|
9011906782
90119-06782 BOLT WWASHER |
90119-06782 |
from US $0.65 |
||
