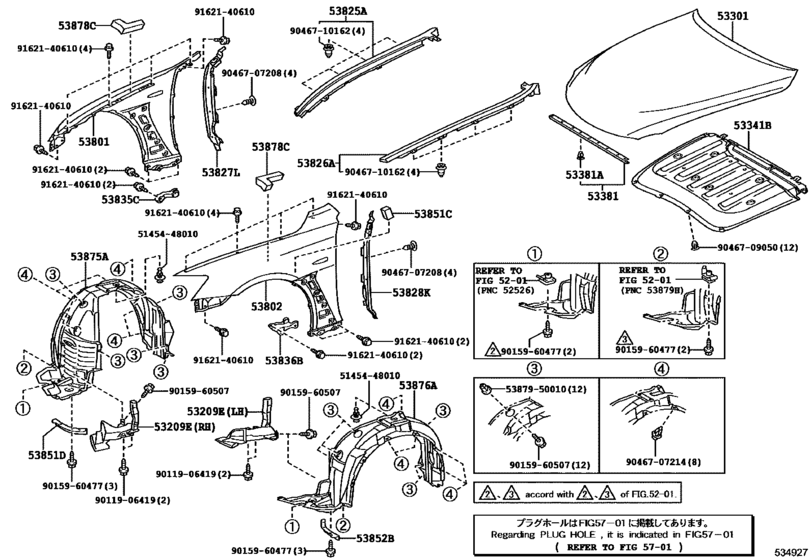

Hood & Front Fender ([12.2007 - ] (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53209E
|
53209E
53208-53060 Duct Sub-Assy, Cool Air Intake, No.3[12.2007 -] USE20 RH |
53208-53060 |
from US $97.10 |
||
|
53209E
|
53209E
53209-53020 Duct Sub-Assy, Cool Air Intake, No.3[12.2007 -] USE20 LH |
53209-53020 |
US $104.96 |
||
|
53301
|
53301
53301-53070 Hood Sub-Assy[12.2007 - 08.2014] USE20 |
53301-53070 |
from US $1,058.66 |
||
|
53341B
|
53341B
53341-53050 Insulator, Hood[12.2007 -] USE20 |
53341-53050 |
US $104.72 |
||
|
53381
|
53381
53381-53040 Seal, Hood To Radiator Support[12.2007 -] USE20 |
53381-53040 |
from US $16.71 |
||
|
53381A
|
53381A
90467-08011 Clip(For Headlamp Cover Seal)[12.2007 -] USE20 |
90467-08011 |
from US $0.32 |
||
| replacements | |||||
|
53381A
|
53381A
90467-08011-TH CLIP[12.2007 -] USE20 |
90467-08011-TH |
US $0.30 |
||
|
53381A
|
53381A
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [12.2007 -] USE20 |
90467-08011-83 |
US $0.51 |
||
|
53801
|
53801
53801-53080 Fender Sub-Assy, Front Rh[12.2007 -] USE20 |
53801-53080 |
US $912.04 |
||
|
53802
|
53802
53802-53080 Fender Sub-Assy, Front Lh[12.2007 -] USE20 |
53802-53080 |
US $605.70 |
||
|
53825A
|
53825A
53807-53020 Protector, Front Fender, Upper Rh[12.2007 -] USE20 |
53807-53020 |
US $55.36 |
||
|
53826A
|
53826A
53808-53020 Protector, Front Fender, Upper Lh[12.2007 -] USE20 |
53808-53020 |
US $55.36 |
||
|
53827L
|
53827L
53827-53020 Protector, Front Fender Side Panel, Rh[12.2007 -] USE20 |
53827-53020 |
US $34.62 |
||
|
53828K
|
53828K
53828-53020 Protector, Front Fender Side Panel, Lh[12.2007 -] USE20 |
53828-53020 |
US $50.06 |
||
|
53835C
|
53835C
53835-53010 Bracket, Front Side Panel, Rh[12.2007 -] USE20 |
53835-53010 |
US $11.42 |
||
|
53836B
|
53836B
53836-53010 Bracket, Front Side Panel, Lh[12.2007 -] USE20 |
53836-53010 |
US $12.61 |
||
|
53851C
|
53851C
53855-53010 Pad, Front Wheel Opening Extension, No.1[12.2007 -] USE20 |
53855-53010 |
US $8.88 |
||
|
53851D
|
53851D
53851-53020
Pad, Front Wheel Opening Extension, Rh
[12.2007 - 07.2008] USE20 |
53851-53020 |
— | ||
| replacement | |||||
|
53851D
|
53851D
53851-53021 Pad, Front Wheel Opening Extension, RhFRONT WHEEL OPENING EXTENSION, RH [12.2007 - 07.2008] USE20 |
53851-53021 |
from US $28.45 |
||
|
53851D
|
53851D
53851-53021 Pad, Front Wheel Opening Extension, RhFRONT WHEEL OPENING EXTENSION, RH [07.2008 -] USE20 |
53851-53021 |
from US $28.45 |
||
|
53852B
|
53852B
53852-53020
Pad, Front Wheel Opening Extension, Lh
[12.2007 - 07.2008] USE20 |
53852-53020 |
— | ||
| replacement | |||||
|
53852B
|
53852B
53852-53021 Pad, Front Wheel Opening Extension, LhFRONT WHEEL OPENING EXTENSION, LH [12.2007 - 07.2008] USE20 |
53852-53021 |
from US $34.25 |
||
|
53852B
|
53852B
53852-53021 Pad, Front Wheel Opening Extension, LhFRONT WHEEL OPENING EXTENSION, LH [07.2008 -] USE20 |
53852-53021 |
from US $34.25 |
||
|
53875A
|
53875A
53805-53030 Liner, Front Fender, Rh[12.2007 -] USE20 |
53805-53030 |
from US $198.21 |
||
|
53876A
|
53876A
53806-53030 Liner, Front Fender, Lh[12.2007 -] USE20 |
53806-53030 |
from US $198.84 |
||
|
53878C
|
53878C
53878-53020 Spacer, Front Fender[12.2007 -] USE20 |
53878-53020 |
US $20.78 |
||
|
5145448010
|
5145448010
51454-48010 Silencer, Engine Under Cover, Rear |
51454-48010 |
from US $3.21 |
||
|
5387950010
|
5387950010
53879-50010 Retainer, Front Fender Liner |
53879-50010 |
from US $0.91 |
||
|
9011906419
|
9011906419
90119-06419 BOLT WWASHER |
90119-06419 |
US $2.15 |
||
|
9015960477
|
9015960477
90159-60477 SCREW, WWASHER |
90159-60477 |
from US $0.68 |
||
|
9015960507
|
9015960507
90159-60507 SCREW WWASHER |
90159-60507 |
from US $0.86 |
||
|
9046707208
|
9046707208
90467-07208 CLIP |
90467-07208 |
from US $0.89 |
||
|
9046707214
|
9046707214
90467-07214 Clip, Front Fender Liner |
90467-07214 |
from US $0.84 |
||
|
9046709050
|
9046709050
90467-09050 Clip(For Hood Insulator) |
90467-09050 |
from US $0.84 |
||
|
9046710162
|
9046710162
90467-10162 Clip, Front Wheel Opening Extensoion |
90467-10162 |
from US $0.86 |
||
|
9162140610
|
9162140610
91621-40610 BOLT |
91621-40610 |
from US $0.68 |
||
