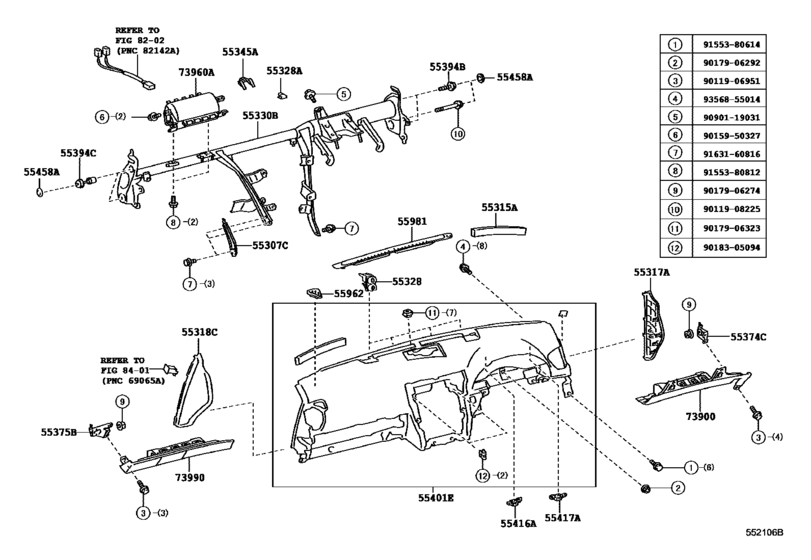

Instrument Panel & Glove Compartment ([12.2007 - 01.2008] (0712-0801)RHD) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55307C
|
55307C
55352-53040 Brace Sub-Assy, Instrument Panel, No.2[12.2007 -] USE20 |
55352-53040 |
US $8.01 |
||
|
55315A
|
55315A
55315-53010 Spacer, Instrument Panel, No.1[12.2007 - 01.2008] USE20 |
55315-53010 |
US $6.45 |
||
|
55317A
|
55317A
55317-53070-C0 Panel, Instrument Side, Rh[12.2007 - 08.2014] USE20..RHD BLACK,TRIM2# |
55317-53070-C0 |
US $39.85 |
||
|
55318C
|
55318C
55318-53040-C0 Panel, Instrument Side, Lh[12.2007 - 08.2014] USE20..LHD BLACK,TRIM2#; USE20..RHD NEW ZEALAND SPEC,BLACK,TRIM2#; USE20..RHD AUSTRALIA SPEC,BLACK,TRIM2# |
55318-53040-C0 |
US $38.88 |
||
|
55318C
|
55318C
55318-53050-C0
Panel, Instrument Side, Lh
[12.2007 - 08.2014] USE20..RHD BLACK,TRIM2# |
55318-53050-C0 |
— | ||
|
55328
|
55328
55328-30140 Pin, Instrument Panel, No.1[12.2007 -] USE20 |
55328-30140 |
US $4.66 |
||
|
55328A
|
55328A
55328-48110 Stay, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [10.2010 -] USE20 |
55328-48110 |
from US $1.58 |
||
|
55328A
|
55328A
55328-50170 Stay, Instrument Panel, No.3[12.2007 - 09.2010] USE20 |
55328-50170 |
US $1.46 |
||
|
55330B
|
55330B
55330-53051 Reinforcement Assy, Instrument Panel[12.2007 - 08.2009] USE20..RHD |
55330-53051 |
US $244.61 |
||
|
55330B
|
55330B
55330-53250 Reinforcement Assy, Instrument PanelINSTRUMENT PANEL [08.2009 -] USE20..RHD |
55330-53250 |
US $243.15 |
||
|
55345A
|
55345A
55345-30060 Clip, Instrument Panel, No.1[12.2007 -] USE20 |
55345-30060 |
US $3.72 |
||
|
55374C
|
55374C
55374-53010 Bracket, Instrument Panel Lower Mounting, No.1[12.2007 -] USE20..RHD |
55374-53010 |
US $10.63 |
||
|
55375B
|
55375B
55375-53040 Bracket, Instrument Panel Lower Mounting, No.2[12.2007 -] USE20..RHD |
55375-53040 |
US $11.50 |
||
|
55394B
|
55394B
55394-50010 Bolt, Instrument Panel[12.2007 -] USE20 |
55394-50010 |
US $2.33 |
||
|
55394C
|
55394C
55394-33041 Bolt, Instrument Panel[08.2008 -] USE20 |
55394-33041 |
US $2.77 |
||
|
55394C
|
55394C
55394-51011 Bolt, Instrument Panel[12.2007 - 07.2008] USE20 |
55394-51011 |
US $2.77 |
||
|
55401E
|
55401E
55400-53903 Pad Sub-Assy, Instrument Panel Safety[12.2007 - 01.2008] USE20..RHD |
55400-53903 |
US $991.54 |
||
| replacements | |||||
|
55401E
|
55401E
55400-53905-C0 Pad Sub-Assy, Instrument Panel Safety[12.2007 - 01.2008] USE20..RHD |
55400-53905-C0 |
US $1,118.72 |
||
|
55401E
|
55401E
55315-53010 Spacer, Instrument Panel, No.1[12.2007 - 01.2008] USE20..RHD |
55315-53010 |
US $6.45 |
||
|
55401E
|
55401E
55355-53050 Cushion, Instrument Panel[12.2007 - 01.2008] USE20..RHD |
55355-53050 |
US $1.08 |
||
|
55401E
|
55401E
90179-06323 Nut[12.2007 - 01.2008] USE20..RHD |
90179-06323 |
US $1.97 |
||
|
55401E
|
55401E
90183-05094 NUT[12.2007 - 01.2008] USE20..RHD |
90183-05094 |
from US $0.91 |
||
|
55401E
|
55401E
55400-53905-C0 Pad Sub-Assy, Instrument Panel Safety[01.2008 -] USE20..RHD BLACK,TRIM2# |
55400-53905-C0 |
US $1,118.72 |
||
|
55416A
|
55416A
55416-30150 Retainer, Meter Hood, No.1[12.2007 -] USE20 |
55416-30150 |
US $6.12 |
||
|
55417A
|
55417A
55417-30070 Retainer, Meter Hood, No.2[12.2007 -] USE20 |
55417-30070 |
US $6.12 |
||
|
55458A
|
55458A
55458-50100 Cap, Instrument Panel Safety Pad[12.2007 -] USE20 |
55458-50100 |
from US $2.05 |
||
|
55962
|
55962
55962-53010-C0 Nozzle, Side Defroster, No.2[12.2007 - 08.2014] USE20..RHD BLACK,TRIM2# |
55962-53010-C0 |
US $4.51 |
||
|
55981
|
55981
55981-53010-C0 Garnish, Defroster Nozzle, No.1[12.2007 - 08.2014] USE20 BLACK,TRIM2# |
55981-53010-C0 |
US $24.46 |
||
|
73900
|
73900
73900-53010-C0 Air Bag Assy, Instrument Panel, Lower No.1[12.2007 - 08.2014] USE20..RHD BLACK,TRIM2# |
73900-53010-C0 |
US $476.10 |
||
|
73960A
|
73960A
73960-53010 Air Bag Assy, Instrument Panel Passenger W/o Door[12.2007 - 09.2013] USE20..RHD |
73960-53010 |
US $1,124.03 |
||
| replacement | |||||
|
73960A
|
73960A
73960-53011 Air Bag Assy, Instrument Panel Passenger W/o Door[12.2007 - 09.2013] USE20..RHD |
73960-53011 |
US $1,121.12 |
||
|
73960A
|
73960A
73960-53011 Air Bag Assy, Instrument Panel Passenger W/o Door[10.2013 -] USE20..RHD |
73960-53011 |
US $1,121.12 |
||
|
73990
|
73990
73990-53010-C0 Air Bag Assy, Instrument Panel, Lower No.2[12.2007 - 08.2014] USE20..RHD BLACK,TRIM2# |
73990-53010-C0 |
US $349.44 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
US $1.43 |
||
|
9011908225
|
9011908225
90119-08225
BOLT
|
90119-08225 |
— | ||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9017906292
|
9017906292
90179-06292 NUT |
90179-06292 |
US $1.79 |
||
|
9017906323
|
9017906323
90179-06323 Nut |
90179-06323 |
US $1.97 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.91 |
||
|
9090119031
|
9090119031
90901-19031 New Genuine Part |
90901-19031 |
US $1.02 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
||
|
9155380812
|
9155380812
91553-80812 New Genuine Part |
91553-80812 |
US $1.43 |
||
|
9163160816
|
9163160816
91631-60816 BOLT |
91631-60816 |
from US $1.05 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
