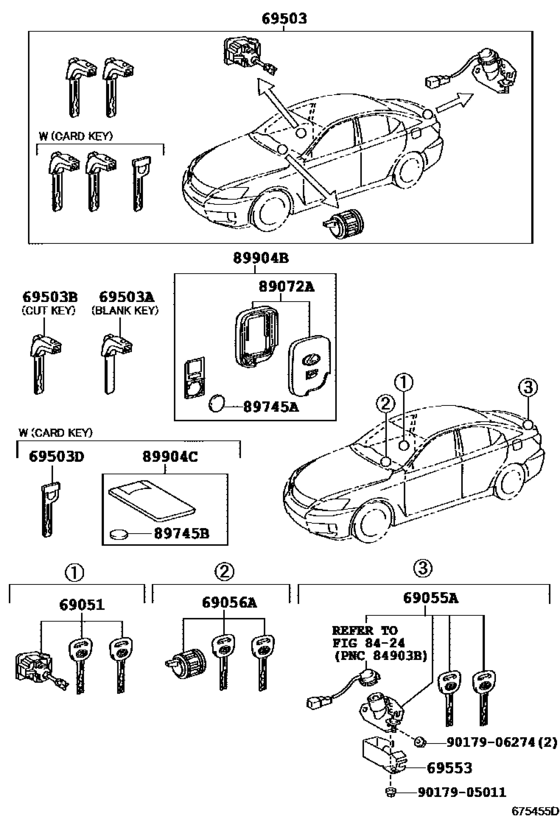

Lock Cylinder Set ([12.2007 - ] (0712- )RHD) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-50180
Cylinder & Key Set, Door Lock, Rh
[12.2007 -] USE20..RHD |
69051-50180 |
— | ||
|
69055A
|
69055A
69055-53050 Cylinder & Key Set, Luggage Compartment LockLUGGAGE COMPARTMENT LOCK [12.2007 -] USE20 |
69055-53050 |
US $116.48 |
||
|
69056A
|
69056A
69056-50160 Cylinder & Key Set, Glove Compartment LockGLOVE COMPARTMENT LOCK [12.2007 -] USE20 |
69056-50160 |
US $94.64 |
||
|
69503
|
69503
69005-53300 Cylinder Set, Lock[12.2007 - 08.2008] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC |
69005-53300 |
US $238.78 |
||
| replacement | |||||
|
69503
|
69503
69005-53340 Cylinder Set, Lock[12.2007 - 08.2008] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC |
69005-53340 |
US $232.96 |
||
|
69503
|
69503
69005-53310
Cylinder Set, Lock
[12.2007 -] USE20..RHD |
69005-53310 |
— | ||
| replacement | |||||
|
69503
|
69503
69005-53350
Cylinder Set, Lock
[12.2007 -] USE20..RHD |
69005-53350 |
— | ||
|
69503
|
69503
69005-53350
Cylinder Set, Lock
[08.2008 -] USE20..RHD NEW ZEALAND SPEC&WITH(CARD KEY); USE20..RHD AUSTRALIA SPEC&WITH(CARD KEY); USE20..RHD WITH(CARD KEY) |
69005-53350 |
— | ||
|
69503A
|
69503A
69515-50260 Key, BlankBLANK [12.2007 - 08.2014] USE20 BLANK KEY |
69515-50260 |
from US $54.09 |
||
|
69503B
|
69503B
69515-50240 Key, Cut[12.2007 - 08.2014] USE20 MASTER KEY |
69515-50240 |
US $127.92 |
||
|
69503D
|
69503D
69515-30330 Key, Cut(Card Key)[11.2009 -] USE20..RHD MASTER KEY,NEW ZEALAND SPEC&WITH(CARD KEY); USE20..RHD MASTER KEY,AUSTRALIA SPEC&WITH(CARD KEY); USE20 MASTER KEY,WITH(CARD KEY) |
69515-30330 |
US $116.44 |
||
|
69503D
|
69503D
69515-50220 Key, Cut(Card Key)[08.2008 - 10.2009] USE20..RHD MASTER KEY,NEW ZEALAND SPEC&WITH(CARD KEY); USE20..RHD MASTER KEY,AUSTRALIA SPEC&WITH(CARD KEY); USE20 MASTER KEY,WITH(CARD KEY) |
69515-50220 |
US $127.92 |
||
|
69553
|
69553
69553-50010 Protector, Luggage Compartment Key CylinderLUGGAGE COMPARTMENT KEY CYLINDER [12.2007 -] USE20 |
69553-50010 |
US $5.10 |
||
|
89072A
|
89072A
89072-53350
Housing Set, Door Control Transmitter
[04.2011 -] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC; USE20..RHD NEW ZEALAND SPEC&WITH(CARD KEY); USE20..RHD AUSTRALIA SPEC&WITH(CARD KEY) |
89072-53350 |
— | ||
|
89072A
|
89072A
89072-53391
Housing Set, Door Control Transmitter
[12.2007 - 08.2008] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC |
89072-53391 |
— | ||
|
89072A
|
89072A
89072-53401
Housing Set, Door Control Transmitter
[12.2007 - 08.2008] USE20 |
89072-53401 |
— | ||
|
89745A
|
89745A
89745-52020 Battery, Transmitter[12.2007 -] USE20 |
89745-52020 |
from US $7.88 |
||
|
89745B
|
89745B
89745-50030 Battery, Transmitter(Card Key)[08.2008 - 07.2010] USE20..RHD NEW ZEALAND SPEC&WITH(CARD KEY); USE20..RHD AUSTRALIA SPEC&WITH(CARD KEY) |
89745-50030 |
from US $8.36 |
||
|
89904B
|
89904B
89904-53060 Transmitter Sub-Assy, Electrical KeyELECTRICAL KEY [12.2007 - 08.2008] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC |
89904-53060 |
US $426.61 |
||
|
89904B
|
89904B
89904-53070
Transmitter Sub-Assy, Electrical Key
[12.2007 - 08.2008] USE20 |
89904-53070 |
— | ||
|
89904B
|
89904B
89904-53190
Transmitter Sub-Assy, Electrical Key
[08.2008 - 04.2011] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC; USE20..RHD NEW ZEALAND SPEC&WITH(CARD KEY); USE20..RHD AUSTRALIA SPEC&WITH(CARD KEY) |
89904-53190 |
— | ||
|
89904B
|
89904B
89904-53200
Transmitter Sub-Assy, Electrical Key
[08.2008 - 07.2009] USE20 |
89904-53200 |
— | ||
| replacement | |||||
|
89904B
|
89904B
89904-53230
Transmitter Sub-Assy, Electrical Key
[08.2008 - 07.2009] USE20 |
89904-53230 |
— | ||
|
89904B
|
89904B
89904-53230
Transmitter Sub-Assy, Electrical Key
[08.2009 -] USE20 |
89904-53230 |
— | ||
|
89904B
|
89904B
89904-53430
Transmitter Sub-Assy, Electrical Key
[04.2011 -] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC; USE20..RHD NEW ZEALAND SPEC&WITH(CARD KEY); USE20..RHD AUSTRALIA SPEC&WITH(CARD KEY) |
89904-53430 |
— | ||
|
89904C
|
89904C
89904-50480 Transmitter Sub-Assy, Electrical Key(Card Key)ELECTRICAL KEY(CARD KEY) [08.2008 - 08.2009] USE20..RHD NEW ZEALAND SPEC&WITH(CARD KEY); USE20..RHD AUSTRALIA SPEC&WITH(CARD KEY) |
89904-50480 |
US $432.43 |
||
| replacement | |||||
|
89904C
|
89904C
89904-50481 Transmitter Sub-Assy, Electrical Key(Card Key)[08.2008 - 08.2009] USE20..RHD NEW ZEALAND SPEC&WITH(CARD KEY); USE20..RHD AUSTRALIA SPEC&WITH(CARD KEY) |
89904-50481 |
US $432.43 |
||
|
89904C
|
89904C
89904-50500
Transmitter Sub-Assy, Electrical Key(Card Key)
[08.2008 - 08.2009] USE20 WITH(CARD KEY) |
89904-50500 |
— | ||
| replacement | |||||
|
89904C
|
89904C
89904-53312
Transmitter Sub-Assy, Electrical Key(Card Key)
[08.2008 - 08.2009] USE20 WITH(CARD KEY) |
89904-53312 |
— | ||
|
89904C
|
89904C
89904-53130
Transmitter Sub-Assy, Electrical Key(Card Key)
[08.2009 - 07.2010] USE20..RHD NEW ZEALAND SPEC&WITH(CARD KEY); USE20..RHD AUSTRALIA SPEC&WITH(CARD KEY) |
89904-53130 |
— | ||
| replacement | |||||
|
89904C
|
89904C
89904-53132
Transmitter Sub-Assy, Electrical Key(Card Key)
[08.2009 - 07.2010] USE20..RHD NEW ZEALAND SPEC&WITH(CARD KEY); USE20..RHD AUSTRALIA SPEC&WITH(CARD KEY) |
89904-53132 |
— | ||
|
89904C
|
89904C
89904-53131
Transmitter Sub-Assy, Electrical Key(Card Key)
[08.2010 -] USE20..RHD NEW ZEALAND SPEC&WITH(CARD KEY); USE20..RHD AUSTRALIA SPEC&WITH(CARD KEY) |
89904-53131 |
— | ||
| replacement | |||||
|
89904C
|
89904C
89904-53132
Transmitter Sub-Assy, Electrical Key(Card Key)
[08.2010 -] USE20..RHD NEW ZEALAND SPEC&WITH(CARD KEY); USE20..RHD AUSTRALIA SPEC&WITH(CARD KEY) |
89904-53132 |
— | ||
|
89904C
|
89904C
89904-53150
Transmitter Sub-Assy, Electrical Key(Card Key)
[08.2009 - 08.2010] USE20 WITH(CARD KEY) |
89904-53150 |
— | ||
| replacement | |||||
|
89904C
|
89904C
89904-53151
Transmitter Sub-Assy, Electrical Key(Card Key)
[08.2009 - 08.2010] USE20 WITH(CARD KEY) |
89904-53151 |
— | ||
|
89904C
|
89904C
89904-53420
Transmitter Sub-Assy, Electrical Key(Card Key)
[08.2010 - 06.2011] USE20 WITH(CARD KEY) |
89904-53420 |
— | ||
| replacement | |||||
|
89904C
|
89904C
89904-53421
Transmitter Sub-Assy, Electrical Key(Card Key)
[08.2010 - 06.2011] USE20 WITH(CARD KEY) |
89904-53421 |
— | ||
|
9017905011
|
9017905011
90179-05011 NUT |
90179-05011 |
from US $0.76 |
||
| replacement | |||||
|
9017905011
|
9017905011
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
