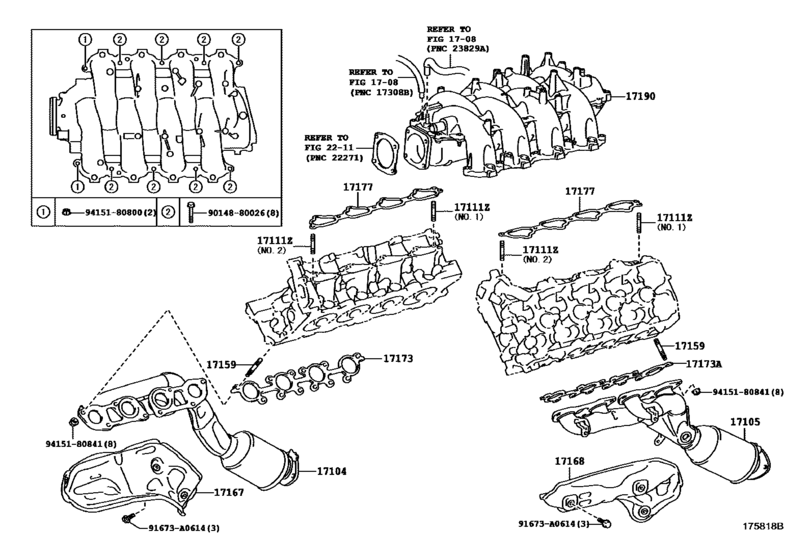

Manifold ([12.2007 - ] (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17104
|
17104
17104-38060 Manifold Sub-Assy, Exhaust, Rh[12.2007 -] 2URGSE..USE20 *114=TOYOTA/R38060/Y |
17104-38060 |
US $3,123.12 |
||
|
17105
|
17105
17105-38060 Manifold Sub-Assy, Exhaust, Lh[12.2007 -] 2URGSE..USE20 *114=TOYOTA/L38060/Y |
17105-38060 |
US $3,123.12 |
||
|
17111Z
|
17111Z
90126-06028 Bolt, Stud(For Oil Pan)[12.2007 -] 2URGSE..USE20 NO.1 |
90126-06028 |
from US $0.63 |
||
|
17111Z
|
17111Z
90126-08026 Bolt, Stud(For Intake Manifold To Cylinder Head)[12.2007 -] 2URGSE..USE20 NO.2 |
90126-08026 |
from US $2.28 |
||
|
17159
|
17159
90126-08052 Bolt, Stud(For Oil Pan)[12.2007 -] 2URGSE..USE20 |
90126-08052 |
from US $0.76 |
||
|
17167
|
17167
17167-38100 Insulator, Exhaust Manifold Heat, No.1[12.2007 -] 2URGSE..USE20 |
17167-38100 |
US $43.97 |
||
|
17168
|
17168
17168-38110 Insulator, Exhaust Manifold Heat, No.2[12.2007 -] 2URGSE..USE20 |
17168-38110 |
US $41.20 |
||
|
17173
|
17173
17173-38050 Gasket, Exhaust Manifold To Head[12.2007 -] 2URGSE..USE20 |
17173-38050 |
from US $49.06 |
||
|
17173A
|
17173A
17173-38050 Gasket, Exhaust Manifold To Head[12.2007 -] 2URGSE..USE20 |
17173-38050 |
from US $49.06 |
||
|
17177
|
17177
17177-38040 Gasket, Intake Manifold To Head, No.1[12.2007 -] 2URGSE..USE20 |
17177-38040 |
from US $11.08 |
||
|
17190
|
17190
17190-38020 Tank Assy, Intake Air Surge[12.2007 - 08.2014] 2URGSE..USE20 |
17190-38020 |
US $1,448.72 |
||
|
91673A0614
|
91673A0614
91673-A0614 BOLT, FLANGE W-WASER |
91673-A0614 |
from US $0.63 |
||
|
9014880026
|
9014880026
90148-80026 Bolt |
90148-80026 |
US $6.47 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
||
|
9415180841
|
9415180841
94151-80841 FLANGE NUT |
94151-80841 |
from US $0.74 |
