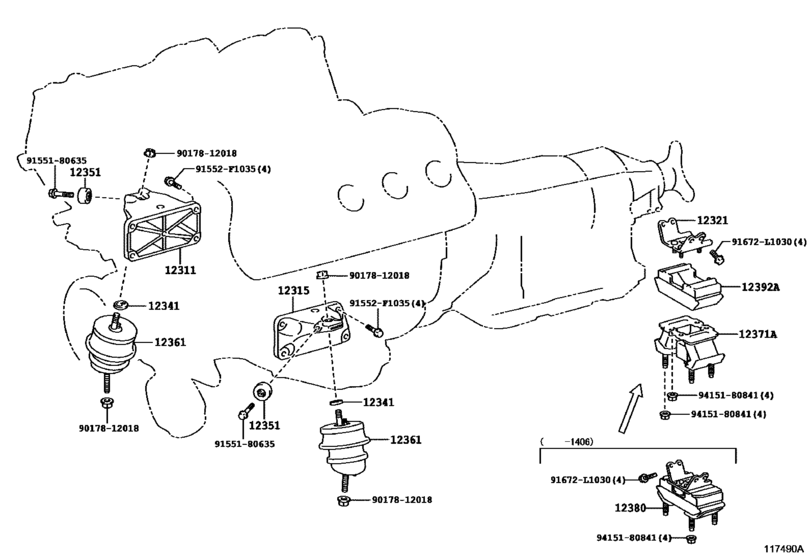

Mounting ([12.2007 - ] (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-38090 Bracket, Engine Mounting, Front No.1 Rh[12.2007 -] 2URGSE..USE20 |
12311-38090 |
US $54.38 |
||
|
12315
|
12315
12315-38070 Bracket, Engine Mounting, Front No.1 Lh[12.2007 -] 2URGSE..USE20 |
12315-38070 |
US $57.80 |
||
|
12321
|
12321
12321-38020 Bracket, Engine Mounting, Rear, No.1[06.2014 -] 2URGSE..USE20 |
12321-38020 |
US $10.13 |
||
|
12341
|
12341
12319-38010 Spacer, Engine Mounting[12.2007 -] 2URGSE..USE20 |
12319-38010 |
US $4.30 |
||
|
12351
|
12351
12351-38020 Damper, Engine Mounting[12.2007 -] 2URGSE..USE20 |
12351-38020 |
US $16.07 |
||
|
12361
|
12361
12361-38180
Insulator, Engine Mounting, Front
[12.2007 - 05.2014] 2URGSE..USE20 |
12361-38180 |
— | ||
| replacements | |||||
|
12361
|
12361
12361-38230
Insulator, Engine Mounting, Front
[12.2007 - 05.2014] 2URGSE..USE20 |
12361-38230 |
— | ||
| replacement | |||||
|
12361
|
12361
12361-38320 Insulator, Engine Mounting, Front[12.2007 - 05.2014] 2URGSE..USE20 |
12361-38320 |
from US $119.72 |
||
|
12361
|
12361
12361-38320 Insulator, Engine Mounting, Front[12.2007 - 05.2014] 2URGSE..USE20 |
12361-38320 |
from US $119.72 |
||
|
12361
|
12361
12361-38230
Insulator, Engine Mounting, Front
[06.2014 -] 2URGSE..USE20 |
12361-38230 |
— | ||
| replacement | |||||
|
12361
|
12361
12361-38320 Insulator, Engine Mounting, Front[06.2014 -] 2URGSE..USE20 |
12361-38320 |
from US $119.72 |
||
|
12371A
|
12371A
12371-38110 Insulator, Engine Mounting, Rear[06.2014 -] 2URGSE..USE20 |
12371-38110 |
from US $61.41 |
||
|
12380
|
12380
12380-38010
Insulator Assy, Engine Mounting, Rear
[12.2007 - 06.2014] 2URGSE..USE20 |
12380-38010 |
— | ||
| replacements | |||||
|
12380
|
12380
12371-38110 Insulator, Engine Mounting, Rear[12.2007 - 06.2014] 2URGSE..USE20 |
12371-38110 |
from US $61.41 |
||
|
12380
|
12380
12321-38020 Bracket, Engine Mounting, Rear, No.1[12.2007 - 06.2014] 2URGSE..USE20 |
12321-38020 |
US $10.13 |
||
|
12380
|
12380
12392-38020 Insulator, Engine Mounting Heat, Rear[12.2007 - 06.2014] 2URGSE..USE20 |
12392-38020 |
US $14.36 |
||
|
12380
|
12380
94151-80841 FLANGE NUT[12.2007 - 06.2014] 2URGSE..USE20 |
94151-80841 |
from US $0.74 |
||
|
12392A
|
12392A
12392-38020 Insulator, Engine Mounting Heat, Rear[06.2014 -] 2URGSE..USE20 |
12392-38020 |
US $14.36 |
||
|
91552F1035
|
91552F1035
91552-F1035 BOLT FLANGE |
91552-F1035 |
US $0.96 |
||
|
91672L1030
|
91672L1030
91672-L1030 New Genuine Part |
91672-L1030 |
US $2.15 |
||
|
9017812018
|
9017812018
90178-12018 NUT FLANGE |
90178-12018 |
from US $1.08 |
||
|
9155180635
|
9155180635
91551-80635 Bolt(For Head To Camshaft Bearing Cap) |
91551-80635 |
from US $0.76 |
||
|
9415180841
|
9415180841
94151-80841 FLANGE NUT |
94151-80841 |
from US $0.74 |
||
