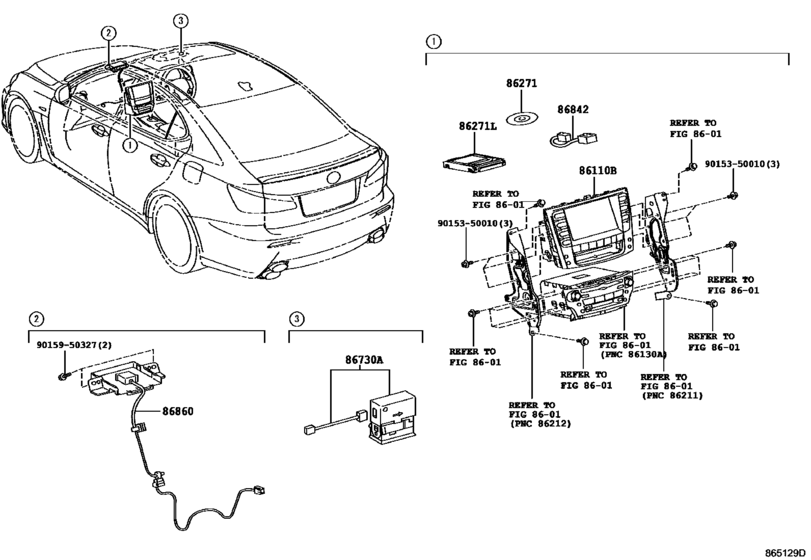

Navigation & Front Monitor Display ([08.2012 - ] AUSTRALIA SPEC;NEW ZEALAND SPEC (1208- )RHD) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86110B
|
86110B
86110-53070
Multi-Display Assy
[08.2012 - 08.2014] USE20..RHD DENSO |
86110-53070 |
— | ||
|
86110B
|
86110B
86110-53080
Multi-Display Assy
[08.2012 - 08.2014] USE20..RHD DENSO,NEW ZEALAND SPEC; USE20..RHD DENSO,AUSTRALIA SPEC |
86110-53080 |
— | ||
|
86271
|
86271
86271-47072
Disc, Disc Player
[10.2010 - 09.2011] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC |
86271-47072 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-47073
Disc, Disc Player
[10.2010 - 09.2011] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC |
86271-47073 |
— | ||
|
86271
|
86271
86271-47073
Disc, Disc Player
[09.2011 - 08.2012] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC |
86271-47073 |
— | ||
|
86271
|
86271
86271-53012
Disc, Disc Player
[12.2007 - 10.2008] USE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86271-53012 |
— | ||
|
86271
|
86271
86271-53013
Disc, Disc Player
[10.2008 - 08.2009] USE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86271-53013 |
— | ||
|
86271
|
86271
86271-60180
Disc, Disc Player
[08.2009 - 10.2009] USE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-W ITH(GPS NAVIGATION); USE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WIT H(GPS NAVIGATION) |
86271-60180 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-47073
Disc, Disc Player
[08.2009 - 10.2009] USE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-W ITH(GPS NAVIGATION); USE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WIT H(GPS NAVIGATION) |
86271-47073 |
— | ||
|
86271
|
86271
86271-60181
Disc, Disc Player
[10.2009 - 08.2010] USE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-W ITH(GPS NAVIGATION); USE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WIT H(GPS NAVIGATION) |
86271-60181 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-47073
Disc, Disc Player
[10.2009 - 08.2010] USE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-W ITH(GPS NAVIGATION); USE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WIT H(GPS NAVIGATION) |
86271-47073 |
— | ||
|
86271
|
86271
86807-06010
Disc, Disc Player
[10.2013 - 08.2014] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC |
86807-06010 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-06013
Disc, Disc Player
[10.2013 - 08.2014] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC |
86807-06013 |
— | ||
|
86271
|
86271
86807-30120
Disc, Disc Player
[09.2012 - 09.2013] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC |
86807-30120 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-06013
Disc, Disc Player
[09.2012 - 09.2013] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC |
86807-06013 |
— | ||
|
86271L
|
86271L
86271-30712
Hard Disc
[08.2012 - 01.2013] USE20..RHD; USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..LHD AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
86271-30712 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-30718
Hard Disc
[08.2012 - 01.2013] USE20..RHD; USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..LHD AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
86271-30718 |
— | ||
|
86271L
|
86271L
86271-30713
Hard Disc
[01.2013 - 07.2013] USE20..RHD; USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..LHD AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
86271-30713 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-30718
Hard Disc
[01.2013 - 07.2013] USE20..RHD; USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..LHD AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
86271-30718 |
— | ||
|
86271L
|
86271L
86271-30714
Hard Disc
[07.2013 - 01.2014] USE20..RHD; USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86271-30714 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-30718
Hard Disc
[07.2013 - 01.2014] USE20..RHD; USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86271-30718 |
— | ||
|
86271L
|
86271L
86271-30715
Hard Disc
[01.2014 - 08.2014] USE20; USE20 AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86271-30715 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-30718
Hard Disc
[01.2014 - 08.2014] USE20; USE20 AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86271-30718 |
— | ||
|
86271L
|
86271L
86271-30730
Hard Disc
[08.2012 - 09.2012] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC |
86271-30730 |
— | ||
| replacement | |||||
|
86271L
|
86271L
86271-30731
Hard Disc
[08.2012 - 09.2012] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC |
86271-30731 |
— | ||
|
86271L
|
86271L
86271-30731
Hard Disc
[09.2012 - 09.2013] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC |
86271-30731 |
— | ||
|
86271L
|
86271L
86271-30732
Hard Disc
[09.2013 - 08.2014] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC |
86271-30732 |
— | ||
|
86730A
|
86730A
86730-53010 Microphone Assy, Telephone[12.2007 - 08.2009] USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86730-53010 |
US $101.92 |
||
|
86730A
|
86730A
86730-53050 Microphone Assy, TelephoneTELEPHONE [08.2009 - 08.2014] USE20..RHD; USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC |
86730-53050 |
US $94.64 |
||
|
86842
|
86842
86842-53040
Wire, Navigation, No.1
[12.2007 - 08.2009] USE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER,NO.1; USE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER,NO.1; USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER,NO.1 |
86842-53040 |
— | ||
|
86842
|
86842
86842-53050
Wire, Navigation, No.1
[12.2007 - 08.2009] USE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER,NO.2; USE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER,NO.2; USE20 AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER,NO.2 |
86842-53050 |
— | ||
|
86842
|
86842
86842-53080
Wire, Navigation, No.1
[08.2009 - 08.2010] USE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-W ITH(GPS NAVIGATION); USE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WIT H(GPS NAVIGATION) |
86842-53080 |
— | ||
|
86842
|
86842
86842-53100
Wire, Navigation, No.1
[08.2009 - 08.2010] USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVI) |
86842-53100 |
— | ||
|
86842
|
86842
86842-53200 Wire, Navigation, No.1[08.2012 - 08.2014] USE20..RHD |
86842-53200 |
US $48.78 |
||
|
86860
|
86860
86860-53040
Antenna Assy, Navigation
[12.2007 - 08.2010] USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86860-53040 |
— | ||
|
86860
|
86860
86860-53090
Antenna Assy, Navigation
[08.2012 - 08.2014] USE20..RHD |
86860-53090 |
— | ||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.68 |
||
