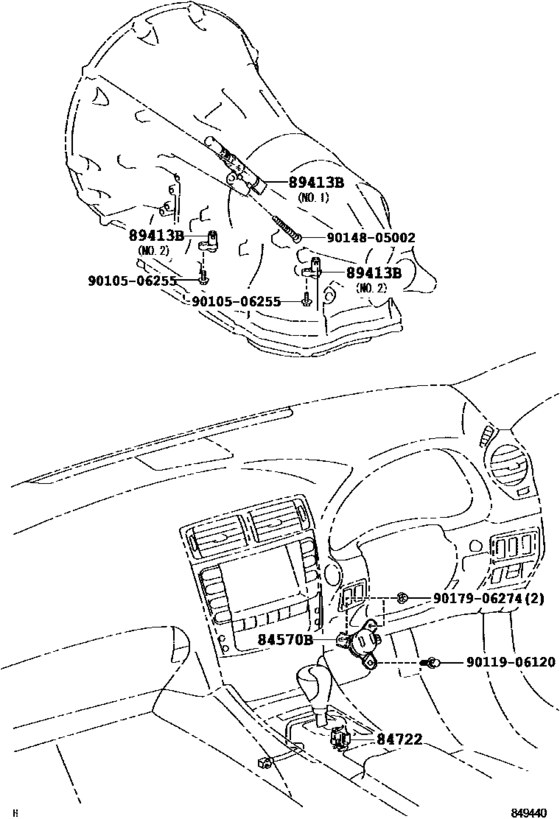

Overdrive & Electronic Controlled Transmission ([12.2007 - ] (0712- )RHD) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84570B
|
84570B
84570-30090 Switch Assy, Kick Down[12.2007 -] USE20..RHD |
84570-30090 |
US $52.53 |
||
|
84722
|
84722
84722-20230 Switch, Transmission Control[12.2007 - 08.2014] USE20..RHD |
84722-20230 |
US $29.27 |
||
|
89413B
|
89413B
89413-50010 Sensor, Transmission Revolution[12.2007 - 08.2014] USE20 NO.1 |
89413-50010 |
US $90.20 |
||
|
89413B
|
89413B
89413-50020 Sensor, Transmission Revolution[12.2007 - 08.2014] USE20 NO.2 |
89413-50020 |
US $70.73 |
||
|
9010506255
|
9010506255
90105-06255 BOLT FLANGE |
90105-06255 |
US $0.73 |
||
|
9011906120
|
9011906120
90119-06120 BOLT |
90119-06120 |
US $1.25 |
||
|
9014805002
|
9014805002
90148-05002 SCREW HEXALOBULAR |
90148-05002 |
US $0.73 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
