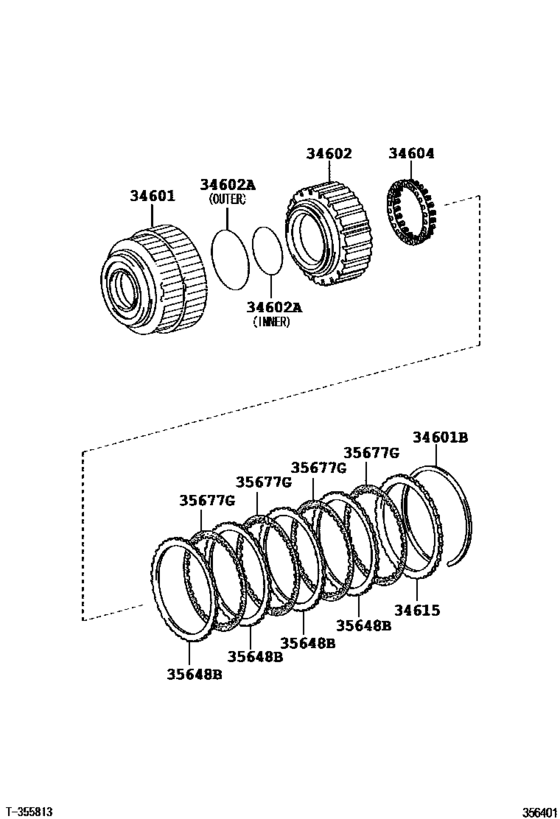

Overdrive Gear (Atm) ([12.2007 - ] AA80E (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34601
|
34601
35601-50050 Drum Sub-Assy, Overdrive Direct Clutch[12.2007 -] USE20 |
35601-50050 |
US $248.98 |
||
|
34601B
|
34601B
90521-99141 Ring, Shaft Snap (For Overdrive Direct Clutch)[12.2007 -] USE20 |
90521-99141 |
US $3.93 |
||
|
34602
|
34602
35612-50040 Piston Sub-Assy, Overdrive Direct Clutch[12.2007 -] USE20 |
35612-50040 |
US $64.21 |
||
|
34602A
|
34602A
90301-77002 Ring, O (For Overdrive Direct Clutch Piston)[12.2007 -] USE20 INNER |
90301-77002 |
US $2.18 |
||
|
34602A
|
34602A
90301-99086 Ring, O (For Overdrive Direct Clutch Piston)[12.2007 -] USE20 OUTER |
90301-99086 |
US $2.62 |
||
|
34604
|
34604
34604-50020 Spring Sub-Assy, Overdrive Clutch Return[12.2007 -] USE20 |
34604-50020 |
US $17.47 |
||
|
34615
|
34615
34615-50060 Flange, Overdrive Clutch[12.2007 -] USE20 T=4.0 |
34615-50060 |
US $39.75 |
||
|
34615
|
34615
34615-50070 Flange, Overdrive Clutch[12.2007 -] USE20 T=4.1 |
34615-50070 |
US $39.75 |
||
|
34615
|
34615
34615-50080 Flange, Overdrive Clutch[12.2007 -] USE20 T=4.2 |
34615-50080 |
US $39.75 |
||
|
34615
|
34615
34615-50090 Flange, Overdrive Clutch[12.2007 -] USE20 T=4.3 |
34615-50090 |
US $39.75 |
||
|
34615
|
34615
34615-50100 Flange, Overdrive Clutch[12.2007 -] USE20 T=4.4 |
34615-50100 |
US $39.75 |
||
|
34615
|
34615
34615-50110 Flange, Overdrive Clutch[12.2007 -] USE20 T=4.5 |
34615-50110 |
US $39.75 |
||
|
34615
|
34615
34615-50120 Flange, Overdrive Clutch[12.2007 -] USE20 T=4.6 |
34615-50120 |
US $39.75 |
||
|
35648B
|
35648B
35648-50020 Plate, Clutch (For Overdrive Brake)[12.2007 -] USE20 |
35648-50020 |
US $22.57 |
||
|
35677G
|
35677G
35677-50070 Disc, Clutch, No.3 (For Overdrive)[12.2007 - 07.2009] USE20 |
35677-50070 |
US $40.48 |
||
| replacement | |||||
|
35677G
|
35677G
35677-50071 Disc, Clutch, No.3 (For Overdrive)CLUTCH, NO.3 (FOR OVERDRIVE) [12.2007 - 07.2009] USE20 |
35677-50071 |
from US $27.22 |
||
|
35677G
|
35677G
35677-50071 Disc, Clutch, No.3 (For Overdrive)CLUTCH, NO.3 (FOR OVERDRIVE) [07.2009 -] USE20 |
35677-50071 |
from US $27.22 |
||
