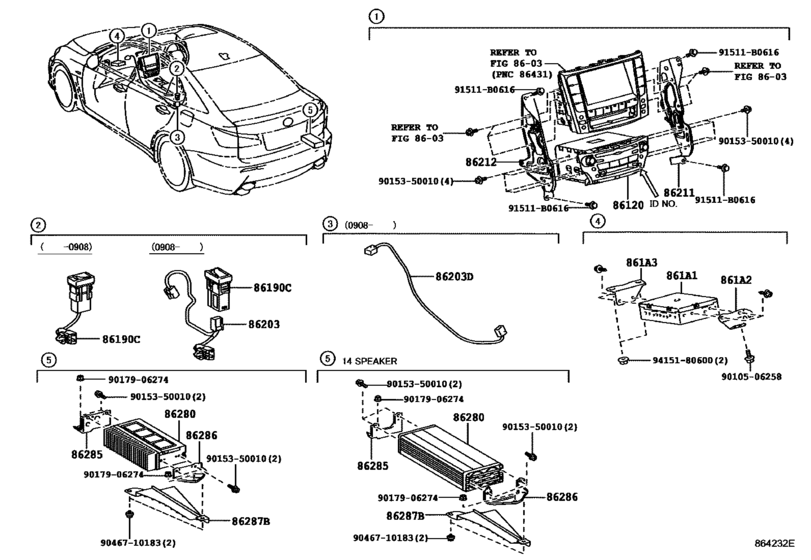

Radio Receiver & Amplifier & Condenser ([12.2007 - 08.2012] (0712-1208)RHD) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
861A1
|
861A1
861A0-77010 Computer Assy, Multi-Media Interface[08.2009 - 08.2010] USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
861A0-77010 |
US $315.95 |
||
|
861A2
|
861A2
861A2-53020 Bracket, Multi-Media Interface, No.1MULTI-MEDIA INTERFACE, NO.1 [08.2009 - 08.2010] USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
861A2-53020 |
US $4.66 |
||
|
861A3
|
861A3
861A3-53020 Bracket, Multi-Media Interface, No.2MULTI-MEDIA INTERFACE, NO.2 [08.2009 - 08.2010] USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
861A3-53020 |
US $5.10 |
||
|
86120
|
86120
86120-53290
Receiver Assy, Radio
[12.2007 - 08.2008] USE20..RHD PIONEER, ID=P2806,NEW ZEALAND SPEC; USE20..RHD PIONEER, ID=P2806,AUSTRALIA SPEC; USE20..RHD PIONEER, ID=P2806,NEW ZEALAND SPEC;AUSTRALIA SPEC |
86120-53290 |
— | ||
|
86120
|
86120
86120-53300
Receiver Assy, Radio
[12.2007 - 08.2008] USE20..RHD PIONEER, ID=P2805,NEW ZEALAND SPEC&AUDIO-AM/FM CD CHANGER *MAR 14SPEAKER; USE20..RHD PIONEER, ID=P2805,AUSTRALIA SPEC&AUDIO-AM/FM CD CHANGER *MAR 14SPEAKER; USE20..RHD PIONEER, ID=P2805,NEW ZEALAND SPEC&AUDIO-AM/FM CD CHANGE |
86120-53300 |
— | ||
|
86120
|
86120
86120-53310
Receiver Assy, Radio
[12.2007 - 08.2008] USE20..RHD PIONEER, ID=P7500,NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD PIONEER, ID=P7500,AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD PIONEER, ID=P7500,NEW ZEALAND SPEC&AUDIO-AM/FM DVD C |
86120-53310 |
— | ||
|
86120
|
86120
86120-53370
Receiver Assy, Radio
[12.2007 - 08.2008] USE20..RHD PIONEER, ID=P3801; USE20..RHD PIONEER, ID=P3801,AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86120-53370 |
— | ||
|
86120
|
86120
86120-53380
Receiver Assy, Radio
[12.2007 - 08.2008] USE20..RHD PIONEER, ID=P3800,AUDIO-AM/FM CD CHANGER *MAR 14SPEAKER |
86120-53380 |
— | ||
|
86120
|
86120
86120-53390
Receiver Assy, Radio
[12.2007 - 08.2008] USE20..RHD PIONEER, ID=P8601,AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86120-53390 |
— | ||
|
86120
|
86120
86120-53550
Receiver Assy, Radio
[08.2008 - 08.2009] USE20..RHD PIONEER, ID=P2848,NEW ZEALAND SPEC; USE20..RHD PIONEER, ID=P2848,AUSTRALIA SPEC; USE20..RHD PIONEER, ID=P2848,NEW ZEALAND SPEC;AUSTRALIA SPEC |
86120-53550 |
— | ||
|
86120
|
86120
86120-53630
Receiver Assy, Radio
[08.2008 - 08.2009] USE20..RHD PIONEER, ID=P3819; USE20..RHD PIONEER, ID=P3819,AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86120-53630 |
— | ||
|
86120
|
86120
86120-53820
Receiver Assy, Radio
[08.2008 - 08.2009] USE20..RHD PIONEER, ID=P8616,AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86120-53820 |
— | ||
|
86120
|
86120
86120-53880
Receiver Assy, Radio
[08.2008 - 08.2009] USE20..RHD PIONEER, ID=P7537,NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD PIONEER, ID=P7537,AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD PIONEER, ID=P7537,NEW ZEALAND SPEC&AUDIO-AM/FM DVD C |
86120-53880 |
— | ||
|
86120
|
86120
86120-53B30
Receiver Assy, Radio
[08.2009 - 08.2010] USE20..RHD PIONEER, ID=P3831; USE20..RHD PIONEER, ID=P3831,AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86120-53B30 |
— | ||
|
86120
|
86120
86120-53B90
Receiver Assy, Radio
[08.2009 - 08.2010] USE20..RHD PIONEER, ID=P2879,NEW ZEALAND SPEC; USE20..RHD PIONEER, ID=P2879,AUSTRALIA SPEC; USE20..RHD PIONEER, ID=P2879,NEW ZEALAND SPEC;AUSTRALIA SPEC |
86120-53B90 |
— | ||
|
86120
|
86120
86120-53D10
Receiver Assy, Radio
[08.2009 - 08.2010] USE20..RHD PIONEER, ID=P8640,AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86120-53D10 |
— | ||
|
86120
|
86120
86120-53D50
Receiver Assy, Radio
[08.2009 - 08.2010] USE20..RHD PIONEER, ID=P7590,NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD PIONEER, ID=P7590,AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD PIONEER, ID=P7590,NEW ZEALAND SPEC&AUDIO-AM/FM DVD C |
86120-53D50 |
— | ||
|
86190C
|
86190C
86190-53020 Adapter Assy, Stereo Jack, No.1[12.2007 - 08.2008] USE20 |
86190-53020 |
US $171.81 |
||
|
86190C
|
86190C
86190-53030 Adapter Assy, Stereo Jack, No.1[08.2008 - 08.2009] USE20 |
86190-53030 |
US $142.69 |
||
|
86190C
|
86190C
86190-53040 Adapter Assy, Stereo Jack, No.1STEREO JACK, NO.1 [08.2009 - 08.2014] USE20 |
86190-53040 |
US $113.57 |
||
|
86203
|
86203
86203-53010 Wire, RadioRADIO [08.2009 - 08.2014] USE20 |
86203-53010 |
US $13.40 |
||
|
86203D
|
86203D
86203-53050 Wire, Stereo Component, No.1STEREO COMPONENT, NO.1 [08.2009 - 08.2012] USE20..RHD |
86203-53050 |
US $15.87 |
||
|
86203D
|
86203D
86203-53200 Wire, Stereo Component, No.1[08.2012 - 08.2014] USE20..RHD |
86203-53200 |
US $77.17 |
||
|
86211
|
86211
86211-53020 Bracket, Radio, No.1[12.2007 - 08.2008] USE20 |
86211-53020 |
US $12.67 |
||
| replacement | |||||
|
86211
|
86211
86211-53030 Bracket, Radio, No.1[12.2007 - 08.2008] USE20 |
86211-53030 |
US $8.74 |
||
|
86211
|
86211
86211-53030 Bracket, Radio, No.1[08.2008 - 08.2012] USE20..RHD |
86211-53030 |
US $8.74 |
||
|
86211
|
86211
86211-53070 Bracket, Radio, No.1[08.2012 - 08.2014] USE20..RHD |
86211-53070 |
US $8.74 |
||
|
86212
|
86212
86212-53020 Bracket, Radio, No.2[12.2007 - 08.2008] USE20 |
86212-53020 |
US $12.67 |
||
| replacement | |||||
|
86212
|
86212
86212-53030 Bracket, Radio, No.2[12.2007 - 08.2008] USE20 |
86212-53030 |
US $9.32 |
||
|
86212
|
86212
86212-53030 Bracket, Radio, No.2[08.2008 - 08.2012] USE20..RHD |
86212-53030 |
US $9.32 |
||
|
86212
|
86212
86212-53070 Bracket, Radio, No.2[08.2012 - 08.2014] USE20..RHD |
86212-53070 |
US $8.74 |
||
|
86280
|
86280
86280-0W550 Amplifier Assy, Stereo Component[12.2007 - 08.2008] USE20 AUDIO-AM/FM CD CHANGER *MAR 14SPEAKER |
86280-0W550 |
US $2,096.64 |
||
|
86280
|
86280
86280-0W750 Amplifier Assy, Stereo ComponentSTEREO COMPONENT [08.2009 - 08.2010] USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86280-0W750 |
US $1,630.72 |
||
|
86280
|
86280
86280-0WB00 Amplifier Assy, Stereo Component[08.2012 -] USE20..RHD |
86280-0WB00 |
US $1,761.76 |
||
|
86280
|
86280
86280-53110 Amplifier Assy, Stereo Component[12.2007 - 08.2009] USE20 |
86280-53110 |
US $1,616.16 |
||
|
86280
|
86280
86280-53140
Amplifier Assy, Stereo Component
[08.2009 - 08.2010] USE20..RHD |
86280-53140 |
— | ||
|
86285
|
86285
86285-53040 Bracket, Amplifier, No.1[12.2007 - 08.2009] USE20 |
86285-53040 |
US $14.71 |
||
|
86285
|
86285
86285-53050 Bracket, Amplifier, No.1[12.2007 - 08.2008] USE20 AUDIO-AM/FM CD CHANGER *MAR 14SPEAKER |
86285-53050 |
US $13.98 |
||
|
86285
|
86285
86285-53060 Bracket, Amplifier, No.1AMPLIFIER, NO.1 [08.2009 - 08.2010] USE20..RHD |
86285-53060 |
US $10.05 |
||
|
86285
|
86285
86285-53070 Bracket, Amplifier, No.1AMPLIFIER, NO.1 [08.2009 - 08.2010] USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86285-53070 |
US $9.32 |
||
|
86286
|
86286
86286-53040 Bracket, Amplifier, No.2[12.2007 - 08.2009] USE20 |
86286-53040 |
US $13.83 |
||
|
86286
|
86286
86286-53050 Bracket, Amplifier, No.2[12.2007 - 08.2008] USE20 AUDIO-AM/FM CD CHANGER *MAR 14SPEAKER |
86286-53050 |
US $14.56 |
||
|
86286
|
86286
86286-53080 Bracket, Amplifier, No.2AMPLIFIER, NO.2 [08.2009 - 08.2010] USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86286-53080 |
US $10.48 |
||
|
86286
|
86286
86286-53090 Bracket, Amplifier, No.2AMPLIFIER, NO.2 [08.2009 - 08.2010] USE20..RHD |
86286-53090 |
US $11.94 |
||
|
86287B
|
86287B
86287-53010 Cover, Amplifier[12.2007 -] USE20 |
86287-53010 |
US $18.05 |
||
|
91511B0616
|
91511B0616
91511-B0616 BOLTFLANGE |
91511-B0616 |
from US $0.84 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 New Genuine Part |
90080-10164 |
US $2.67 |
||
|
9010506258
|
9010506258
90105-06258 BOLT, WASHER BASED |
90105-06258 |
US $1.97 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9046710183
|
9046710183
90467-10183 Clip(For Luggage Compartment Trim Inner Cover) |
90467-10183 |
from US $0.82 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
