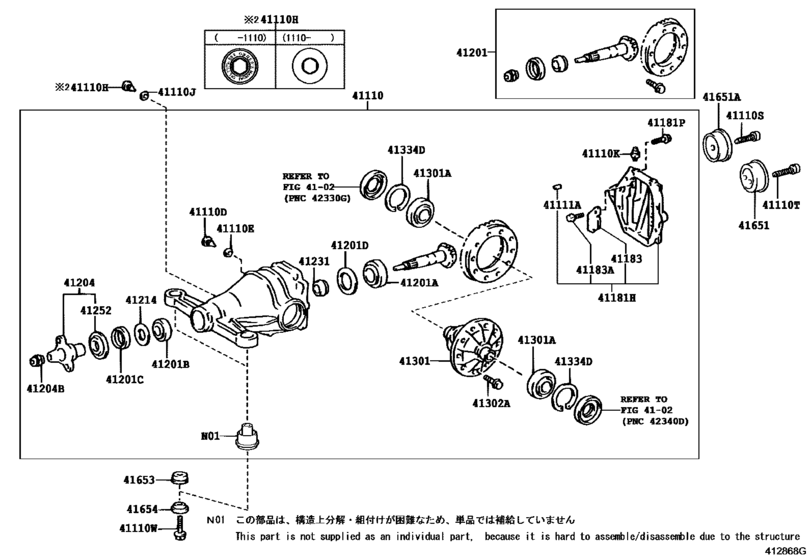

Rear Axle Housing & Differential ([12.2007 - ] (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41110
|
41110
41110-53270 Carrier Assy, Differential, Rear[12.2007 - 08.2009] USE20 *FGR=47:16=2.937 |
41110-53270 |
US $2,751.84 |
||
| replacement | |||||
|
41110
|
41110
41110-50263 Carrier Assy, Differential, Rear[12.2007 - 08.2009] USE20 *FGR=47:16=2.937 |
41110-50263 |
US $2,067.52 |
||
|
41110
|
41110
41110-53290 Carrier Assy, Differential, RearDIFFERENTIAL, REAR [08.2009 - 10.2011] USE20 *FGR=47:16=2.937 |
41110-53290 |
US $5,139.68 |
||
| replacement | |||||
|
41110
|
41110
41110-53292 Carrier Assy, Differential, Rear[08.2009 - 10.2011] USE20 *FGR=47:16=2.937 |
41110-53292 |
US $3,887.52 |
||
|
41110
|
41110
41110-53291 Carrier Assy, Differential, Rear[10.2011 - 05.2012] USE20 *FGR=47:16=2.937 |
41110-53291 |
US $5,139.68 |
||
| replacement | |||||
|
41110
|
41110
41110-53292 Carrier Assy, Differential, Rear[10.2011 - 05.2012] USE20 *FGR=47:16=2.937 |
41110-53292 |
US $3,887.52 |
||
|
41110
|
41110
41110-53292 Carrier Assy, Differential, Rear[05.2012 - 08.2014] USE20 *FGR=47:16=2.937 |
41110-53292 |
US $3,887.52 |
||
|
41110D
|
41110D
90341-18035 Plug, No.1 (With Magnet)[12.2007 -] USE20 |
90341-18035 |
from US $3.36 |
||
|
41110E
|
41110E
12157-10010 Gasket (For Drain Plug)[12.2007 -] USE20 |
12157-10010 |
from US $0.74 |
||
|
41110H
|
41110H
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [10.2011 - 08.2014] USE20 |
90341-18032 |
from US $3.76 |
||
|
41110H
|
41110H
90341-18066
Plug (For Rear Differential Filler)
[12.2007 - 10.2011] USE20 |
90341-18066 |
— | ||
| replacement | |||||
|
41110H
|
41110H
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [12.2007 - 10.2011] USE20 |
90341-18032 |
from US $3.76 |
||
|
41110J
|
41110J
12157-10010 Gasket (For Drain Plug)[12.2007 - 08.2014] USE20 |
12157-10010 |
from US $0.74 |
||
|
41110K
|
41110K
90930-03077 Plug, Breather (For Automatic Transmission Case)[12.2007 -] USE20 |
90930-03077 |
US $8.06 |
||
|
41110S
|
41110S
90110-14007 Bolt, No.1 (For Rear Differential Carrier Set)[12.2007 -] USE20 |
90110-14007 |
from US $1.63 |
||
|
41110T
|
41110T
90110-14007 Bolt, No.1 (For Rear Differential Carrier Set)[12.2007 -] USE20 |
90110-14007 |
from US $1.63 |
||
|
41110W
|
41110W
90109-12081 Bolt, No.4 (For Rear Differential Carrier Set)[12.2007 -] USE20 |
90109-12081 |
from US $2.93 |
||
|
41111A
|
41111A
90250-10017 Pin, Straight(For Clutch Housing Set)[12.2007 -] USE20 |
90250-10017 |
from US $1.41 |
||
|
41181H
|
41181H
41108-50050 Cover, Rear Differential Carrier[10.2011 -] USE20 |
41108-50050 |
US $155.79 |
||
|
41181H
|
41181H
41108-53040 Cover, Rear Differential Carrier[12.2007 - 08.2009] USE20 |
41108-53040 |
US $186.37 |
||
|
41181H
|
41181H
41108-53050 Cover, Rear Differential CarrierREAR DIFFERENTIAL CARRIER [08.2009 - 10.2011] USE20 |
41108-53050 |
US $196.56 |
||
|
41181P
|
41181P
90105-10417 Bolt (For Front Differential Carrier Cover Setting)[12.2007 -] USE20 |
90105-10417 |
US $3.05 |
||
|
41183
|
41183
41183-30020 Deflector, Rear Differential Breather Plug Oil[10.2011 -] USE20 |
41183-30020 |
US $3.93 |
||
|
41183
|
41183
41183-50010 Deflector, Rear Differential Breather Plug Oil[12.2007 - 08.2009] USE20 |
41183-50010 |
US $4.95 |
||
|
41183
|
41183
41183-53030 Deflector, Rear Differential Breather Plug OilREAR DIFFERENTIAL BREATHER PLUG OIL [08.2009 - 10.2011] USE20 |
41183-53030 |
US $5.68 |
||
|
41183A
|
41183A
91651-60614 Bolt[12.2007 -] USE20 |
91651-60614 |
from US $1.16 |
||
|
41201
|
41201
41201-59235 Final Gear Kit, Differential, Rear[12.2007 -] USE20 *FGR=47:16=2.937 |
41201-59235 |
from US $583.86 |
||
|
41201A
|
41201A
90366-45035 Bearing (For Rear Drive Pinion Rear)[12.2007 - 05.2012] USE20 |
90366-45035 |
US $48.60 |
||
|
41201A
|
41201A
90366-45056
Bearing (For Rear Drive Pinion Rear)
[05.2012 -] USE20 |
90366-45056 |
— | ||
| replacements | |||||
|
41201A
|
41201A
90366-45071 Taper roller bearing[05.2012 -] USE20 |
90366-45071 |
US $46.59 |
||
|
41201A
|
41201A
41231-24020 Spacer[05.2012 -] USE20 |
41231-24020 |
US $12.67 |
||
|
41201B
|
41201B
90366-34010 Bearing (For Rear Drive Pinion Front)[12.2007 - 05.2012] USE20 |
90366-34010 |
US $31.25 |
||
|
41201B
|
41201B
90366-34024 Bearing (For Rear Drive Pinion Front)[05.2012 -] USE20 |
90366-34024 |
US $38.44 |
||
|
41201C
|
41201C
90311-44005 Seal, Oil (For Rear Differential Carrier)[12.2007 -] USE20 |
90311-44005 |
from US $10.93 |
||
|
41201D
|
41201D
90201-70001
Washer, Plate (For Rear Differential Drive Pinion)
[12.2007 - 06.2011] USE20 T=1.87,MARK 87 |
90201-70001 |
— | ||
| replacement | |||||
|
41201D
|
41201D
90201-70002 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=1.87,MARK 87 |
90201-70002 |
from US $4.19 |
||
|
41201D
|
41201D
90201-70002 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 -] USE20 T=1.88,MARK 88 |
90201-70002 |
from US $4.19 |
||
|
41201D
|
41201D
90201-70003
Washer, Plate (For Rear Differential Drive Pinion)
[12.2007 - 06.2011] USE20 T=1.89,MARK 89 |
90201-70003 |
— | ||
| replacement | |||||
|
41201D
|
41201D
90201-70004 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=1.89,MARK 89 |
90201-70004 |
US $3.84 |
||
|
41201D
|
41201D
90201-70004 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 -] USE20 T=1.90,MARK 90 |
90201-70004 |
US $3.84 |
||
|
41201D
|
41201D
90201-70005 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=1.91,MARK 91 |
90201-70005 |
US $5.24 |
||
| replacement | |||||
|
41201D
|
41201D
90201-70006 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=1.91,MARK 91 |
90201-70006 |
US $3.84 |
||
|
41201D
|
41201D
90201-70006 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 -] USE20 T=1.92,MARK 92 |
90201-70006 |
US $3.84 |
||
|
41201D
|
41201D
90201-70007
Washer, Plate (For Rear Differential Drive Pinion)
[12.2007 - 06.2011] USE20 T=1.93,MARK 93 |
90201-70007 |
— | ||
| replacement | |||||
|
41201D
|
41201D
90201-70008 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=1.93,MARK 93 |
90201-70008 |
US $4.02 |
||
|
41201D
|
41201D
90201-70008 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 -] USE20 T=1.94,MARK 94 |
90201-70008 |
US $4.02 |
||
|
41201D
|
41201D
90201-70009 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=1.95,MARK 95 |
90201-70009 |
US $5.53 |
||
| replacement | |||||
|
41201D
|
41201D
90201-70010 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=1.95,MARK 95 |
90201-70010 |
US $4.02 |
||
|
41201D
|
41201D
90201-70010 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 -] USE20 T=1.96,MARK 96 |
90201-70010 |
US $4.02 |
||
|
41201D
|
41201D
90201-70011 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=1.97,MARK 97 |
90201-70011 |
US $5.53 |
||
| replacement | |||||
|
41201D
|
41201D
90201-70012 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=1.97,MARK 97 |
90201-70012 |
US $4.02 |
||
|
41201D
|
41201D
90201-70012 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 -] USE20 T=1.98,MARK 98 |
90201-70012 |
US $4.02 |
||
|
41201D
|
41201D
90201-70013 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=1.99,MARK 99 |
90201-70013 |
US $5.53 |
||
| replacement | |||||
|
41201D
|
41201D
90201-70014 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=1.99,MARK 99 |
90201-70014 |
US $4.02 |
||
|
41201D
|
41201D
90201-70014 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 -] USE20 T=2.00,MARK 00 |
90201-70014 |
US $4.02 |
||
|
41201D
|
41201D
90201-70015 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.01,MARK 01 |
90201-70015 |
US $5.53 |
||
| replacement | |||||
|
41201D
|
41201D
90201-70016 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.01,MARK 01 |
90201-70016 |
US $4.02 |
||
|
41201D
|
41201D
90201-70016 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 -] USE20 T=2.02,MARK 02 |
90201-70016 |
US $4.02 |
||
|
41201D
|
41201D
90201-70017 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.03,MARK 03 |
90201-70017 |
US $5.68 |
||
| replacement | |||||
|
41201D
|
41201D
90201-70018 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.03,MARK 03 |
90201-70018 |
US $4.02 |
||
|
41201D
|
41201D
90201-70018 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 -] USE20 T=2.04,MARK 04 |
90201-70018 |
US $4.02 |
||
|
41201D
|
41201D
90201-70019 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.05,MARK 05 |
90201-70019 |
US $5.68 |
||
| replacement | |||||
|
41201D
|
41201D
90201-70020 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.05,MARK 05 |
90201-70020 |
US $4.02 |
||
|
41201D
|
41201D
90201-70020 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 -] USE20 T=2.06,MARK 06 |
90201-70020 |
US $4.02 |
||
|
41201D
|
41201D
90201-70021 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.07,MARK 07 |
90201-70021 |
US $5.68 |
||
| replacement | |||||
|
41201D
|
41201D
90201-70022 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.07,MARK 07 |
90201-70022 |
US $4.02 |
||
|
41201D
|
41201D
90201-70022 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 -] USE20 T=2.08,MARK 08 |
90201-70022 |
US $4.02 |
||
|
41201D
|
41201D
90201-70023 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.09,MARK 09 |
90201-70023 |
US $5.68 |
||
| replacement | |||||
|
41201D
|
41201D
90201-70024 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.09,MARK 09 |
90201-70024 |
US $4.19 |
||
|
41201D
|
41201D
90201-70024 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 -] USE20 T=2.10,MARK 10 |
90201-70024 |
US $4.19 |
||
|
41201D
|
41201D
90201-70025 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.11,MARK 11 |
90201-70025 |
US $5.82 |
||
| replacement | |||||
|
41201D
|
41201D
90201-70026 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.11,MARK 11 |
90201-70026 |
US $4.19 |
||
|
41201D
|
41201D
90201-70026 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 -] USE20 T=2.12,MARK 12 |
90201-70026 |
US $4.19 |
||
|
41201D
|
41201D
90201-70027
Washer, Plate (For Rear Differential Drive Pinion)
[12.2007 - 06.2011] USE20 T=2.13,MARK 13 |
90201-70027 |
— | ||
| replacement | |||||
|
41201D
|
41201D
90201-70028 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.13,MARK 13 |
90201-70028 |
US $4.19 |
||
|
41201D
|
41201D
90201-70028 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 -] USE20 T=2.14,MARK 14 |
90201-70028 |
US $4.19 |
||
|
41201D
|
41201D
90201-70029 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.15,MARK 15 |
90201-70029 |
US $5.82 |
||
| replacement | |||||
|
41201D
|
41201D
90201-70030 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.15,MARK 15 |
90201-70030 |
US $4.19 |
||
|
41201D
|
41201D
90201-70030 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 -] USE20 T=2.16,MARK 16 |
90201-70030 |
US $4.19 |
||
|
41201D
|
41201D
90201-70031 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.17,MARK 17 |
90201-70031 |
US $5.82 |
||
| replacement | |||||
|
41201D
|
41201D
90201-70032 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.17,MARK 17 |
90201-70032 |
US $4.19 |
||
|
41201D
|
41201D
90201-70032 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 -] USE20 T=2.18,MARK 18 |
90201-70032 |
US $4.19 |
||
|
41201D
|
41201D
90201-70033
Washer, Plate (For Rear Differential Drive Pinion)
[12.2007 - 06.2011] USE20 T=2.19,MARK 19 |
90201-70033 |
— | ||
| replacement | |||||
|
41201D
|
41201D
90201-70034 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.19,MARK 19 |
90201-70034 |
US $4.72 |
||
|
41201D
|
41201D
90201-70034 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 -] USE20 T=2.20,MARK 20 |
90201-70034 |
US $4.72 |
||
|
41201D
|
41201D
90201-70035 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.21,MARK 21 |
90201-70035 |
US $5.82 |
||
| replacement | |||||
|
41201D
|
41201D
90201-70036 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.21,MARK 21 |
90201-70036 |
US $4.37 |
||
|
41201D
|
41201D
90201-70036 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 -] USE20 T=2.22,MARK 22 |
90201-70036 |
US $4.37 |
||
|
41201D
|
41201D
90201-70037 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.23,MARK 23 |
90201-70037 |
US $5.82 |
||
| replacement | |||||
|
41201D
|
41201D
90201-70038 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.23,MARK 23 |
90201-70038 |
US $4.37 |
||
|
41201D
|
41201D
90201-70038 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 -] USE20 T=2.24,MARK 24 |
90201-70038 |
US $4.37 |
||
|
41201D
|
41201D
90201-70039 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.25,MARK 25 |
90201-70039 |
US $5.82 |
||
| replacement | |||||
|
41201D
|
41201D
90201-70040 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.25,MARK 25 |
90201-70040 |
US $4.37 |
||
|
41201D
|
41201D
90201-70040 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 -] USE20 T=2.26,MARK 26 |
90201-70040 |
US $4.37 |
||
|
41201D
|
41201D
90201-70041 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.27,MARK 27 |
90201-70041 |
US $5.82 |
||
| replacement | |||||
|
41201D
|
41201D
90201-70042 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 - 06.2011] USE20 T=2.27,MARK 27 |
90201-70042 |
US $4.37 |
||
|
41201D
|
41201D
90201-70042 Washer, Plate (For Rear Differential Drive Pinion)[12.2007 -] USE20 T=2.28,MARK 28 |
90201-70042 |
US $4.37 |
||
|
41204
|
41204
41204-30040 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[12.2007 -] USE20 |
41204-30040 |
from US $66.36 |
||
|
41204B
|
41204B
90179-26005 Nut (For Rear Drive Pinion)[12.2007 -] USE20 OD=40.4 |
90179-26005 |
from US $1.96 |
||
|
41214
|
41214
41214-50010 Slinger, Rear Differential Drive Pinion Oil[12.2007 -] USE20 |
41214-50010 |
US $1.43 |
||
|
41231
|
41231
41231-30050 Spacer, Rear Differential Drive Pinion Bearing[05.2012 -] USE20 |
41231-30050 |
US $18.65 |
||
|
41231
|
41231
41231-50010 Spacer, Rear Differential Drive Pinion Bearing[12.2007 - 05.2012] USE20 |
41231-50010 |
US $13.98 |
||
|
41252
|
41252
41252-24010 Deflector, Dust (For Rear Differential)[12.2007 -] USE20 |
41252-24010 |
US $4.66 |
||
|
41301
|
41301
41301-53040 Case Sub-Assy, Rear Differential[12.2007 - 08.2009] USE20 |
41301-53040 |
US $610.06 |
||
| replacement | |||||
|
41301
|
41301
41301-53041 Case Sub-Assy, Rear DifferentialREAR DIFFERENTIAL [12.2007 - 08.2009] USE20 |
41301-53041 |
US $535.08 |
||
|
41301
|
41301
41301-53050 Case Sub-Assy, Rear DifferentialREAR DIFFERENTIAL [08.2009 - 05.2012] USE20 |
41301-53050 |
US $2,839.20 |
||
| replacement | |||||
|
41301
|
41301
41301-53051 Case Sub-Assy, Rear Differential[08.2009 - 05.2012] USE20 |
41301-53051 |
US $2,140.32 |
||
|
41301
|
41301
41301-53051 Case Sub-Assy, Rear Differential[05.2012 -] USE20 |
41301-53051 |
US $2,140.32 |
||
|
41301A
|
41301A
90366-50087 Bearing(For Rear Differential Case)[12.2007 -] USE20 |
90366-50087 |
US $44.86 |
||
|
41302A
|
41302A
90105-12219 Bolt(For Rear Differential Case)[12.2007 -] USE20 |
90105-12219 |
US $2.33 |
||
|
41334D
|
41334D
90521-99062 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=3.66,MARK 66 |
90521-99062 |
US $6.64 |
||
|
41334D
|
41334D
90521-99063 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=3.68,MARK 68 |
90521-99063 |
US $6.12 |
||
|
41334D
|
41334D
90521-99064 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=3.70,MARK 70 |
90521-99064 |
US $6.26 |
||
|
41334D
|
41334D
90521-99065 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=3.72,MARK 72 |
90521-99065 |
US $6.26 |
||
|
41334D
|
41334D
90521-99066 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=3.74,MARK 74 |
90521-99066 |
US $6.41 |
||
|
41334D
|
41334D
90521-99067 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=3.76,MARK 76 |
90521-99067 |
US $6.41 |
||
|
41334D
|
41334D
90521-99068 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=3.78,MARK 78 |
90521-99068 |
US $6.29 |
||
|
41334D
|
41334D
90521-99070 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=3.80,MARK 80 |
90521-99070 |
US $6.41 |
||
|
41334D
|
41334D
90521-99071 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=3.82,MARK 82 |
90521-99071 |
US $6.41 |
||
|
41334D
|
41334D
90521-99072 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=3.84,MARK 84 |
90521-99072 |
US $6.41 |
||
|
41334D
|
41334D
90521-99073 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=3.86,MARK 86 |
90521-99073 |
US $6.70 |
||
|
41334D
|
41334D
90521-99074 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=3.88,MARK 88 |
90521-99074 |
US $6.70 |
||
|
41334D
|
41334D
90521-99075 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=3.90,MARK 90 |
90521-99075 |
US $6.70 |
||
|
41334D
|
41334D
90521-99076 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=3.92,MARK 92 |
90521-99076 |
US $6.70 |
||
|
41334D
|
41334D
90521-99077 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=3.94,MARK 94 |
90521-99077 |
US $6.70 |
||
|
41334D
|
41334D
90521-99078 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=3.96,MARK 96 |
90521-99078 |
US $6.70 |
||
|
41334D
|
41334D
90521-99079 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=3.98,MARK 98 |
90521-99079 |
US $6.84 |
||
|
41334D
|
41334D
90521-99081 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=4.00,MARK 00 |
90521-99081 |
US $6.84 |
||
|
41334D
|
41334D
90521-99082 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=4.02,MARK 02 |
90521-99082 |
US $6.84 |
||
|
41334D
|
41334D
90521-99083 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=4.04,MARK 04 |
90521-99083 |
US $6.84 |
||
|
41334D
|
41334D
90521-99084 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=4.06,MARK 06 |
90521-99084 |
US $6.84 |
||
|
41334D
|
41334D
90521-99085 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=4.08,MARK 08 |
90521-99085 |
US $6.84 |
||
|
41334D
|
41334D
90521-99086 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=4.10,MARK 10 |
90521-99086 |
US $6.99 |
||
|
41334D
|
41334D
90521-99087 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=4.12,MARK 12 |
90521-99087 |
US $6.99 |
||
|
41334D
|
41334D
90521-99088 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=4.14,MARK 14 |
90521-99088 |
US $6.99 |
||
|
41334D
|
41334D
90521-99089 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=4.16,MARK 16 |
90521-99089 |
US $6.99 |
||
|
41334D
|
41334D
90521-99090 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=4.18,MARK 18 |
90521-99090 |
US $6.99 |
||
|
41334D
|
41334D
90521-99091 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=4.20,MARK 20 |
90521-99091 |
US $6.99 |
||
|
41334D
|
41334D
90521-99092 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=4.22,MARK 22 |
90521-99092 |
US $6.99 |
||
|
41334D
|
41334D
90521-99095 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=4.24,MARK 24 |
90521-99095 |
US $6.99 |
||
|
41334D
|
41334D
90521-99096 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=4.26,MARK 26 |
90521-99096 |
US $7.13 |
||
|
41334D
|
41334D
90521-99097 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=4.28,MARK 28 |
90521-99097 |
US $7.13 |
||
|
41334D
|
41334D
90521-99100 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=4.30,MARK 30 |
90521-99100 |
US $7.13 |
||
|
41334D
|
41334D
90521-99101 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=4.32,MARK 32 |
90521-99101 |
US $7.13 |
||
|
41334D
|
41334D
90521-99102 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=4.34,MARK 34 |
90521-99102 |
US $7.13 |
||
|
41334D
|
41334D
90521-99103 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=4.36,MARK 36 |
90521-99103 |
US $7.13 |
||
|
41334D
|
41334D
90521-99104 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=4.38,MARK 38 |
90521-99104 |
US $7.43 |
||
|
41334D
|
41334D
90521-99105 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=4.40,MARK 40 |
90521-99105 |
US $7.43 |
||
|
41334D
|
41334D
90521-99107 Washer, Plate (For Rear Differential Side Gear Shaft)[12.2007 -] USE20 T=4.42,MARK 42 |
90521-99107 |
US $7.43 |
||
|
41651
|
41651
41651-50170 Cushion, Rear Differential Mount, No.1[12.2007 -] USE20 |
41651-50170 |
from US $40.32 |
||
|
41651A
|
41651A
41651-50180 Cushion, Rear Differential Mount, No.2[12.2007 -] USE20 |
41651-50180 |
from US $58.12 |
||
|
41653
|
41653
41653-30090 Stopper, Rear Differential Mount, Upper[12.2007 -] USE20 |
41653-30090 |
US $15.20 |
||
|
41654
|
41654
41654-50040
Stopper, Rear Differential Mount, Lower
[12.2007 - 09.2012] USE20 |
41654-50040 |
— | ||
| replacement | |||||
|
41654
|
41654
41654-50043 Stopper, Rear Differential Mount, Lower[12.2007 - 09.2012] USE20 |
41654-50043 |
from US $8.80 |
||
|
41654
|
41654
41654-50041 Stopper, Rear Differential Mount, Lower[10.2012 -] USE20 |
41654-50041 |
US $6.99 |
||
| replacement | |||||
|
41654
|
41654
41654-50043 Stopper, Rear Differential Mount, Lower[10.2012 -] USE20 |
41654-50043 |
from US $8.80 |
||
