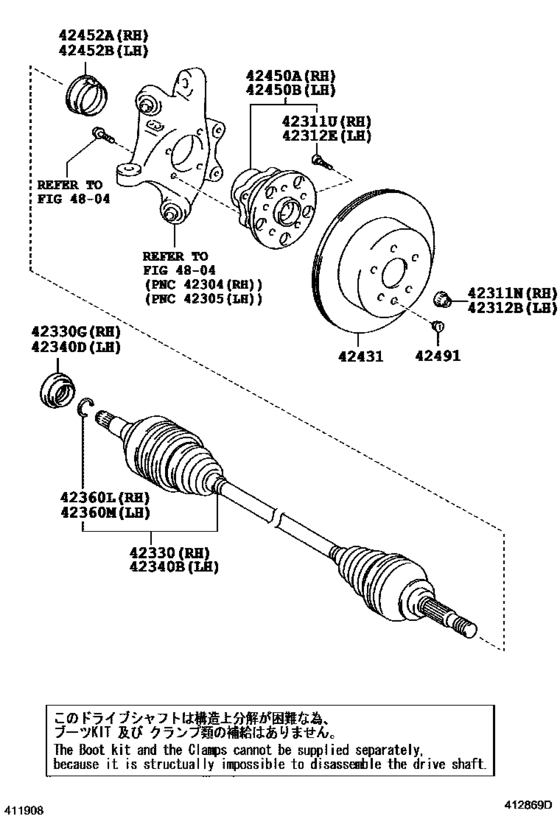

Rear Axle Shaft & Hub ([12.2007 - ] (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42311N
|
42311N
90177-26001 Nut (For Rear Axle Shaft Rh)[12.2007 -] USE20 |
90177-26001 |
from US $3.14 |
||
|
42311U
|
42311U
90942-02070
Bolt, Hub
[12.2007 -] USE20 |
90942-02070 |
— | ||
| replacements | |||||
|
42311U
|
42311U
90942-02049 Bolt, Hub[12.2007 -] USE20 |
90942-02049 |
US $4.30 |
||
|
42311U
|
42311U
90942-02082 Bolt, Hub[12.2007 -] USE20 |
90942-02082 |
from US $2.26 |
||
|
42312B
|
42312B
90177-26001 Nut (For Rear Axle Shaft Rh)[12.2007 -] USE20 |
90177-26001 |
from US $3.14 |
||
|
42312E
|
42312E
90942-02070
Bolt, Hub
[12.2007 -] USE20 |
90942-02070 |
— | ||
| replacements | |||||
|
42312E
|
42312E
90942-02049 Bolt, Hub[12.2007 -] USE20 |
90942-02049 |
US $4.30 |
||
|
42312E
|
42312E
90942-02082 Bolt, Hub[12.2007 -] USE20 |
90942-02082 |
from US $2.26 |
||
|
42330
|
42330
42330-30160 Shaft Assy, Rear Drive, Rh[12.2007 -] USE20 |
42330-30160 |
US $574.83 |
||
|
42330G
|
42330G
90311-47018 Oil Seal, Rear Drive Shaft, Rh[12.2007 - 08.2014] USE20 |
90311-47018 |
from US $19.15 |
||
|
42340B
|
42340B
42340-30160 Shaft Assy, Rear Drive, Lh[12.2007 -] USE20 |
42340-30160 |
US $524.16 |
||
|
42340D
|
42340D
90311-47019 Oil Seal, Rear Drive Shaft, Lh[12.2007 - 08.2014] USE20 |
90311-47019 |
from US $19.15 |
||
|
42360L
|
42360L
90521-34003 Ring, Hole Snap (For Diff Side Gear Intermeddiate Shaft)[12.2007 -] USE20 |
90521-34003 |
from US $1.75 |
||
|
42360M
|
42360M
90521-34003 Ring, Hole Snap (For Diff Side Gear Intermeddiate Shaft)[12.2007 -] USE20 |
90521-34003 |
from US $1.75 |
||
|
42431
|
42431
42431-0W030 Disc, Rear[12.2007 - 08.2014] USE20 |
42431-0W030 |
US $1,702.40 |
||
|
42450A
|
42450A
42410-30020
Hub & Bearing Assy, Rear Axle
[12.2007 -] USE20 |
42410-30020 |
— | ||
| replacement | |||||
|
42450A
|
42450A
42410-30021 Hub & Bearing Assy, Rear Axle[12.2007 -] USE20 |
42410-30021 |
from US $181.98 |
||
|
42450B
|
42450B
42410-30020
Hub & Bearing Assy, Rear Axle
[12.2007 -] USE20 |
42410-30020 |
— | ||
| replacement | |||||
|
42450B
|
42450B
42410-30021 Hub & Bearing Assy, Rear Axle[12.2007 -] USE20 |
42410-30021 |
from US $181.98 |
||
|
42452A
|
42452A
42451-30020 Deflecter, Rear Wheel Bearing Dust, No.2[12.2007 -] USE20 |
42451-30020 |
US $17.81 |
||
|
42452B
|
42452B
42451-30020 Deflecter, Rear Wheel Bearing Dust, No.2[12.2007 -] USE20 |
42451-30020 |
US $17.81 |
||
|
42491
|
42491
47491-50010 Plug, Shoe Adjusting Hole (For Parking Brake)[12.2007 - 08.2014] USE20 |
47491-50010 |
from US $0.86 |
||
