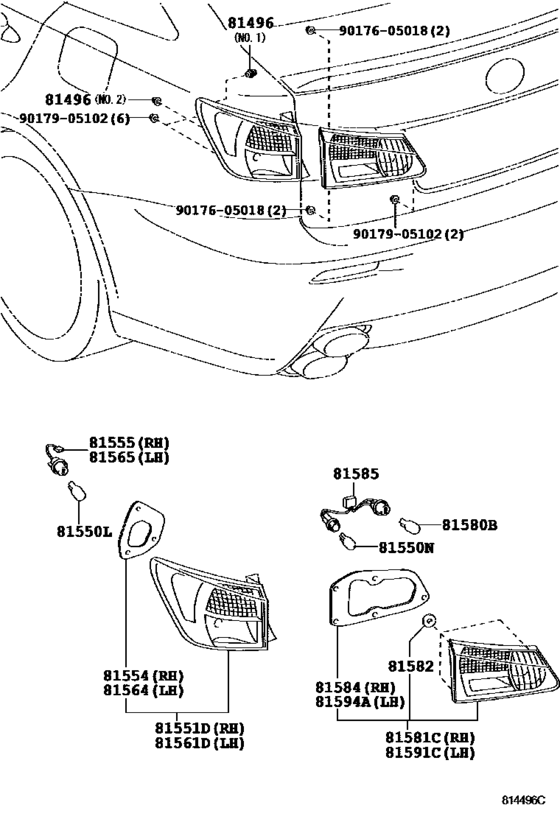

Rear Combination Lamp ([12.2007 - ] (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81496
|
81496
81496-53010 Guide, Rear Combination Lamp[12.2007 -] USE20 NO.2 |
81496-53010 |
US $2.87 |
||
|
81496
|
81496
81496-60010 Guide, Rear Combination Lamp[12.2007 -] USE20 NO.1 |
81496-60010 |
from US $1.08 |
||
|
81550L
|
81550L
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[12.2007 -] USE20 |
90981-15011 |
from US $4.48 |
||
|
81550N
|
81550N
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[12.2007 -] USE20 |
90981-11059 |
from US $3.15 |
||
|
81551D
|
81551D
81551-53180 Lens & Body, Rear Combination Lamp, Rh[12.2007 -] USE20 |
81551-53180 |
US $342.16 |
||
|
81554
|
81554
81554-53160 Gasket, Rear Combination Lamp Body, Rh[12.2007 -] USE20 |
81554-53160 |
US $9.46 |
||
|
81555
|
81555
81555-53180 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[12.2007 -] USE20 |
81555-53180 |
from US $18.93 |
||
|
81561D
|
81561D
81561-53180 Lens & Body, Rear Combination Lamp, Lh[12.2007 -] USE20 |
81561-53180 |
US $342.16 |
||
|
81564
|
81564
81564-53160 Gasket, Rear Combination Lamp Body, Lh[12.2007 -] USE20 |
81564-53160 |
US $9.46 |
||
|
81565
|
81565
81555-53180 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[12.2007 -] USE20 |
81555-53180 |
from US $18.93 |
||
|
81580B
|
81580B
90981-13043 Bulb (12V 21W)[12.2007 -] USE20 12V 21W |
90981-13043 |
from US $3.15 |
||
|
81581C
|
81581C
81581-53071 Lens And Body, Rear Lamp, Rh[12.2007 -] USE20 |
81581-53071 |
US $196.56 |
||
|
81582
|
81582
81584-22040 Gasket, Rear Combination Lamp, Rh[12.2007 -] USE20 |
81584-22040 |
US $3.40 |
||
|
81584
|
81584
81584-53060 Packing, Rear Lamp Rh[12.2007 -] USE20 |
81584-53060 |
US $16.60 |
||
|
81585
|
81585
81585-53070 Socket & Wire, Rear Lamp[12.2007 -] USE20 |
81585-53070 |
US $27.37 |
||
|
81591C
|
81591C
81591-53071 Lens, Rear Lamp, Lh[12.2007 -] USE20 |
81591-53071 |
US $196.56 |
||
|
81594A
|
81594A
81594-53060 Gasket, Rear Lamp Lh[12.2007 -] USE20 |
81594-53060 |
US $16.60 |
||
|
9017605018
|
9017605018
90176-05018 NUT, CAP |
90176-05018 |
from US $0.76 |
||
|
9017905102
|
9017905102
90179-05102 Nut |
90179-05102 |
from US $0.74 |
