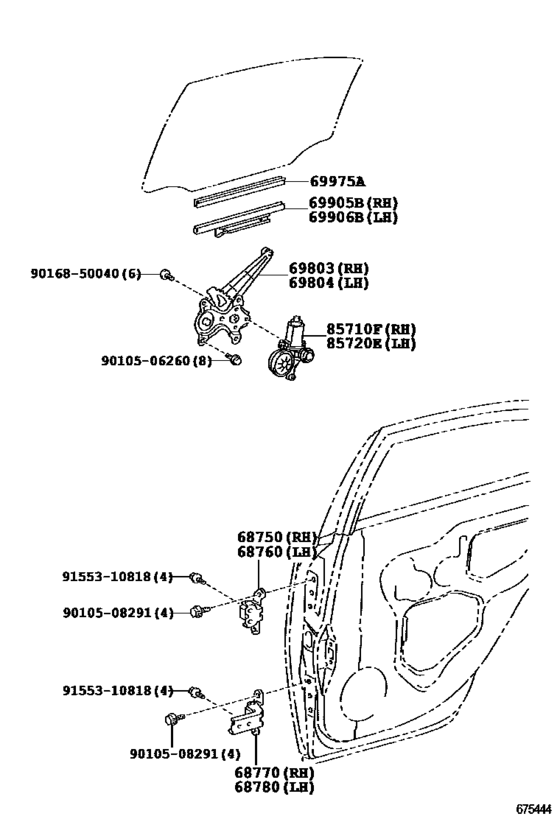

Rear Door Window Regulator & Hinge ([12.2007 - ] (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68750
|
68750
68750-20121
Hinge Assy, Rear Door, Upper Rh
[12.2007 - 05.2012] USE20 |
68750-20121 |
— | ||
| replacement | |||||
|
68750
|
68750
68750-20122 Hinge Assy, Rear Door, Upper Rh[12.2007 - 05.2012] USE20 |
68750-20122 |
from US $31.08 |
||
|
68750
|
68750
68750-20122 Hinge Assy, Rear Door, Upper Rh[06.2012 -] USE20 |
68750-20122 |
from US $31.08 |
||
|
68760
|
68760
68760-20121
Hinge Assy, Rear Door, Upper Lh
[12.2007 - 05.2012] USE20 |
68760-20121 |
— | ||
| replacement | |||||
|
68760
|
68760
68760-20122 Hinge Assy, Rear Door, Upper Lh[12.2007 - 05.2012] USE20 |
68760-20122 |
from US $30.89 |
||
|
68760
|
68760
68760-20122 Hinge Assy, Rear Door, Upper Lh[06.2012 -] USE20 |
68760-20122 |
from US $30.89 |
||
|
68770
|
68770
68770-52031 Hinge Assy, Rear Door, Lower Rh[12.2007 -] USE20 |
68770-52031 |
from US $27.89 |
||
|
68780
|
68780
68780-52031 Hinge Assy, Rear Door, Lower Lh[12.2007 -] USE20 |
68780-52031 |
from US $28.77 |
||
|
69803
|
69803
69803-22200 Regulator Sub-Assy, Rear Door Window, Rh[12.2007 -] USE20 |
69803-22200 |
US $69.22 |
||
|
69804
|
69804
69804-22200 Regulator Sub-Assy, Rear Door Window, Lh[12.2007 -] USE20 |
69804-22200 |
US $69.22 |
||
|
69905B
|
69905B
69905-53030 Channel Sub-Assy, Rear Door Glass, Rh[12.2007 - 08.2014] USE20 |
69905-53030 |
US $5.97 |
||
|
69906B
|
69906B
69906-53030 Channel Sub-Assy, Rear Door Glass, Lh[12.2007 - 08.2014] USE20 |
69906-53030 |
US $5.97 |
||
|
69975A
|
69975A
69975-52010 Filler, Rear Door Glass Channel[12.2007 - 08.2014] USE20 |
69975-52010 |
from US $5.59 |
||
|
85710F
|
85710F
85720-53060 Motor Assy, Power Window Regulator, Rh[08.2008 - 09.2012] USE20 |
85720-53060 |
US $460.10 |
||
| replacement | |||||
|
85710F
|
85710F
85720-53061 Motor Assy, Power Window Regulator, Rh[08.2008 - 09.2012] USE20 |
85720-53061 |
US $381.47 |
||
|
85710F
|
85710F
85720-53061 Motor Assy, Power Window Regulator, Rh[10.2012 -] USE20 |
85720-53061 |
US $381.47 |
||
|
85710F
|
85710F
85720-58010 Motor Assy, Power Window Regulator, Rh[12.2007 - 08.2008] USE20 |
85720-58010 |
from US $286.86 |
||
|
85720E
|
85720E
85710-53060 Motor Assy, Power Window Regulator, Lh[08.2008 - 09.2012] USE20 |
85710-53060 |
US $460.10 |
||
| replacement | |||||
|
85720E
|
85720E
85710-53061 Motor Assy, Power Window Regulator, Lh[08.2008 - 09.2012] USE20 |
85710-53061 |
US $381.47 |
||
|
85720E
|
85720E
85710-53061 Motor Assy, Power Window Regulator, Lh[10.2012 -] USE20 |
85710-53061 |
US $381.47 |
||
|
85720E
|
85720E
85710-58010 Motor Assy, Power Window Regulator, Rh[12.2007 - 08.2008] USE20 |
85710-58010 |
from US $292.51 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.65 |
||
|
9010508291
|
9010508291
90105-08291 BOLT |
90105-08291 |
from US $0.82 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.80 |
||
|
9155310818
|
9155310818
91553-10818 BOLT FLANGE |
91553-10818 |
US $1.97 |
||
