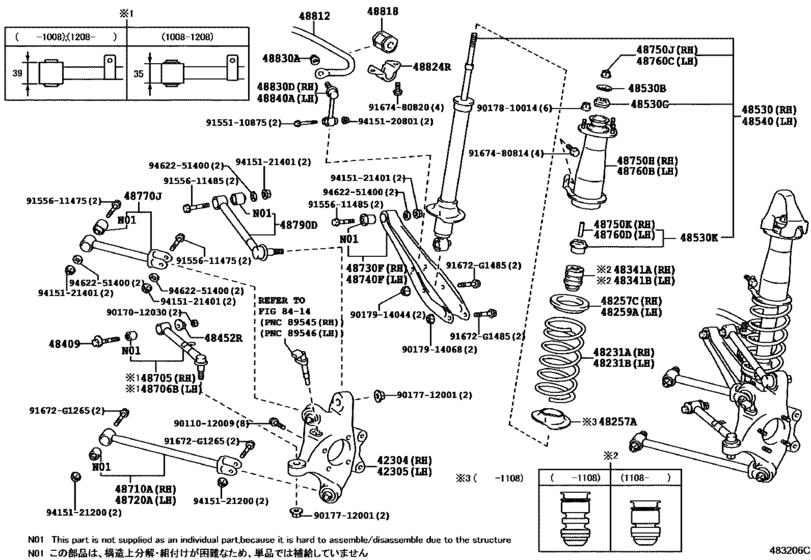

Rear Spring & Shock Absorber ([12.2007 - ] (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42304
|
42304
42304-30090 Carrier Sub-Assy, Rear Axle, Rh[12.2007 - 08.2010] USE20 |
42304-30090 |
US $329.06 |
||
| replacement | |||||
|
42304
|
42304
42304-30110 Carrier Sub-Assy, Rear Axle, Rh[12.2007 - 08.2010] USE20 |
42304-30110 |
from US $424.04 |
||
|
42304
|
42304
42304-30110 Carrier Sub-Assy, Rear Axle, Rh[08.2010 - 08.2014] USE20 |
42304-30110 |
from US $424.04 |
||
|
42305
|
42305
42305-30090
Carrier Sub-Assy, Rear Axle, Lh
[12.2007 - 08.2010] USE20 |
42305-30090 |
— | ||
| replacement | |||||
|
42305
|
42305
42305-30110 Carrier Sub-Assy, Rear Axle, Lh[12.2007 - 08.2010] USE20 |
42305-30110 |
US $460.20 |
||
|
42305
|
42305
42305-30110 Carrier Sub-Assy, Rear Axle, Lh[08.2010 - 08.2014] USE20 |
42305-30110 |
US $460.20 |
||
|
48231A
|
48231A
48231-53250 Spring, Coil, Rear Rh[12.2007 - 08.2011] USE20 |
48231-53250 |
US $104.72 |
||
|
48231A
|
48231A
48231-53260 Spring, Coil, Rear Rh[08.2011 - 08.2012] USE20 |
48231-53260 |
US $93.18 |
||
|
48231A
|
48231A
48231-53390 Spring, Coil, Rear[08.2012 -] USE20 |
48231-53390 |
US $104.72 |
||
|
48231B
|
48231B
48231-53250 Spring, Coil, Rear Rh[12.2007 - 08.2011] USE20 |
48231-53250 |
US $104.72 |
||
|
48231B
|
48231B
48231-53260 Spring, Coil, Rear Rh[08.2011 - 08.2012] USE20 |
48231-53260 |
US $93.18 |
||
|
48231B
|
48231B
48231-53390 Spring, Coil, Rear[08.2012 -] USE20 |
48231-53390 |
US $104.72 |
||
|
48257A
|
48257A
48158-30020 Insulator, Front Coil Spring, Lower[12.2007 - 08.2011] USE20 |
48158-30020 |
from US $4.96 |
||
|
48257C
|
48257C
48257-30070 Insulator, Rear Coil Spring, Upper Rh[12.2007 -] USE20 |
48257-30070 |
from US $6.25 |
||
|
48259A
|
48259A
48257-30070 Insulator, Rear Coil Spring, Upper Rh[12.2007 -] USE20 |
48257-30070 |
from US $6.25 |
||
|
48341A
|
48341A
48341-30140 Bumper, Rear Spring, No.1[08.2011 -] USE20 |
48341-30140 |
from US $27.70 |
||
|
48341A
|
48341A
48341-53020 Bumper, Rear Spring, No.1 Rh[12.2007 - 08.2011] USE20 |
48341-53020 |
US $22.13 |
||
|
48341B
|
48341B
48341-30140 Bumper, Rear Spring, No.1[08.2011 -] USE20 |
48341-30140 |
from US $27.70 |
||
|
48341B
|
48341B
48341-53020 Bumper, Rear Spring, No.1 Rh[12.2007 - 08.2011] USE20 |
48341-53020 |
US $22.13 |
||
|
48409
|
48409
48409-30020 Cam Sub-Assy, Rear Suspension Toe Adjust[12.2007 -] USE20 |
48409-30020 |
from US $8.06 |
||
|
48452R
|
48452R
48452-30040 Plate, Rear Suspension Toe Adjust, No.2[12.2007 -] USE20 |
48452-30040 |
from US $6.27 |
||
|
48530
|
48530
48530-09X70 Absorber Assy, Shock, Rear[08.2012 -] USE20 MARK 48530-0W070 |
48530-09X70 |
US $366.50 |
||
|
48530
|
48530
48530-80458 Absorber Assy, Shock, Rear Rh[12.2007 - 08.2010] USE20 MARK 48530-53210 |
48530-80458 |
US $442.51 |
||
|
48530
|
48530
48530-80566 Absorber Assy, Shock, Rear Rh[08.2010 - 08.2011] USE20 MARK 48530-53200 |
48530-80566 |
US $355.26 |
||
|
48530
|
48530
48530-80624 Absorber Assy, Shock, Rear Rh[08.2011 - 08.2012] USE20 MARK 48530-53290 |
48530-80624 |
US $355.26 |
||
|
48530B
|
48530B
90948-03021 Washer, Rear Shock Absorber Cushion, No.1[12.2007 -] USE20 |
90948-03021 |
from US $5.02 |
||
|
48530G
|
48530G
90948-01089 Cushion, Rear Shock Absorber, No.1[12.2007 -] USE20 |
90948-01089 |
from US $10.30 |
||
|
48530K
|
48530K
90948-01090 Cushion, Rear Shock Absorber, No.2[12.2007 -] USE20 |
90948-01090 |
from US $16.53 |
||
|
48540
|
48540
48530-09X70 Absorber Assy, Shock, Rear[08.2012 -] USE20 MARK 48530-0W070 |
48530-09X70 |
US $366.50 |
||
|
48540
|
48540
48530-80458 Absorber Assy, Shock, Rear Rh[12.2007 - 08.2010] USE20 MARK 48530-53210 |
48530-80458 |
US $442.51 |
||
|
48540
|
48540
48530-80566 Absorber Assy, Shock, Rear Rh[08.2010 - 08.2011] USE20 MARK 48530-53200 |
48530-80566 |
US $355.26 |
||
|
48540
|
48540
48530-80624 Absorber Assy, Shock, Rear Rh[08.2011 - 08.2012] USE20 MARK 48530-53290 |
48530-80624 |
US $355.26 |
||
|
48705
|
48705
48705-30090 Link Sub-Assy, Toe Control, Rh[12.2007 - 08.2010] USE20 |
48705-30090 |
US $49.80 |
||
|
48705
|
48705
48705-30100 Link Sub-Assy, Toe Control, Rh[08.2012 -] USE20 |
48705-30100 |
from US $46.06 |
||
|
48705
|
48705
48705-30130 Link Sub-Assy, Toe Control, Rh[08.2010 - 08.2012] USE20 |
48705-30130 |
US $32.18 |
||
|
48706B
|
48706B
48706-30070 Link Sub-Assy, Toe Control, Lh[08.2010 - 08.2012] USE20 |
48706-30070 |
US $32.18 |
||
|
48706B
|
48706B
48706-30090 Link Sub-Assy, Toe Control, Lh[12.2007 - 08.2010] USE20 |
48706-30090 |
US $49.80 |
||
|
48706B
|
48706B
48706-30100 Link Sub-Assy, Toe Control, Lh[08.2012 -] USE20 |
48706-30100 |
from US $45.58 |
||
|
48710A
|
48710A
48710-30220 Arm Assy, Rear Suspension, No.1 Rh[08.2010 -] USE20 |
48710-30220 |
US $142.68 |
||
|
48710A
|
48710A
48710-53020 Arm Assy, Rear Suspension, No.1 Rh[12.2007 - 08.2010] USE20 |
48710-53020 |
from US $123 |
||
|
48720A
|
48720A
48710-30220 Arm Assy, Rear Suspension, No.1 Rh[08.2010 -] USE20 |
48710-30220 |
US $142.68 |
||
|
48720A
|
48720A
48710-53020 Arm Assy, Rear Suspension, No.1 Rh[12.2007 - 08.2010] USE20 |
48710-53020 |
from US $123 |
||
|
48730F
|
48730F
48730-30090 Arm Assy, Rear Suspension, No.2 Rh[12.2007 - 08.2010] USE20 |
48730-30090 |
US $116.44 |
||
|
48730F
|
48730F
48730-30130 Arm Assy, Rear Suspension, No.2 Rh[08.2010 - 08.2012] USE20 |
48730-30130 |
US $96.76 |
||
|
48740F
|
48740F
48740-30110 Arm Assy, Rear Suspension, No.2 Lh[12.2007 - 08.2010] USE20 |
48740-30110 |
from US $107.32 |
||
|
48740F
|
48740F
48740-30130 Arm Assy, Rear Suspension, No.2 Lh[08.2010 - 08.2012] USE20 |
48740-30130 |
US $96.76 |
||
|
48750H
|
48750H
48750-30150 Support Assy, Rear Suspension[12.2007 -] USE20 |
48750-30150 |
from US $109.65 |
||
|
48750J
|
48750J
90179-12127 Nut[12.2007 -] USE20 |
90179-12127 |
from US $0.93 |
||
| replacement | |||||
|
48750J
|
48750J
90178-A0071 New Genuine Part[12.2007 -] USE20 |
90178-A0071 |
US $3.02 |
||
|
48750K
|
48750K
90387-12050 Collar[12.2007 -] USE20 |
90387-12050 |
US $7.35 |
||
|
48760B
|
48760B
48750-30150 Support Assy, Rear Suspension[12.2007 -] USE20 |
48750-30150 |
from US $109.65 |
||
|
48760C
|
48760C
90179-12127 Nut[12.2007 -] USE20 |
90179-12127 |
from US $0.93 |
||
| replacement | |||||
|
48760C
|
48760C
90178-A0071 New Genuine Part[12.2007 -] USE20 |
90178-A0071 |
US $3.02 |
||
|
48760D
|
48760D
90387-12050 Collar[12.2007 -] USE20 |
90387-12050 |
US $7.35 |
||
|
48770J
|
48770J
48770-30110 Arm Assy, Upper Control, Rear No.1[08.2010 -] USE20 |
48770-30110 |
US $123 |
||
|
48770J
|
48770J
48770-53020 Arm Assy, Upper Control, Rear No.1[12.2007 - 08.2010] USE20 |
48770-53020 |
US $100.46 |
||
|
48790D
|
48790D
48790-30120 Arm Assy, Upper Control, Rear No.2[08.2012 -] USE20 |
48790-30120 |
US $138.72 |
||
|
48790D
|
48790D
48790-53030 Arm Assy, Upper Control, Rear No.2[08.2010 - 08.2012] USE20 |
48790-53030 |
from US $159.08 |
||
|
48790D
|
48790D
48790-53040 Arm Assy, Upper Control, Rear No.2[12.2007 - 08.2010] USE20 |
48790-53040 |
US $179.09 |
||
|
48812
|
48812
48812-30400 Bar, Stabilizer, Rear[12.2007 -] USE20 |
48812-30400 |
US $116.44 |
||
|
48818
|
48818
48818-30180 Bush, Stabilizer, Rear[12.2007 - 08.2010] USE20 |
48818-30180 |
from US $13.95 |
||
|
48818
|
48818
48818-53060 Bush, Stabilizer, Rear[08.2010 -] USE20 |
48818-53060 |
US $19.49 |
||
|
48824R
|
48824R
48832-30060 Bracket, Stabilizer(For Rear)[12.2007 -] USE20 |
48832-30060 |
from US $7.13 |
||
|
48830A
|
48830A
90179-12151 Nut(For Front Stabilizer Link)[12.2007 -] USE20 |
90179-12151 |
from US $0.89 |
||
|
48830D
|
48830D
48830-30090 Link Assy, Rear Stabilizer, Rh[12.2007 -] USE20 |
48830-30090 |
from US $53.18 |
||
|
48840A
|
48840A
48830-30090 Link Assy, Rear Stabilizer, Rh[12.2007 -] USE20 |
48830-30090 |
from US $53.18 |
||
|
91672G1265
|
91672G1265
91672-G1265 BOLT FLANGE |
91672-G1265 |
US $5.91 |
||
|
91672G1485
|
91672G1485
91672-G1485 BOLT FLANGE |
91672-G1485 |
from US $4.28 |
||
|
9011012009
|
9011012009
90110-12009 Bolt (For Rear Axle Bearing Case Rh) |
90110-12009 |
US $3.40 |
||
|
9017012030
|
9017012030
90170-12030 NUTHEXAGON |
90170-12030 |
from US $1.20 |
||
|
9017712001
|
9017712001
90177-12001 NUT, LOCK |
90177-12001 |
US $3.94 |
||
|
9017810014
|
9017810014
90178-10014 Nut(For Front Suspension Support) |
90178-10014 |
from US $1.10 |
||
|
9017914044
|
9017914044
90179-14044 NUT |
90179-14044 |
US $3.58 |
||
|
9017914068
|
9017914068
90179-14068 Nut(For Front Suspension Lower Arm) |
90179-14068 |
from US $1.08 |
||
|
9155110875
|
9155110875
91551-10875 New Genuine Part |
91551-10875 |
US $2.04 |
||
| replacement | |||||
|
9155110875
|
9155110875
91551-G0875 Bolt |
91551-G0875 |
US $3.05 |
||
|
9155611475
|
9155611475
91556-11475 BOLT FLANGE |
91556-11475 |
US $4.27 |
||
| replacement | |||||
|
9155611475
|
9155611475
90105-14200 BOLT FLANGE |
90105-14200 |
US $5.56 |
||
|
9155611485
|
9155611485
91556-11485 BOLT FLANGE |
91556-11485 |
US $4.27 |
||
| replacement | |||||
|
9155611485
|
9155611485
90105-14202 BOLT FLANGE |
90105-14202 |
US $5.56 |
||
|
9167480814
|
9167480814
91674-80814 Bolt |
91674-80814 |
US $1.61 |
||
|
9167480820
|
9167480820
91674-80820 BOLT FLANGE |
91674-80820 |
from US $0.76 |
||
|
9415120801
|
9415120801
94151-20801 New Genuine Part |
94151-20801 |
US $1.43 |
||
|
9415121200
|
9415121200
94151-21200 NUT FLANGE |
94151-21200 |
US $2.51 |
||
|
9415121401
|
9415121401
94151-21401 NUT FLANGE |
94151-21401 |
from US $1.10 |
||
|
9462251400
|
9462251400
94622-51400 Washer(For Front Suspension Lower Arm No.1 Rh) |
94622-51400 |
from US $1.24 |
||
