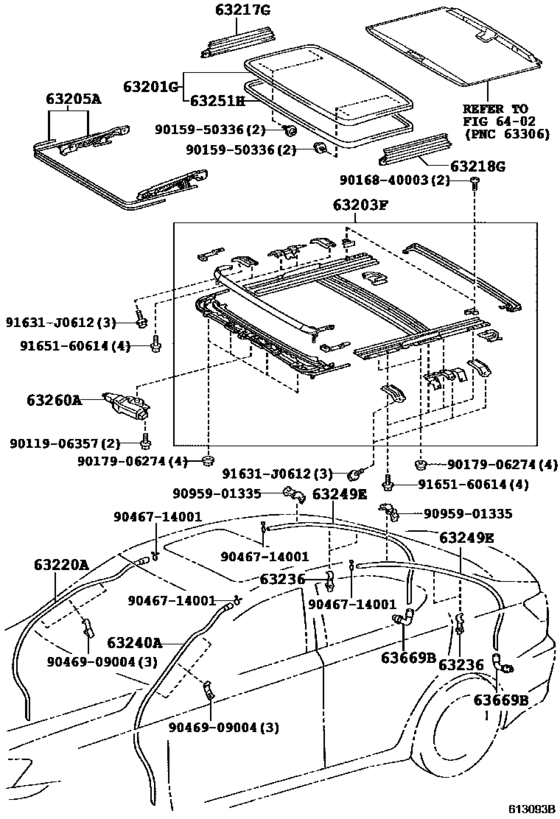

Roof Panel & Back Window Glass ([12.2007 - ] MOON ROOF (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63201G
|
63201G
63201-53031 Glass Sub-Assy, Sliding Roof[12.2007 -] USE20 *TEM,T=4.0,DARK GRAY,MOON ROOF-WITH(AUTO SLIDE) |
63201-53031 |
US $725.09 |
||
|
63203F
|
63203F
63203-53020 Housing Sub-Assy, Sliding Roof[12.2007 -] USE20 MOON ROOF-WITH(AUTO SLIDE) |
63203-53020 |
US $398.94 |
||
|
63205A
|
63205A
63205-48010 Cable Sub-Assy, Sliding Roof Drive[12.2007 -] USE20 MOON ROOF-WITH(AUTO SLIDE) |
63205-48010 |
from US $373.46 |
||
|
63217G
|
63217G
63217-48030 Garnish, Sliding Roof Side, Rh[12.2007 -] USE20 MOON ROOF-WITH(AUTO SLIDE) |
63217-48030 |
US $19.92 |
||
|
63218G
|
63218G
63218-48030 Garnish, Sliding Roof Side, Lh[12.2007 -] USE20 MOON ROOF-WITH(AUTO SLIDE) |
63218-48030 |
US $19.92 |
||
|
63220A
|
63220A
63220-30080
Hose Assy, Sliding Roof Drain, Rh
[12.2007 -] USE20 MOON ROOF-WITH(AUTO SLIDE) |
63220-30080 |
— | ||
|
63236
|
63236
63236-30010 Clamp, Sliding Roof Or Removable Roof Drain Hose[12.2007 -] USE20 MOON ROOF-WITH(AUTO SLIDE) |
63236-30010 |
US $1.56 |
||
|
63240A
|
63240A
63220-30080
Hose Assy, Sliding Roof Drain, Rh
[12.2007 -] USE20 MOON ROOF-WITH(AUTO SLIDE) |
63220-30080 |
— | ||
|
63249E
|
63249E
63249-53050 Hose, Sliding Roof Drain[12.2007 -] USE20 MOON ROOF-WITH(AUTO SLIDE) |
63249-53050 |
US $24.61 |
||
|
63251H
|
63251H
63251-53030 Weatherstrip, Sliding Roof[12.2007 -] USE20 MOON ROOF-WITH(AUTO SLIDE) |
63251-53030 |
from US $40.30 |
||
|
63260A
|
63260A
63260-53040 Gear Sub-Assy, Sliding Roof Drive[12.2007 - 01.2008] USE20 MOON ROOF-WITH(AUTO SLIDE) |
63260-53040 |
US $634.82 |
||
| replacement | |||||
|
63260A
|
63260A
63260-53071 Gear Sub-Assy, Sliding Roof Drive[12.2007 - 01.2008] USE20 MOON ROOF-WITH(AUTO SLIDE) |
63260-53071 |
US $665.68 |
||
|
63260A
|
63260A
63260-53041 Gear Sub-Assy, Sliding Roof Drive[01.2008 - 08.2008] USE20 MOON ROOF-WITH(AUTO SLIDE) |
63260-53041 |
US $633.36 |
||
| replacement | |||||
|
63260A
|
63260A
63260-53071 Gear Sub-Assy, Sliding Roof Drive[01.2008 - 08.2008] USE20 MOON ROOF-WITH(AUTO SLIDE) |
63260-53071 |
US $665.68 |
||
|
63260A
|
63260A
63260-53070 Gear Sub-Assy, Sliding Roof Drive[08.2008 - 08.2009] USE20 MOON ROOF-WITH(AUTO SLIDE) |
63260-53070 |
US $527.07 |
||
| replacement | |||||
|
63260A
|
63260A
63260-53071 Gear Sub-Assy, Sliding Roof Drive[08.2008 - 08.2009] USE20 MOON ROOF-WITH(AUTO SLIDE) |
63260-53071 |
US $665.68 |
||
|
63260A
|
63260A
63260-53090 Gear Sub-Assy, Sliding Roof DriveSLIDING ROOF DRIVE [08.2009 - 09.2010] USE20 MOON ROOF-WITH(AUTO SLIDE) |
63260-53090 |
US $527.07 |
||
| replacement | |||||
|
63260A
|
63260A
63260-53091 Gear Sub-Assy, Sliding Roof Drive[08.2009 - 09.2010] USE20 MOON ROOF-WITH(AUTO SLIDE) |
63260-53091 |
US $438.26 |
||
|
63260A
|
63260A
63260-53091 Gear Sub-Assy, Sliding Roof Drive[10.2010 -] USE20 MOON ROOF-WITH(AUTO SLIDE) |
63260-53091 |
US $438.26 |
||
|
63669B
|
63669B
63669-30040 Grommet, Sliding Roof Drain[05.2013 -] USE20 MOON ROOF-WITH(AUTO SLIDE) |
63669-30040 |
US $7.17 |
||
|
63669B
|
63669B
63669-50010 Grommet, Sliding Roof Drain[12.2007 - 04.2013] USE20 MOON ROOF-WITH(AUTO SLIDE) |
63669-50010 |
US $4.12 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9011906357
|
9011906357
90119-06357 BOLT WWASHER |
90119-06357 |
US $1.24 |
||
|
9015950336
|
9015950336
90159-50336 SCREW WWASHER |
90159-50336 |
from US $0.65 |
||
|
9016840003
|
9016840003
90168-40003 New Genuine Part |
90168-40003 |
US $1.75 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9046714001
|
9046714001
90467-14001 Clip Or Clamp(For Ventilation Hose) |
90467-14001 |
from US $0.70 |
||
| replacement | |||||
|
9046714001
|
9046714001
90466-T0026
Clip Or Clamp(For Ventilation Hose)
|
90466-T0026 |
— | ||
|
9046909004
|
9046909004
90469-09004 Clamp, Sliding Roof Or Removable Roof Drain Hose |
90469-09004 |
US $1.60 |
||
|
9095901335
|
9095901335
90959-01335 New Genuine Part |
90959-01335 |
US $2.80 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
