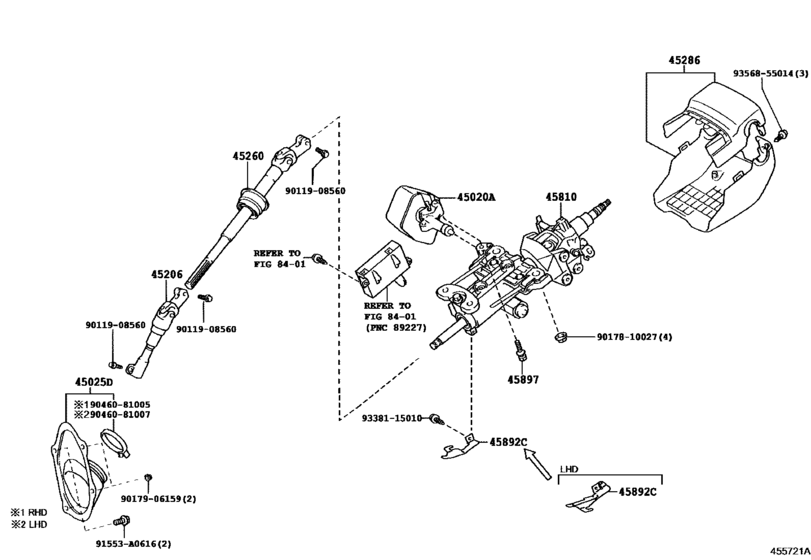

Steering Column & Shaft ([11.2010 - ] (1011- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45020A
|
45020A
45020-30A60 Actuator Assy, Steering Lock[12.2007 -] USE20 |
45020-30A60 |
from US $206.17 |
||
|
45025D
|
45025D
45025-30350 Cover Sub-Assy, Steering Column Hole, No.1[12.2007 -] USE20..RHD |
45025-30350 |
US $24.24 |
||
|
45206
|
45206
45206-30140 Yoke Sub-Assy, Steering Sliding W/shaft[12.2007 - 12.2011] USE20..RHD |
45206-30140 |
US $157.76 |
||
|
45206
|
45206
45206-30141 Yoke Sub-Assy, Steering Sliding W/shaft[12.2011 -] USE20..RHD |
45206-30141 |
US $104.83 |
||
|
45260
|
45260
45260-30200
Shaft Assy, Steering Intermediate, No.2
[12.2007 - 12.2012] USE20 |
45260-30200 |
— | ||
| replacement | |||||
|
45260
|
45260
45260-30201 Shaft Assy, Steering Intermediate, No.2[12.2007 - 12.2012] USE20 |
45260-30201 |
US $282.78 |
||
|
45260
|
45260
45260-30201 Shaft Assy, Steering Intermediate, No.2[01.2013 -] USE20 |
45260-30201 |
US $282.78 |
||
|
45286
|
45286
45286-53907-C0
Cover, Steering Column
[12.2007 - 05.2009] USE20 BLACK,TRIM2# |
45286-53907-C0 |
— | ||
| replacement | |||||
|
45286
|
45286
45286-53912-C0
Cover, Steering Column
[12.2007 - 05.2009] USE20 BLACK,TRIM2# |
45286-53912-C0 |
— | ||
|
45286
|
45286
45286-53912-C0
Cover, Steering Column
[05.2009 - 08.2014] USE20 BLACK,TRIM2# |
45286-53912-C0 |
— | ||
|
45810
|
45810
45810-53020 Gear Assy, Tilt Steering, W/motor[11.2010 -] USE20 |
45810-53020 |
US $776.05 |
||
|
45892C
|
45892C
45892-30010 Bracket, Return Spring[11.2010 -] USE20..RHD |
45892-30010 |
US $3.79 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[12.2007 -] USE20 |
45897-12020 |
from US $2.62 |
||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $1.08 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.10 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 New Genuine Part |
90080-11555 |
US $4.23 |
||
|
9017810027
|
9017810027
90178-10027 New Genuine Part |
90178-10027 |
US $1.79 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9046081005
|
9046081005
90460-81005 New Genuine Part |
90460-81005 |
US $5.56 |
||
|
9046081007
|
9046081007
90460-81007 CLAMP HOSE |
90460-81007 |
US $2.91 |
||
|
9338115010
|
9338115010
93381-15010 SCREW |
93381-15010 |
US $1.08 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
