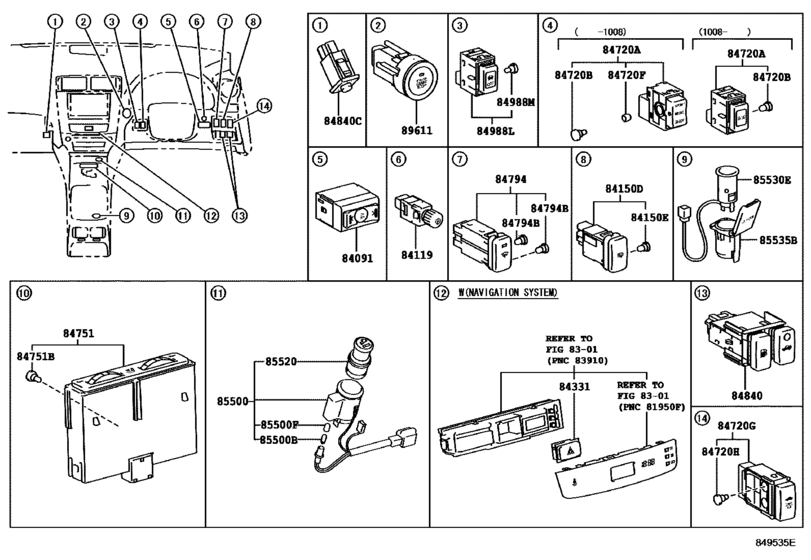

Switch & Relay & Computer ([12.2007 - 08.2011] INSTRUMENT PANEL 1/2 (0712-1108)RHD) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84091
|
84091
84091-53010 Switch Set, Satellite[12.2007 -] USE20 |
84091-53010 |
US $60.72 |
||
|
84119
|
84119
84119-48010 Rheostat, Light Control[12.2007 -] USE20 |
84119-48010 |
US $56.06 |
||
|
84150D
|
84150D
84150-60030 Switch Assy, Headlamp Cleaner[12.2007 -] USE20 |
84150-60030 |
US $60.28 |
||
|
84150E
|
84150E
90010-01039 Blub, Center Cluster Module Switch[12.2007 -] USE20 14V0.91W,W(GREEN CAP |
90010-01039 |
from US $3.17 |
||
|
84331
|
84331
84331-53010 Knob, Hazard Warning Signal Switch[12.2007 - 08.2008] USE20; USE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-W ITH(GPS NAVIGATION); USE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WIT H(GPS NAVIGATION); |
84331-53010 |
US $5.24 |
||
|
84331
|
84331
84331-53020 Knob, Hazard Warning Signal Switch[12.2007 - 08.2008] USE20..RHD NEW ZEALAND SPEC&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION); USE20..RHD AUSTRALIA SPEC&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION); USE20 EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION) |
84331-53020 |
US $5.24 |
||
|
84331
|
84331
84331-53030
Knob, Hazard Warning Signal Switch
[08.2008 - 08.2010] USE20..RHD; USE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-W ITH(GPS NAVIGATION); USE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WIT H(GPS NAVIGATI |
84331-53030 |
— | ||
|
84331
|
84331
84331-53040 Knob, Hazard Warning Signal Switch[08.2008 - 08.2009] USE20 EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION) |
84331-53040 |
US $3.64 |
||
|
84720A
|
84720A
84720-53030 Switch Assy, Pattern Select, No.1[12.2007 - 08.2010] USE20 |
84720-53030 |
US $68.83 |
||
|
84720A
|
84720A
84720-53050
Switch Assy, Pattern Select, No.1
[08.2010 - 08.2011] USE20 |
84720-53050 |
— | ||
|
84720A
|
84720A
84720-53060
Switch Assy, Pattern Select, No.1
[08.2011 -] USE20 |
84720-53060 |
— | ||
|
84720B
|
84720B
84999-10710 Bulb, Throttle Position Switch[12.2007 - 08.2010] USE20 14V 0.56W |
84999-10710 |
from US $6 |
||
|
84720B
|
84720B
90010-01137
Bulb (For Pattern Select Switch)
[08.2010 - 08.2011] USE20 14V 0.63W |
90010-01137 |
— | ||
| replacement | |||||
|
84720B
|
84720B
90010-01139 Bulb (For Pattern Select Switch)[08.2010 - 08.2011] USE20 14V 0.63W |
90010-01139 |
US $4.56 |
||
|
84720B
|
84720B
90010-01161 Bulb (For Pattern Select Switch)[08.2011 -] USE20 14V 0.84W,W(CAP) |
90010-01161 |
US $4.80 |
||
|
84720F
|
84720F
84998-10670 Cap, Throttle Position Switch Bulb[12.2007 - 08.2010] USE20 |
84998-10670 |
US $4.12 |
||
|
84720G
|
84720G
84720-53040 Switch Assy, Cruise Distance[08.2010 -] USE20 PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
84720-53040 |
US $39.60 |
||
|
84720H
|
84720H
90010-01062 Bulb, Hdeadlamp Swivel Main Switch[08.2010 -] USE20 14V0.63W,W(GREEN CAP),PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
90010-01062 |
from US $3.55 |
||
|
84751
|
84751
84751-30190 Switch, Seat Heater[12.2007 -] USE20 |
84751-30190 |
US $174.72 |
||
|
84751B
|
84751B
90010-01070 Bulb, Seat Heater Switch[12.2007 -] USE20 14V 1.8W,W(GREEN CAP) |
90010-01070 |
from US $4.73 |
||
|
84794
|
84794
84794-33020
Switch, Fr Wiper Deicer
[12.2007 - 08.2010] USE20 |
84794-33020 |
— | ||
| replacement | |||||
|
84794
|
84794
84794-35020 Switch, Fr Wiper Deicer[12.2007 - 08.2010] USE20 |
84794-35020 |
US $32.26 |
||
|
84794B
|
84794B
84999-10310 Bulb, Air Conditioner Control[12.2007 - 08.2010] USE20 14V 0.91W |
84999-10310 |
from US $2.85 |
||
|
84794B
|
84794B
90010-01061 Bulb (For Headlamp Leveling Switch)[12.2007 - 08.2010] USE20 14V0.84W,W(GREEN CAP) |
90010-01061 |
from US $3.48 |
||
|
84840
|
84840
84840-33080 Switch Assy, Luggage Compartment Door Opening[12.2007 -] USE20 |
84840-33080 |
US $52.85 |
||
|
84840C
|
84840C
84840-24020 Switch Assy, Luggage Door Opening, Cancel[12.2007 -] USE20 |
84840-24020 |
US $30.23 |
||
|
84988L
|
84988L
84988-30140 Switch, Vsc Off[12.2007 - 08.2011] USE20 |
84988-30140 |
US $47.76 |
||
|
84988L
|
84988L
84988-53010 Switch, Vsc Off[08.2011 -] USE20 |
84988-53010 |
US $39.60 |
||
|
84988M
|
84988M
90010-01039 Blub, Center Cluster Module Switch[08.2011 -] USE20 14V0.91W,W(GREEN CAP |
90010-01039 |
from US $3.17 |
||
|
84988M
|
84988M
90010-01137
Bulb (For Pattern Select Switch)
[12.2007 - 08.2011] USE20 14V 0.63W |
90010-01137 |
— | ||
| replacement | |||||
|
84988M
|
84988M
90010-01139 Bulb (For Pattern Select Switch)[12.2007 - 08.2011] USE20 14V 0.63W |
90010-01139 |
US $4.56 |
||
|
85500
|
85500
85500-30520 Lighter Assy, Cigarette[12.2007 - 08.2010] USE20; USE20 ASH TRAY-FRONT/WITHOUT,REAR/WITH |
85500-30520 |
from US $45.90 |
||
|
85500B
|
85500B
90010-01111 Bulb, Cigarette Lighter[12.2007 - 08.2010] USE20 13.5V 2W; USE20 13.5V 2W,ASH TRAY-FRONT/WITHOUT,REAR/WITH |
90010-01111 |
US $4.37 |
||
|
85500F
|
85500F
84998-10510 Cap, Cigarette Lighter Bulb[12.2007 - 08.2010] USE20; USE20 ASH TRAY-FRONT/WITHOUT,REAR/WITH |
84998-10510 |
US $4.12 |
||
|
85520
|
85520
85520-89101 Knob And Element Assy, Cigarette Lighter[12.2007 - 08.2010] USE20; USE20 ASH TRAY-FRONT/WITHOUT,REAR/WITH |
85520-89101 |
from US $16.74 |
||
|
85530E
|
85530E
85530-53040 Socket Assy, Power Outlet, No.3[12.2007 - 08.2008] USE20 |
85530-53040 |
US $37.56 |
||
|
85530E
|
85530E
85530-53050 Socket Assy, Power Outlet, No.3[08.2008 - 08.2014] USE20 |
85530-53050 |
US $26.06 |
||
|
85535B
|
85535B
85535-50020 Cover, Power Outlet Socket, No.1[12.2007 - 08.2014] USE20 |
85535-50020 |
from US $5.76 |
||
|
89611
|
89611
89611-30020 Switch, Push Start[12.2007 - 02.2008] USE20 |
89611-30020 |
US $196.56 |
||
| replacement | |||||
|
89611
|
89611
89611-30025 Switch, Push Start[12.2007 - 02.2008] USE20 |
89611-30025 |
US $153.70 |
||
|
89611
|
89611
89611-30021 Switch, Push Start[03.2008 - 01.2010] USE20 |
89611-30021 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-30025 Switch, Push Start[03.2008 - 01.2010] USE20 |
89611-30025 |
US $153.70 |
||
|
89611
|
89611
89611-30022 Switch, Push StartPUSH START [02.2010 - 04.2011] USE20 |
89611-30022 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-30025 Switch, Push Start[02.2010 - 04.2011] USE20 |
89611-30025 |
US $153.70 |
||
|
89611
|
89611
89611-30023 Switch, Push Start[05.2011 - 04.2012] USE20 |
89611-30023 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-30025 Switch, Push Start[05.2011 - 04.2012] USE20 |
89611-30025 |
US $153.70 |
||
|
89611
|
89611
89611-30024
Switch, Push Start
[05.2012 -] USE20 |
89611-30024 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-30025 Switch, Push Start[05.2012 -] USE20 |
89611-30025 |
US $153.70 |
||
