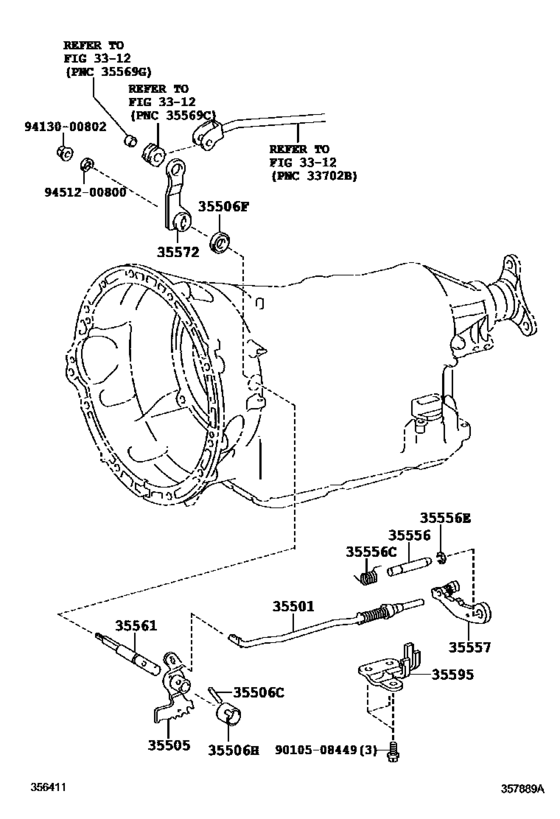

Throttle Link & Valve Lever (Atm) ([12.2007 - ] AA80E (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35501
|
35501
35501-50020 Rod Sub-Assy, Parking Lock[12.2007 -] USE20 |
35501-50020 |
US $23.15 |
||
|
35505
|
35505
35505-30040 Lever Sub-Assy, Manual Valve[12.2007 -] USE20 |
35505-30040 |
US $18.64 |
||
|
35506C
|
35506C
90254-04011 Pin, Slotted Spring (For Transfer Manual Valve Lever)[12.2007 -] USE20 |
90254-04011 |
US $1.40 |
||
|
35506F
|
35506F
90311-12002 Oil Seal, Type T[12.2007 -] USE20 |
90311-12002 |
from US $3.93 |
||
|
35506H
|
35506H
90560-20025 Spacer (For Manual Valve Lever)[12.2007 -] USE20 |
90560-20025 |
from US $1.62 |
||
|
35556
|
35556
35556-60020 Shaft, Parking Lock Pawl[12.2007 -] USE20 |
35556-60020 |
from US $5.10 |
||
|
35556C
|
35556C
90949-03147 Spring, Torsion (For Parking Lock Pawl Shaft)[12.2007 -] USE20 |
90949-03147 |
US $1.75 |
||
|
35556E
|
35556E
90523-08021 Ring, E (For Parking Lock Pawl Shaft)[12.2007 -] USE20 |
90523-08021 |
US $1.46 |
||
|
35557
|
35557
35590-50020 Pawl, Parking Lock[12.2007 -] USE20 |
35590-50020 |
US $60.72 |
||
|
35561
|
35561
35561-50030 Shaft, Manual Valve Lever[12.2007 - 08.2014] USE20 |
35561-50030 |
US $8.15 |
||
|
35572
|
35572
35572-30100 Lever, Transmission Control Shaft, Rh[12.2007 -] USE20 |
35572-30100 |
US $11.21 |
||
|
35595
|
35595
35595-50020 Bracket, Parking Lock Pawl[12.2007 -] USE20 |
35595-50020 |
US $18.20 |
||
|
9010508449
|
9010508449
90105-08449
New Genuine Part
|
90105-08449 |
— | ||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.82 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
