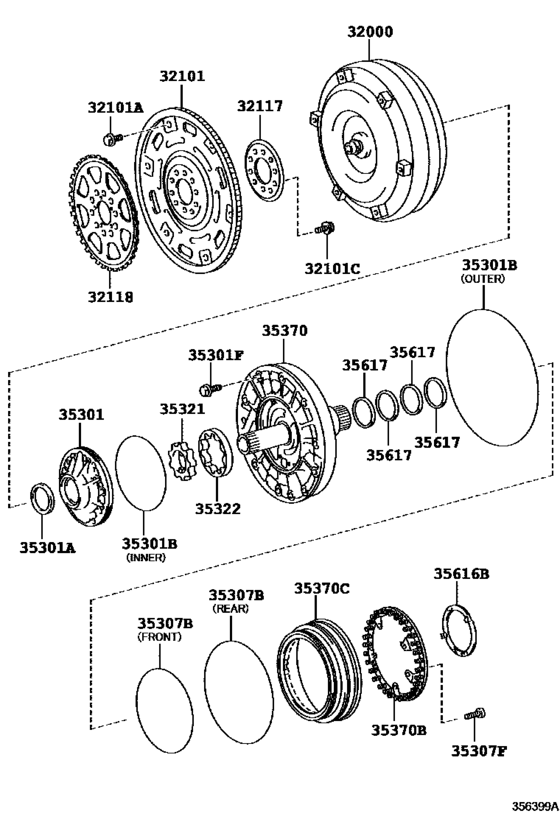

Torque Converter, Front Oil Pump & Chain (Atm) ([12.2007 - ] AA80E (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-50050 Converter Assy, Torque[12.2007 - 08.2014] USE20 |
32000-50050 |
US $1,215.76 |
||
|
32101
|
32101
32101-50021 Gear Sub-Assy, Drive Plate & Ring[12.2007 -] USE20 |
32101-50021 |
US $180.54 |
||
|
32101A
|
32101A
90105-10340 Bolt(For Drive Plate & Torque Converter Setting)[12.2007 -] USE20 *10-1.5PX12.8-9.8 |
90105-10340 |
US $1.97 |
||
|
32101A
|
32101A
90105-10547 Bolt(For Drive Plate & Torque Converter Setting)[12.2007 -] USE20 *10-1.5PX12.8-9.7 |
90105-10547 |
US $2.87 |
||
|
32101C
|
32101C
90910-02129 Bolt, Flywheel Setting[12.2007 -] USE20 *10-1.25PX23-16,(J) |
90910-02129 |
from US $1.81 |
||
|
32101C
|
32101C
90910-A2002
Bolt, Hexagon(For Drive Plate Setting)
[12.2007 -] USE20 *10-1.25PX23-16,(L) |
90910-A2002 |
— | ||
|
32117
|
32117
32117-34010 Spacer, Drive Plate, Rear[12.2007 -] USE20 |
32117-34010 |
US $12.52 |
||
|
32118
|
32118
32118-34010 Rotor, Crankshaft Angle Sensor[12.2007 -] USE20 |
32118-34010 |
from US $27.66 |
||
|
35301
|
35301
35301-50030 Body Sub-Assy, Front Oil Pump[12.2007 - 08.2012] USE20 |
35301-50030 |
US $189.28 |
||
| replacement | |||||
|
35301
|
35301
35301-50031
Body Sub-Assy, Front Oil Pump
[12.2007 - 08.2012] USE20 |
35301-50031 |
— | ||
|
35301
|
35301
35301-50031
Body Sub-Assy, Front Oil Pump
[08.2012 -] USE20 |
35301-50031 |
— | ||
|
35301A
|
35301A
90311-45032 Seal, Oil (For Front Oil Pump)[12.2007 -] USE20 |
90311-45032 |
from US $8.42 |
||
|
35301B
|
35301B
90301-99087 Ring, O (For Overdrive Brake Piston)[12.2007 -] USE20 INNER |
90301-99087 |
from US $2.62 |
||
|
35301B
|
35301B
90301-99171 Ring, O (For Front Oil Pump Body)[12.2007 -] USE20 OUTER |
90301-99171 |
from US $3.84 |
||
|
35301F
|
35301F
90105-08353 Bolt(For Head To Camshaft Bearing Cap)[12.2007 -] USE20 *8-1.25PX50-30 |
90105-08353 |
from US $0.89 |
||
|
35307B
|
35307B
90301-99170 Ring, Shaft Snap (For Stator Shaft)[12.2007 -] USE20 REAR |
90301-99170 |
US $3.64 |
||
|
35307B
|
35307B
90301-99172 Ring, Shaft Snap (For Stator Shaft)[12.2007 -] USE20 FRONT |
90301-99172 |
US $3.84 |
||
|
35307F
|
35307F
90148-06001 Bolt (For Stator Shaft)[12.2007 -] USE20 |
90148-06001 |
US $0.73 |
||
|
35321
|
35321
35321-50080 Gear, Front Oil Pump Drive[12.2007 -] USE20 T=11.66,MARK 0 |
35321-50080 |
US $39.75 |
||
|
35321
|
35321
35321-50090 Gear, Front Oil Pump Drive[12.2007 -] USE20 T=11.66,MARK 1 |
35321-50090 |
US $39.75 |
||
|
35321
|
35321
35321-50100 Gear, Front Oil Pump Drive[12.2007 -] USE20 T=11.66,MARK 2 |
35321-50100 |
US $39.75 |
||
|
35321
|
35321
35321-50110 Gear, Front Oil Pump Drive[12.2007 -] USE20 T=11.66,MARK 3 |
35321-50110 |
US $39.75 |
||
|
35321
|
35321
35321-50120 Gear, Front Oil Pump Drive[12.2007 -] USE20 T=11.66,MARK 4 |
35321-50120 |
US $39.75 |
||
|
35321
|
35321
35321-50130 Gear, Front Oil Pump Drive[12.2007 -] USE20 T=11.66,MARK 5 |
35321-50130 |
US $39.75 |
||
|
35321
|
35321
35321-50140 Gear, Front Oil Pump Drive[12.2007 -] USE20 T=11.66,MARK 6 |
35321-50140 |
US $39.75 |
||
|
35322
|
35322
35322-50080 Gear, Front Oil Pump Driven[12.2007 -] USE20 T=11.66,MARK 0 |
35322-50080 |
US $33.63 |
||
|
35322
|
35322
35322-50090 Gear, Front Oil Pump Driven[12.2007 -] USE20 T=11.66,MARK 1 |
35322-50090 |
US $33.63 |
||
|
35322
|
35322
35322-50100 Gear, Front Oil Pump Driven[12.2007 -] USE20 T=11.66,MARK 2 |
35322-50100 |
US $33.63 |
||
|
35322
|
35322
35322-50110 Gear, Front Oil Pump Driven[12.2007 -] USE20 T=11.66,MARK 3 |
35322-50110 |
US $33.63 |
||
|
35322
|
35322
35322-50120 Gear, Front Oil Pump Driven[12.2007 -] USE20 T=11.66,MARK 4 |
35322-50120 |
US $33.63 |
||
|
35322
|
35322
35322-50130 Gear, Front Oil Pump Driven[12.2007 -] USE20 T=11.66,MARK 5 |
35322-50130 |
US $33.63 |
||
|
35322
|
35322
35322-50140 Gear, Front Oil Pump Driven[12.2007 -] USE20 T=11.66,MARK 6 |
35322-50140 |
US $33.63 |
||
|
35370
|
35370
35370-50040 Shaft Assy, Stator[12.2007 - 08.2012] USE20 |
35370-50040 |
US $266.45 |
||
| replacement | |||||
|
35370
|
35370
35370-50041 Shaft Assy, Stator[12.2007 - 08.2012] USE20 |
35370-50041 |
US $200.93 |
||
|
35370
|
35370
35370-50041 Shaft Assy, Stator[08.2012 -] USE20 |
35370-50041 |
US $200.93 |
||
|
35370B
|
35370B
35608-50020 Spring Sub-Assy, Stator Shaft[12.2007 -] USE20 |
35608-50020 |
US $23.30 |
||
|
35370C
|
35370C
35621-50020 Piston, Stator Shaft[12.2007 -] USE20 |
35621-50020 |
US $36.69 |
||
|
35616B
|
35616B
35616-50010 Washer, Clutch Drum Thrust (For Stator Shaft)[12.2007 -] USE20 |
35616-50010 |
US $4.72 |
||
|
35617
|
35617
35617-50030 Ring, Clutch Drum Oil Seal[12.2007 -] USE20 |
35617-50030 |
from US $4.02 |
||
