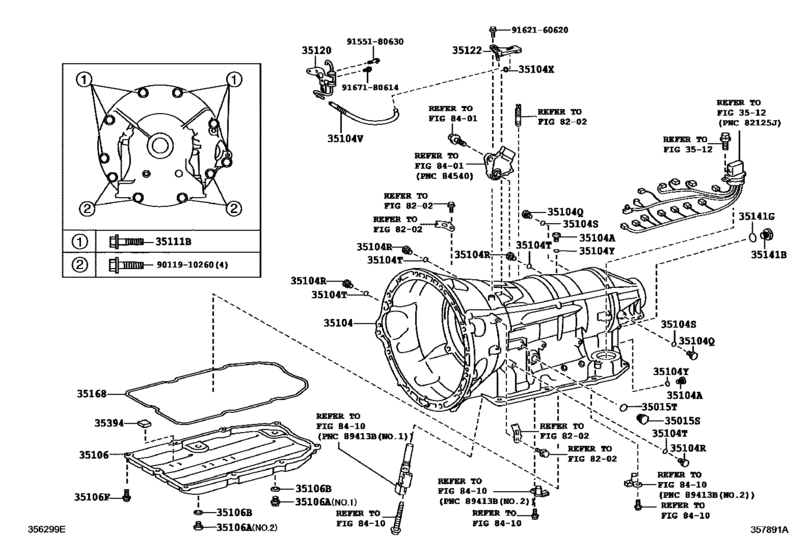

Transmission Case & Oil Pan (Atm) ([12.2007 - ] AA80E (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35015S
|
35015S
90341-18059 Plug, W/head Straight Screw(For Transmission Case Adapter)[12.2007 -] USE20 |
90341-18059 |
from US $2.34 |
||
|
35015T
|
35015T
90301-15004 Ring, O(For Oil Cooler Tube Union)[12.2007 -] USE20 |
90301-15004 |
from US $1.46 |
||
|
35104
|
35104
35104-50030 Case Sub-Assy, Automatic Transmission[12.2007 -] USE20 |
35104-50030 |
US $607.15 |
||
|
35104A
|
35104A
90341-14011 Plug, Automatic Transmission Case[12.2007 -] USE20 |
90341-14011 |
from US $2.34 |
||
|
35104Q
|
35104Q
90341-12036 Plug, No.1 (For Transaxle Case)[12.2007 -] USE20 |
90341-12036 |
US $2.48 |
||
|
35104R
|
35104R
90341-08001 Plug, Transaxle Case, No.1[04.2008 -] USE20 |
90341-08001 |
from US $1.43 |
||
|
35104S
|
35104S
90301-09026 Ring, O (For Transaxle Case Plug No.1)[12.2007 -] USE20 |
90301-09026 |
US $1.79 |
||
|
35104T
|
35104T
90301-06196 O Ring, Transaxle Case, No.1[04.2008 -] USE20 |
90301-06196 |
from US $2.06 |
||
|
35104V
|
35104V
90447-11060 Hose (For Breather Plug)[12.2007 -] USE20 |
90447-11060 |
US $6.26 |
||
|
35104X
|
35104X
90301-04015 Ring, O (For Breather Plug)[12.2007 -] USE20 |
90301-04015 |
US $1.89 |
||
|
35104Y
|
35104Y
90301-11030 Ring, O(For Oil Cooler Tube Union)[12.2007 -] USE20 |
90301-11030 |
from US $1.79 |
||
|
35106
|
35106
35106-30300
Pan Sub-Assy, Automatic Transmission Oil
[12.2007 -] USE20 |
35106-30300 |
— | ||
| replacement | |||||
|
35106
|
35106
35106-30310 Pan Sub-Assy, Automatic Transmission Oil[12.2007 -] USE20 |
35106-30310 |
from US $46.92 |
||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[12.2007 -] USE20 NO.1 |
90341-10011 |
from US $1.24 |
||
|
35106A
|
35106A
90341-10021 Plug, Drain(Hv)[12.2007 -] USE20 NO.2 |
90341-10021 |
from US $1.51 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[12.2007 -] USE20 |
35178-30010 |
from US $1.56 |
||
|
35106F
|
35106F
90119-06982 Bolt (For Automatic Transmission Oil Pan)[12.2007 -] USE20 |
90119-06982 |
US $0.69 |
||
|
35111B
|
35111B
91619-61250 Bolt(For Transmission Case & Engine Setting)[12.2007 -] USE20 *12-1.25PX50-30 |
91619-61250 |
from US $1.79 |
||
|
35120
|
35120
35120-53010 Breather Assy, Transmission[12.2007 - 08.2014] USE20 |
35120-53010 |
US $388.75 |
||
|
35122
|
35122
35122-53020 Tube, Breather (For Automatic Transaxle)[12.2007 -] USE20 |
35122-53020 |
US $37.42 |
||
|
35141B
|
35141B
90341-24017 Plug (For Automatic Transmission Case)[12.2007 -] USE20 |
90341-24017 |
US $3.35 |
||
|
35141G
|
35141G
90301-20013 Ring, O (For Automatic Transmission Case)[12.2007 -] USE20 |
90301-20013 |
US $1.89 |
||
|
35168
|
35168
35168-50010 Gasket, Automatic Transmission Oil Pan[12.2007 -] USE20 |
35168-50010 |
from US $12.93 |
||
|
35394
|
35394
35394-48010 Magnet, Oil Cleaner (For Transmission)[12.2007 -] USE20 |
35394-48010 |
from US $3.58 |
||
|
9011910260
|
9011910260
90119-10260 Bolt (For Transmission Housing & Engine Setting) |
90119-10260 |
from US $2.03 |
||
|
9155180630
|
9155180630
91551-80630 Bolt(For Cylinder Head Cover) |
91551-80630 |
from US $0.59 |
||
|
9162160620
|
9162160620
91621-60620 Bolt, W/washer(For Repair Actuator Set) |
91621-60620 |
US $0.69 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.61 |
||
