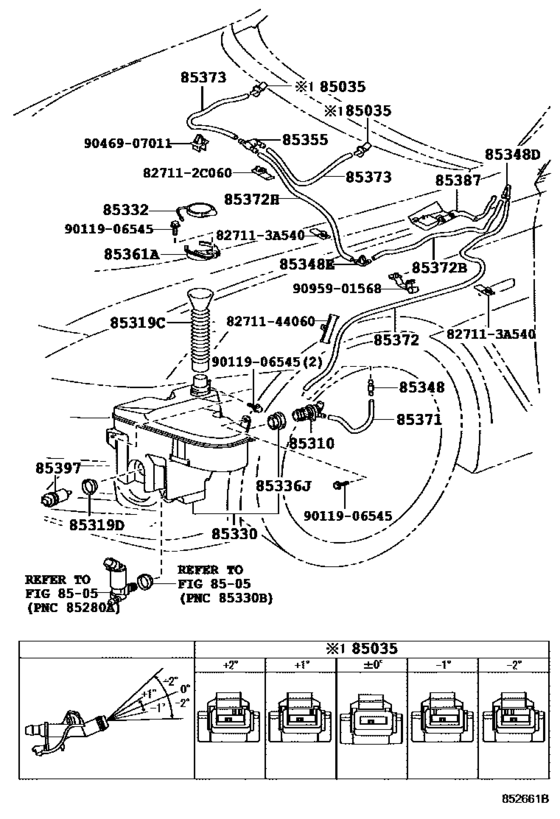

Windshield Washer ([12.2010 - ] (1012- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-30110 Nozzle Sub-Assy, Washer[12.2007 -] USE20 ANGLE 0 |
85381-30110 |
US $12.41 |
||
|
85035
|
85035
85381-30130 Nozzle Sub-Assy, Washer[12.2007 -] USE20 ANGLE +1 |
85381-30130 |
US $6.33 |
||
|
85035
|
85035
85381-30140 Nozzle Sub-Assy, Washer[12.2007 -] USE20 ANGLE -1 |
85381-30140 |
US $6.37 |
||
|
85035
|
85035
85381-30150 Nozzle Sub-Assy, Washer[12.2007 -] USE20 ANGLE +2 |
85381-30150 |
US $6.19 |
||
|
85035
|
85035
85381-30160 Nozzle Sub-Assy, Washer[12.2007 -] USE20 ANGLE -2 |
85381-30160 |
US $6.38 |
||
|
85310
|
85310
85330-60190 Motor And Pump Assy, Windshield Washer[12.2007 -] USE20 |
85330-60190 |
from US $67.32 |
||
|
85319C
|
85319C
85319-30360 Hose, Inlet[12.2007 -] USE20 |
85319-30360 |
from US $3.84 |
||
|
85319D
|
85319D
85319-33230 Packing, Front Washer[12.2007 -] USE20 |
85319-33230 |
from US $2.53 |
||
|
85330
|
85330
85355-30040 Jar Assy, Windshield WasherWINDSHIELD WASHER [12.2007 -] USE20 |
85355-30040 |
US $90.29 |
||
|
85332
|
85332
85316-48050 Cap, Washer, Inlet[12.2007 -] USE20 |
85316-48050 |
from US $1.54 |
||
|
85336J
|
85336J
85336-60300 Bush, Windshield Washer Jar[12.2007 -] USE20 |
85336-60300 |
from US $1.92 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[12.2007 -] USE20 |
85349-89122 |
from US $1.25 |
||
|
85348D
|
85348D
85355-12360 Joint, Windshield Washer Elbow, No.1[12.2007 -] USE20 |
85355-12360 |
US $0.84 |
||
|
85348E
|
85348E
85375-33070 Joint, Windshield Washer Hose, No.1[12.2007 -] USE20 |
85375-33070 |
from US $0.84 |
||
|
85355
|
85355
85321-26020 Valve Sub-Assy, Washer[12.2007 - 12.2010] USE20 |
85321-26020 |
US $1.65 |
||
|
85355
|
85355
85321-28020 Valve Sub-Assy, Washer[12.2010 -] USE20 |
85321-28020 |
from US $8.67 |
||
|
85361A
|
85361A
85337-30380 Bracket, Windshield Washer, No.1[12.2007 -] USE20 |
85337-30380 |
US $1.88 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[12.2007 -] USE20 *H,L=150 |
90099-33080 |
from US $5.62 |
||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[12.2007 -] USE20 *H,L=1330 |
90099-33080 |
from US $5.62 |
||
|
85372B
|
85372B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[12.2007 -] USE20 *H,L=460 |
90099-33080 |
from US $5.62 |
||
|
85372H
|
85372H
90099-33080 Hose, Windshield Washer (From Motor To Joint)[12.2007 -] USE20 *H,L=600 |
90099-33080 |
from US $5.62 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[12.2007 - 12.2010] USE20 *H,L=60 |
90099-33080 |
from US $5.62 |
||
|
85387
|
85387
53446-53020 Clamp No.1 (For Windseield Washer)[12.2007 -] USE20 |
53446-53020 |
US $11.65 |
||
|
85397
|
85397
85397-30400 Switch Assy,level Warning[12.2007 -] USE20 |
85397-30400 |
from US $30.97 |
||
|
827112C060
|
827112C060
82711-2C060 Clamp No.1 (For Windseield Washer) |
82711-2C060 |
US $1.10 |
||
|
827113A540
|
827113A540
82711-3A540 Clamp, Sliding Roof Drain Hose |
82711-3A540 |
from US $0.91 |
||
|
8271144060
|
8271144060
82711-44060 Clamp |
82711-44060 |
US $1.56 |
||
|
9011906545
|
9011906545
90119-06545 BOLT WWASHER |
90119-06545 |
US $1.24 |
||
|
9046907011
|
9046907011
90469-07011 Clamp No.1 (For Windseield Washer) |
90469-07011 |
from US $1.38 |
||
|
9095901568
|
9095901568
90959-01568 Clamp |
90959-01568 |
US $1.38 |
