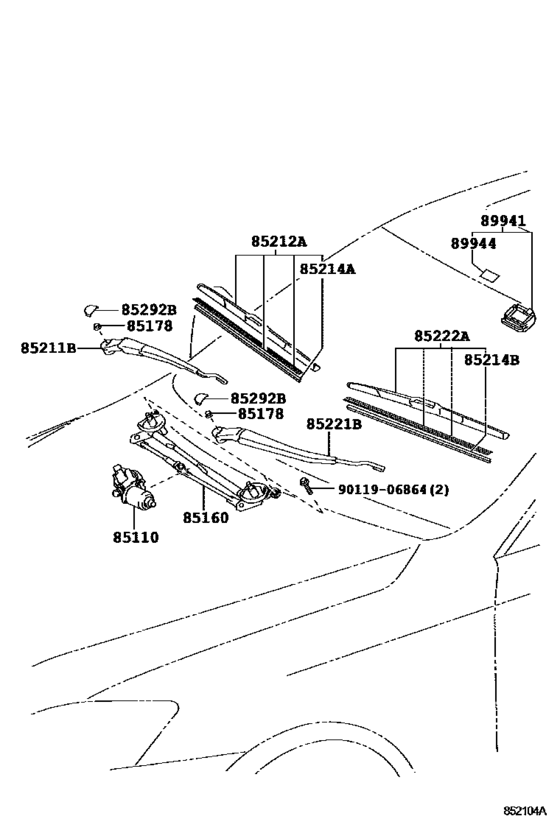

Windshield Wiper ([12.2007 - ] (0712- )RHD) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-26220
Motor Assy, Windshield Wiper
[12.2007 - 05.2009] USE20..RHD |
85110-26220 |
— | ||
| replacement | |||||
|
85110
|
85110
85110-60380 Motor Assy, Windshield Wiper[12.2007 - 05.2009] USE20..RHD |
85110-60380 |
US $265.20 |
||
|
85110
|
85110
85110-60380 Motor Assy, Windshield Wiper[06.2009 -] USE20..RHD |
85110-60380 |
US $265.20 |
||
|
85160
|
85160
85150-53070 Link Assy, Windshield Wiper[12.2007 -] USE20..RHD |
85150-53070 |
US $80.08 |
||
|
85178
|
85178
90179-10223 Nut (For Front Wiper Arm Setting)[12.2007 - 06.2011] USE20 |
90179-10223 |
from US $0.87 |
||
|
85178
|
85178
90182-10006 Nut (For Front Wiper Arm Setting)[07.2011 -] USE20 |
90182-10006 |
from US $0.82 |
||
|
85211B
|
85211B
85211-53060 Arm, Front Wiper, Rh[12.2007 -] USE20..RHD |
85211-53060 |
US $48.21 |
||
|
85212A
|
85212A
85212-53070 Blade, Fr Wiper, Lh[12.2007 -] USE20..RHD |
85212-53070 |
from US $29 |
||
|
85214A
|
85214A
85214-53080 Rubber, Wiper, Rh[12.2007 -] USE20..RHD |
85214-53080 |
from US $10.96 |
||
|
85214B
|
85214B
85214-53090 Rubber, Wiper, Rh[12.2007 -] USE20..RHD |
85214-53090 |
from US $10.83 |
||
|
85221B
|
85221B
85221-53060 Arm, Front Wiper, Lh[12.2007 -] USE20..RHD |
85221-53060 |
US $55.86 |
||
|
85222A
|
85222A
85222-53060 Blade, Fr Wiper, Rh[12.2007 -] USE20..RHD |
85222-53060 |
from US $23.94 |
||
|
85292B
|
85292B
85292-13010 Cover, Windshield Wiper Arm[12.2007 -] USE20 |
85292-13010 |
from US $3.16 |
||
|
89941
|
89941
89941-53011 Sensor, Rain[12.2007 - 07.2008] USE20 |
89941-53011 |
US $493.58 |
||
| replacement | |||||
|
89941
|
89941
89941-53020 Sensor, RainRAIN [12.2007 - 07.2008] USE20 |
89941-53020 |
US $342.16 |
||
|
89941
|
89941
89941-53012 Sensor, Rain[08.2008 - 07.2009] USE20 |
89941-53012 |
US $410.59 |
||
| replacement | |||||
|
89941
|
89941
89941-53020 Sensor, RainRAIN [08.2008 - 07.2009] USE20 |
89941-53020 |
US $342.16 |
||
|
89941
|
89941
89941-53020 Sensor, RainRAIN [08.2009 -] USE20 |
89941-53020 |
US $342.16 |
||
|
89944
|
89944
89944-30020 Tape, Rain Sensor[12.2007 -] USE20 |
89944-30020 |
from US $16.97 |
||
|
9011906864
|
9011906864
90119-06864 BOLT WWASHER |
90119-06864 |
US $0.96 |
||
