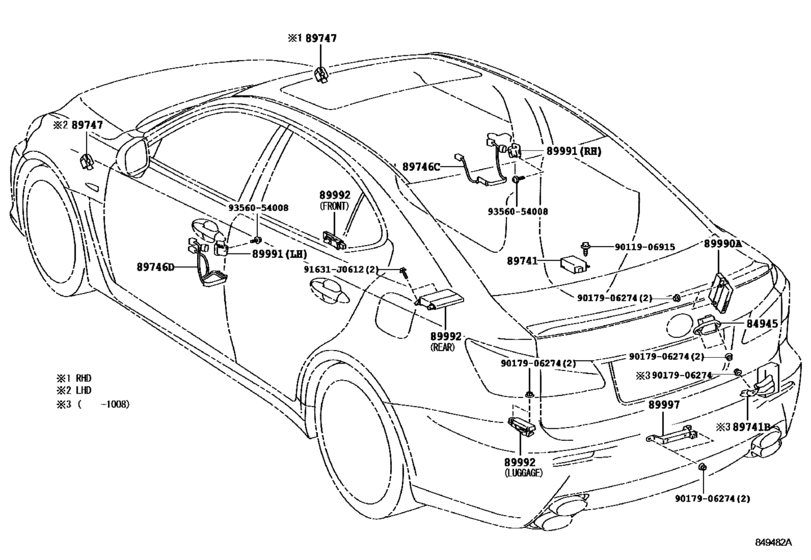

Wireless Door Lock ([12.2007 - ] (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84945
|
84945
84945-53010 Switch, Luggage Electrical Key[12.2007 -] USE20 |
84945-53010 |
from US $49.82 |
||
|
89741
|
89741
89740-53030
Receiver, Door Control
[12.2007 - 08.2012] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC |
89740-53030 |
— | ||
|
89741
|
89741
89740-53052 Receiver, Door ControlDOOR CONTROL [12.2007 - 02.2008] USE20 |
89740-53052 |
US $250.43 |
||
| replacement | |||||
|
89741
|
89741
89740-53321
Receiver, Door Control
[12.2007 - 02.2008] USE20 |
89740-53321 |
— | ||
|
89741
|
89741
89740-53053
Receiver, Door Control
[03.2008 - 05.2010] USE20 |
89740-53053 |
— | ||
| replacement | |||||
|
89741
|
89741
89740-53321
Receiver, Door Control
[03.2008 - 05.2010] USE20 |
89740-53321 |
— | ||
|
89741
|
89741
89740-53320
Receiver, Door Control
[05.2010 -] USE20 |
89740-53320 |
— | ||
| replacement | |||||
|
89741
|
89741
89740-53321
Receiver, Door Control
[05.2010 -] USE20 |
89740-53321 |
— | ||
|
89741
|
89741
89740-53370
Receiver, Door Control
[08.2012 -] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC; USE20..RHD NEW ZEALAND SPEC&WITH(CARD KEY); USE20..RHD AUSTRALIA SPEC&WITH(CARD KEY); USE20..LHD TAIWAN SPEC; USE20..LHD TAIWAN SPEC&WITH(CARD KEY) |
89740-53370 |
— | ||
|
89741B
|
89741B
89740-53040
Receiver, Door Control, No.2
[12.2007 - 08.2010] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC |
89740-53040 |
— | ||
|
89741B
|
89741B
89740-53060 Receiver, Door Control, No.2DOOR CONTROL, NO.2 [12.2007 - 08.2010] USE20 |
89740-53060 |
US $120.85 |
||
|
89746C
|
89746C
89746-53010 Harness, Electrical Key Wire, No.1[12.2007 -] USE20 |
89746-53010 |
US $36.25 |
||
|
89746D
|
89746D
89746-53020 Harness, Electrical Key Wire, No.2[12.2007 -] USE20 |
89746-53020 |
US $36.25 |
||
|
89747
|
89747
89747-52010 Buzzer, Wireless Door Lock[12.2007 -] USE20 |
89747-52010 |
from US $29.60 |
||
|
89990A
|
89990A
89990-53015 Computer Assy, Smart KeySMART KEY [12.2007 - 01.2008] USE20 |
89990-53015 |
US $658.11 |
||
| replacement | |||||
|
89990A
|
89990A
89990-53231 Computer Assy, Smart Key[12.2007 - 01.2008] USE20 |
89990-53231 |
US $659.57 |
||
|
89990A
|
89990A
89990-53016 Computer Assy, Smart KeySMART KEY [02.2008 - 08.2008] USE20 |
89990-53016 |
US $658.11 |
||
| replacement | |||||
|
89990A
|
89990A
89990-53231 Computer Assy, Smart Key[02.2008 - 08.2008] USE20 |
89990-53231 |
US $659.57 |
||
|
89990A
|
89990A
89990-53030
Computer Assy, Smart Key
[08.2008 - 07.2009] USE20 |
89990-53030 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-53172
Computer Assy, Smart Key
[08.2008 - 07.2009] USE20 |
89990-53172 |
— | ||
|
89990A
|
89990A
89990-53070
Computer Assy, Smart Key
[08.2009 - 09.2009] USE20 |
89990-53070 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-53172
Computer Assy, Smart Key
[08.2009 - 09.2009] USE20 |
89990-53172 |
— | ||
|
89990A
|
89990A
89990-53071
Computer Assy, Smart Key
[09.2009 - 04.2010] USE20 |
89990-53071 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-53172
Computer Assy, Smart Key
[09.2009 - 04.2010] USE20 |
89990-53172 |
— | ||
|
89990A
|
89990A
89990-53130
Computer Assy, Smart Key
[05.2010 - 03.2011] USE20 |
89990-53130 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-53172
Computer Assy, Smart Key
[05.2010 - 03.2011] USE20 |
89990-53172 |
— | ||
|
89990A
|
89990A
89990-53131
Computer Assy, Smart Key
[08.2011 - 08.2012] USE20 |
89990-53131 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-53370
Computer Assy, Smart Key
[08.2011 - 08.2012] USE20 |
89990-53370 |
— | ||
|
89990A
|
89990A
89990-53132
Computer Assy, Smart Key
[09.2012 - 09.2013] USE20 |
89990-53132 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-53370
Computer Assy, Smart Key
[09.2012 - 09.2013] USE20 |
89990-53370 |
— | ||
|
89990A
|
89990A
89990-53133
Computer Assy, Smart Key
[09.2013 -] USE20 |
89990-53133 |
— | ||
|
89990A
|
89990A
89990-53170
Computer Assy, Smart Key
[03.2011 - 08.2011] USE20 |
89990-53170 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-53172
Computer Assy, Smart Key
[03.2011 - 08.2011] USE20 |
89990-53172 |
— | ||
|
89991
|
89991
89991-30040 Oscillator, Door Electrical Key[12.2007 - 08.2014] USE20 RH |
89991-30040 |
US $132.79 |
||
|
89991
|
89991
89991-30050 Oscillator, Door Electrical Key[12.2007 - 08.2014] USE20 LH |
89991-30050 |
US $123.76 |
||
|
89992
|
89992
89992-30080 Oscillator, Indoor Electrical KeyINDOOR ELECTRICAL KEY [08.2009 -] USE20 REAR |
89992-30080 |
US $126.67 |
||
|
89992
|
89992
89992-30090 Oscillator, Indoor Electrical Key[12.2007 -] USE20 FRONT |
89992-30090 |
from US $174.72 |
||
|
89992
|
89992
89992-30100 Oscillator, Indoor Electrical Key[12.2007 - 07.2009] USE20 REAR |
89992-30100 |
US $216.94 |
||
|
89992
|
89992
89992-53010 Oscillator, Indoor Electrical Key[12.2007 -] USE20 LUGGAGE |
89992-53010 |
US $180.54 |
||
|
89997
|
89997
89997-30070 Antenna, Electrical Key[08.2011 -] USE20 |
89997-30070 |
from US $60.74 |
||
|
89997
|
89997
89997-41010 Antenna, Electrical Key[12.2007 - 08.2011] USE20 |
89997-41010 |
US $106.60 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9356054008
|
9356054008
93560-54008 New Genuine Part |
93560-54008 |
US $1.08 |
||
