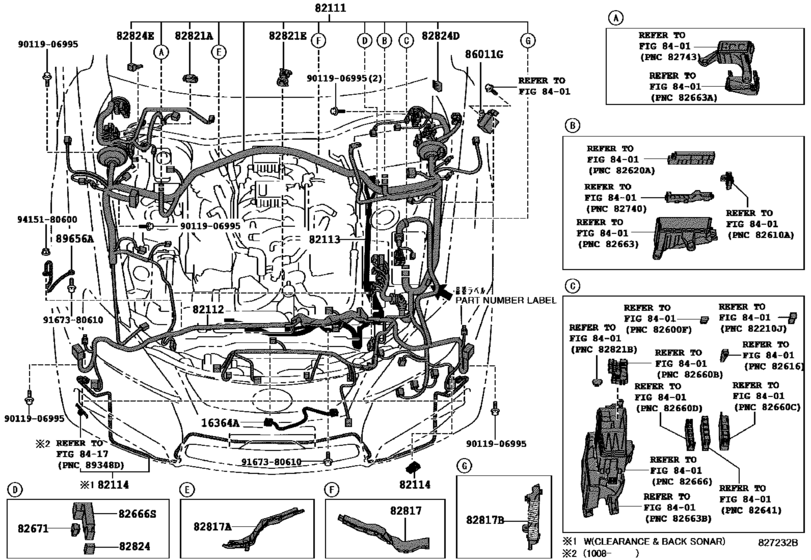

Wiring & Clamp ([12.2007 - ] ENGINE ROOM (0712- )RHD) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16364A
|
16364A
16364-38020 Wire, Cooling Fan[12.2007 - 08.2014] 2URGSE..USE20 |
16364-38020 |
US $19.07 |
||
|
82111
|
82111
82111-53D00
Wire, Engine Room Main
[12.2007 - 08.2009] USE20..RHD; USE20..RHD PART NUMBER LABEL=82111-53D00 |
82111-53D00 |
— | ||
|
82111
|
82111
82111-53D01
Wire, Engine Room Main
[08.2009 - 08.2010] USE20..RHD; USE20..RHD PART NUMBER LABEL=82111-53D01 |
82111-53D01 |
— | ||
|
82111
|
82111
82111-53D02
Wire, Engine Room Main
[08.2010 - 09.2011] USE20..RHD; USE20..RHD PART NUMBER LABEL=82111-53D02 |
82111-53D02 |
— | ||
| replacement | |||||
|
82111
|
82111
82111-53D03
Wire, Engine Room Main
[08.2010 - 09.2011] USE20..RHD; USE20..RHD PART NUMBER LABEL=82111-53D02 |
82111-53D03 |
— | ||
|
82111
|
82111
82111-53D03
Wire, Engine Room Main
[10.2011 - 08.2012] USE20..RHD; USE20..RHD PART NUMBER LABEL=82111-53D03 |
82111-53D03 |
— | ||
|
82111
|
82111
82111-53D04
Wire, Engine Room Main
[08.2012 -] USE20..RHD; USE20..RHD PART NUMBER LABEL=82111-53D04 |
82111-53D04 |
— | ||
|
82112
|
82112
82112-53180 Wire, Engine Room, No.2[12.2007 - 08.2010] USE20 |
82112-53180 |
US $1,505.54 |
||
|
82112
|
82112
82112-53181
Wire, Engine Room, No.2
[08.2010 -] USE20 |
82112-53181 |
— | ||
|
82112
|
82112
82112-53190 Wire, Engine Room, No.2[12.2007 - 08.2010] USE20..RHD PRE-COLLISION SYSTEM-WITH(*PSB & *PBA); USE20 PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
82112-53190 |
US $592.59 |
||
|
82112
|
82112
82112-53191 Wire, Engine Room, No.2[08.2010 -] USE20 PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
82112-53191 |
US $445.54 |
||
|
82113
|
82113
82113-53070 Wire, Engine Room, No.3[12.2007 -] USE20..RHD |
82113-53070 |
US $149.97 |
||
|
82114
|
82114
82114-53030 Wire, Engine Room, No.4[12.2007 - 08.2010] USE20 CLEARANCE & BACK SONAR-WITH |
82114-53030 |
US $38.15 |
||
|
82114
|
82114
82114-53031
Wire, Engine Room, No.4
[08.2010 - 08.2014] USE20 CLEARANCE & BACK SONAR-WITH |
82114-53031 |
— | ||
|
82114
|
82114
82114-53040 Wire, Engine Room, No.4[12.2007 - 08.2014] USE20 |
82114-53040 |
US $5.39 |
||
|
82666S
|
82666S
82666-30A70 Holder, Connector No.2[12.2007 -] USE20 |
82666-30A70 |
US $15 |
||
|
82671
|
82671
82671-30340 Block, Junction[12.2007 -] USE20 |
82671-30340 |
US $10.21 |
||
|
82817
|
82817
82817-53270 Protector, Wiring Harness, No.1[12.2007 -] USE20..RHD |
82817-53270 |
US $23.73 |
||
|
82817A
|
82817A
82817-53280 Protector, Wiring Harness, No.2[12.2007 -] USE20..RHD |
82817-53280 |
US $16.16 |
||
|
82817B
|
82817B
82817-53290 Protector, Wiring Harness, No.3[12.2007 -] USE20 |
82817-53290 |
US $14.41 |
||
|
82821A
|
82821A
82821-22120 Cover, Connector[12.2007 -] USE20..RHD |
82821-22120 |
US $2.48 |
||
|
82821E
|
82821E
82821-30650 Retainer, Headlamp Harness[12.2007 -] USE20 |
82821-30650 |
US $1.08 |
||
|
82824
|
82824
82824-28180 Connector, Wiring Harness[12.2007 -] USE20 |
82824-28180 |
US $6.41 |
||
|
82824D
|
82824D
82824-30130 Connector, Wiring Harness[12.2007 -] USE20 |
82824-30130 |
US $3.94 |
||
|
82824E
|
82824E
82824-48020 Connector, Wiring Harness[12.2007 -] USE20 |
82824-48020 |
from US $24.38 |
||
|
86011G
|
86011G
82930-30040 Condenser Assy, Wiring Harness, No.1[11.2011 -] USE20..RHD |
82930-30040 |
US $69.31 |
||
|
86011G
|
86011G
86516-30470 Condenser[12.2007 - 11.2011] USE20..RHD |
86516-30470 |
US $67.56 |
||
|
89656A
|
89656A
89656-53020 Wire, Power Steering Earth[12.2007 -] USE20..RHD |
89656-53020 |
US $10.63 |
||
|
9011906995
|
9011906995
90119-06995 BOLT WWASHER |
90119-06995 |
US $1.08 |
||
|
9167380610
|
9167380610
91673-80610 New Genuine Part |
91673-80610 |
US $0.83 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
