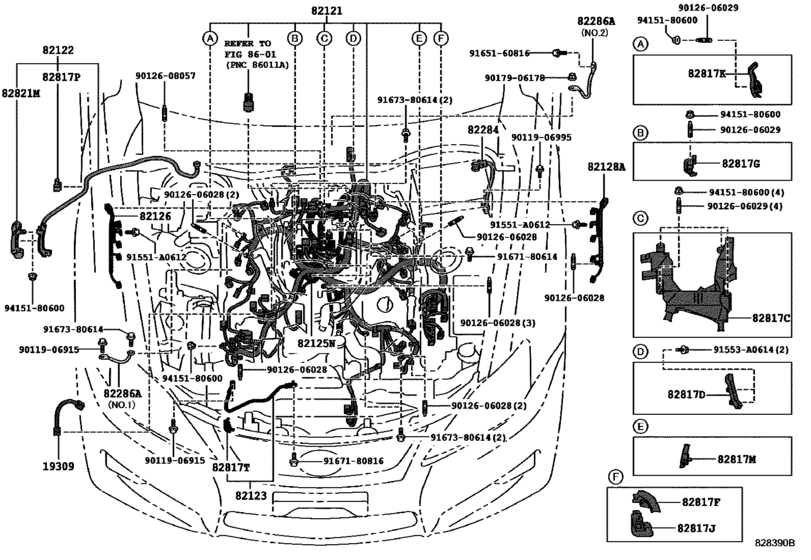

Wiring & Clamp ([12.2007 - 08.2012] ENGINE (0712-1208)RHD) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19309
|
19309
19309-38011 Harness Sub-Assy, Cam Position Sensor[12.2007 -] 2URGSE..USE20 |
19309-38011 |
US $12.67 |
||
|
82121
|
82121
82121-53370
Wire, Engine
[12.2007 - 08.2010] USE20..RHD |
82121-53370 |
— | ||
|
82121
|
82121
82121-53371 Wire, Engine[08.2010 -] USE20..RHD |
82121-53371 |
US $1,054.14 |
||
|
82122
|
82122
82122-53130 Wire, Engine, No.2[12.2007 -] USE20..RHD |
82122-53130 |
US $66.54 |
||
|
82123
|
82123
82123-30530 Wire, Engine, No.3[12.2007 -] USE20 |
82123-30530 |
US $35.82 |
||
|
82125N
|
82125N
82125-50080 Wire, Engine, No.5[12.2007 -] USE20 |
82125-50080 |
US $161.60 |
||
|
82126
|
82126
82126-53010
Wire, Engine
[12.2007 -] USE20 |
82126-53010 |
— | ||
|
82128A
|
82128A
82127-53010 Wire, Engine, No.8[12.2007 -] USE20 |
82127-53010 |
US $34.75 |
||
|
82284
|
82284
82284-53040 Wire, Earth[12.2007 - 08.2012] USE20..RHD |
82284-53040 |
US $57.22 |
||
|
82284
|
82284
82284-53080 Wire, Earth[08.2012 -] USE20..RHD |
82284-53080 |
US $39.75 |
||
|
82286A
|
82286A
82286-30010 Wire, Earth, No.2[12.2007 -] USE20 NO.1 |
82286-30010 |
US $10.63 |
||
|
82286A
|
82286A
82286-50010 Cable, Bond, No.1[12.2007 -] USE20 NO.2 |
82286-50010 |
US $12.08 |
||
|
82817C
|
82817C
82817-30L40 Protector, Wiring Harness, No.1[12.2007 -] USE20 |
82817-30L40 |
US $79.46 |
||
|
82817D
|
82817D
82817-30L50 Protector, Wiring Harness, No.2[12.2007 -] USE20 |
82817-30L50 |
US $8.30 |
||
|
82817F
|
82817F
82817-30L80 Protector, Wiring Harness, No.3[12.2007 -] USE20 |
82817-30L80 |
US $7.72 |
||
|
82817G
|
82817G
82817-30L90 Protector, Wiring Harness, No.5[12.2007 -] USE20 |
82817-30L90 |
US $4.95 |
||
|
82817J
|
82817J
82817-30M90 Protector, Wiring Harness, No.8[12.2007 -] USE20 |
82817-30M90 |
US $6.55 |
||
|
82817K
|
82817K
82817-50E50 Protector, Wiring Harness, No.6[12.2007 -] USE20 |
82817-50E50 |
US $6.70 |
||
|
82817M
|
82817M
82817-30L70 Protector, Wiring Harness, No.6[12.2007 -] USE20..RHD |
82817-30L70 |
US $2.91 |
||
|
82817P
|
82817P
82817-53350 Protector, Wiring Harness, No.14[12.2007 -] USE20 |
82817-53350 |
US $3.93 |
||
|
82817T
|
82817T
82817-30K00 Protector, Wiring Harness, No.10[12.2007 -] USE20 |
82817-30K00 |
US $6.70 |
||
|
82821M
|
82821M
82821-30730 Cover, Connector[12.2007 - 08.2014] USE20 |
82821-30730 |
US $10.21 |
||
|
91551A0612
|
91551A0612
91551-A0612 New Genuine Part |
91551-A0612 |
US $1.08 |
||
|
91553A0614
|
91553A0614
91553-A0614 BOLT FLANGE |
91553-A0614 |
US $1.08 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9011906995
|
9011906995
90119-06995 BOLT WWASHER |
90119-06995 |
US $1.08 |
||
|
9012606028
|
9012606028
90126-06028 Bolt, Stud(For Oil Pan) |
90126-06028 |
from US $0.63 |
||
|
9012606029
|
9012606029
90126-06029 Bolt, Stud(For Vacuum Transmitting Pipe) |
90126-06029 |
from US $0.65 |
||
|
9012608057
|
9012608057
90126-08057 New Genuine Part |
90126-08057 |
US $1.02 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.76 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.76 |
||
|
9167380614
|
9167380614
91673-80614 BOLT, FLANGE W/WASER |
91673-80614 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
