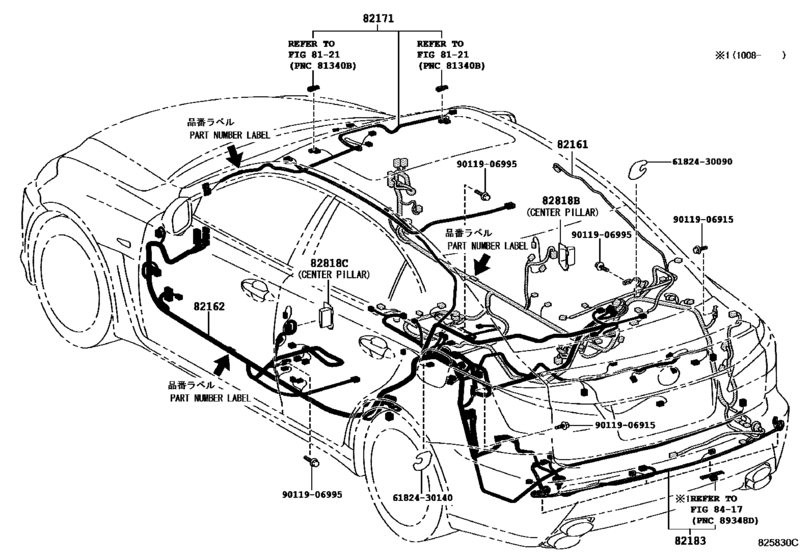

Wiring & Clamp ([12.2007 - ] FLOOR & ROOF (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82161
|
82161
82161-53640
Wire, Floor
[12.2007 - 08.2008] USE20..RHD; USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD PART NUMBER LABEL=82161-53640 |
82161-53640 |
— | ||
|
82161
|
82161
82161-53641
Wire, Floor
[08.2008 - 08.2009] USE20..RHD; USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD PART NUMBER LABEL=82161-53641 |
82161-53641 |
— | ||
|
82161
|
82161
82161-53650
Wire, Floor
[12.2007 - 08.2008] USE20..RHD AUDIO-AM/FM CD CHANGER *MAR 14SPEAKER; USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD PART NUMBER LABEL=82161-53650 |
82161-53650 |
— | ||
|
82161
|
82161
82161-53651
Wire, Floor
[08.2008 - 08.2009] USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD PART NUMBER LABEL=82161-53651 |
82161-53651 |
— | ||
|
82161
|
82161
82161-53652
Wire, Floor
[08.2009 - 08.2010] USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD PART NUMBER LABEL=82161-53652 |
82161-53652 |
— | ||
|
82161
|
82161
82161-53700
Wire, Floor
[12.2007 - 08.2008] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC; USE20..RHD PART NUMBER LABEL=82161-53700 |
82161-53700 |
— | ||
|
82161
|
82161
82161-53701
Wire, Floor
[08.2008 - 08.2009] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC; USE20..RHD PART NUMBER LABEL=82161-53701 |
82161-53701 |
— | ||
|
82161
|
82161
82161-53710 Wire, FloorFLOOR [12.2007 - 08.2008] USE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM CD CHANGER *MAR 14SPEAKER; USE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM CD CHANGER *MAR 14SPEAKER; USE20..RHD AUSTRALIA SPEC&AUDIO-AM |
82161-53710 |
US $1,356.99 |
||
|
82161
|
82161
82161-53711
Wire, Floor
[08.2008 - 08.2009] USE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD PART NUMBER LABEL=82161-53711 |
82161-53711 |
— | ||
|
82161
|
82161
82161-53712
Wire, Floor
[08.2009 - 08.2010] USE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD PART NUMBER LABEL=82161-53712 |
82161-53712 |
— | ||
|
82161
|
82161
82161-53713
Wire, Floor
[08.2010 - 08.2012] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC; USE20..RHD PART NUMBER LABEL=82161-53713 |
82161-53713 |
— | ||
|
82161
|
82161
82161-53714
Wire, Floor
[08.2012 -] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC; USE20..RHD PART NUMBER LABEL=82161-53714 |
82161-53714 |
— | ||
|
82161
|
82161
82161-53A60
Wire, Floor
[08.2009 - 08.2010] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC; USE20..RHD PART NUMBER LABEL=82161-53A60 |
82161-53A60 |
— | ||
|
82161
|
82161
82161-53A70
Wire, Floor
[08.2009 - 08.2010] USE20..RHD; USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD PART NUMBER LABEL=82161-53A70 |
82161-53A70 |
— | ||
|
82161
|
82161
82161-53B20
Wire, Floor
[08.2010 - 08.2012] USE20..RHD; USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD PART NUMBER LABEL=82161-53B20 |
82161-53B20 |
— | ||
|
82161
|
82161
82161-53B21
Wire, Floor
[08.2012 -] USE20..RHD; USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD PART NUMBER LABEL=82161-53B21 |
82161-53B21 |
— | ||
|
82162
|
82162
82162-53890
Wire, Floor, No.2
[12.2007 - 08.2008] USE20..RHD; USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD PART NUMBER LABEL=82162-53890 |
82162-53890 |
— | ||
|
82162
|
82162
82162-53891
Wire, Floor, No.2
[08.2008 - 08.2009] USE20..RHD; USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD PART NUMBER LABEL=82162-53891 |
82162-53891 |
— | ||
|
82162
|
82162
82162-53892
Wire, Floor, No.2
[08.2009 - 08.2010] USE20..RHD; USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD PART NUMBER LABEL=82162-53892 |
82162-53892 |
— | ||
|
82162
|
82162
82162-53A00
Wire, Floor, No.2
[12.2007 - 08.2008] USE20..RHD AUDIO-AM/FM CD CHANGER *MAR 14SPEAKER; USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATIO N); USE20..RHD PART NUMBER LABEL=82162-53A00 |
82162-53A00 |
— | ||
|
82162
|
82162
82162-53A01
Wire, Floor, No.2
[08.2008 - 08.2009] USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATIO N); USE20..RHD PART NUMBER LABEL=82162-53A01 |
82162-53A01 |
— | ||
|
82162
|
82162
82162-53A02
Wire, Floor, No.2
[08.2009 - 08.2010] USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVI); USE20..RHD PART NUMBER LABEL=82162-53A02 |
82162-53A02 |
— | ||
|
82162
|
82162
82162-53A42 Wire, Floor, No.2FLOOR, NO.2 [08.2010 -] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC; USE20..RHD PART NUMBER LABEL=82162-53A42 |
82162-53A42 |
US $1,169.17 |
||
|
82162
|
82162
82162-53A50
Wire, Floor, No.2
[12.2007 - 08.2008] USE20..RHD NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA); USE20..RHD AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA); USE20..RHD PART NUMBER LABEL=82162-53A50 |
82162-53A50 |
— | ||
|
82162
|
82162
82162-53A51
Wire, Floor, No.2
[08.2008 - 08.2009] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC; USE20..RHD PART NUMBER LABEL=82162-53A51 |
82162-53A51 |
— | ||
|
82162
|
82162
82162-53A52
Wire, Floor, No.2
[08.2009 - 08.2010] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC; USE20..RHD PART NUMBER LABEL=82162-53A52 |
82162-53A52 |
— | ||
|
82162
|
82162
82162-53A60
Wire, Floor, No.2
[12.2007 - 08.2008] USE20..RHD NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&AUDIO-AM/FM CD CHANGER *MA R 14SPEAKER; USE20..RHD NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&AUDIO-AM/FM DVD CHANGER 5. 1CH 14SPEAKER&EMV & NAVIGATION SYS |
82162-53A60 |
— | ||
|
82162
|
82162
82162-53A61
Wire, Floor, No.2
[08.2008 - 08.2009] USE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-W ITH(GPS NAVIGATION); USE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WIT H(GPS NAVIGATION); USE20.. |
82162-53A61 |
— | ||
|
82162
|
82162
82162-53A62
Wire, Floor, No.2
[08.2009 - 08.2010] USE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-W ITH(GPS NAVIGATION); USE20..RHD AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WIT H(GPS NAVIGATION); USE20.. |
82162-53A62 |
— | ||
|
82171
|
82171
82171-53310 Wire, Roof, No.1[12.2007 - 08.2008] USE20; USE20 PART NUMBER LABEL=82171-53310 |
82171-53310 |
US $139.78 |
||
|
82171
|
82171
82171-53311 Wire, Roof, No.1[08.2008 - 08.2009] USE20; USE20 PART NUMBER LABEL=82171-53311 |
82171-53311 |
US $116.48 |
||
|
82171
|
82171
82171-53312 Wire, Roof, No.1ROOF, NO.1 [08.2009 - 08.2014] USE20; USE20 PART NUMBER LABEL=82171-53312 |
82171-53312 |
US $96.10 |
||
|
82171
|
82171
82171-53350
Wire, Roof, No.1
[12.2007 - 08.2008] USE20 MOON ROOF-WITH(AUTO SLIDE); USE20 PART NUMBER LABEL=82171-53350 |
82171-53350 |
— | ||
|
82171
|
82171
82171-53351
Wire, Roof, No.1
[08.2008 - 08.2009] USE20 MOON ROOF-WITH(AUTO SLIDE); USE20 PART NUMBER LABEL=82171-53351 |
82171-53351 |
— | ||
|
82171
|
82171
82171-53370 Wire, Roof, No.1[12.2007 - 08.2008] USE20 MOON ROOF-WITH(AUTO SLIDE)&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20 PART NUMBER LABEL=82171-53370 |
82171-53370 |
US $168.90 |
||
|
82171
|
82171
82171-53371 Wire, Roof, No.1[08.2008 - 08.2009] USE20 MOON ROOF-WITH(AUTO SLIDE)&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20 PART NUMBER LABEL=82171-53371 |
82171-53371 |
US $138.32 |
||
|
82171
|
82171
82171-53372 Wire, Roof, No.1ROOF, NO.1 [08.2009 - 08.2010] USE20..RHD MOON ROOF-WITH(AUTO SLIDE)&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER; USE20..RHD PART NUMBER LABEL=82171-53372 |
82171-53372 |
US $115.02 |
||
|
82183
|
82183
82183-53010 Wire, Luggage Room, No.3[12.2007 - 08.2010] USE20 CLEARANCE & BACK SONAR-WITH |
82183-53010 |
US $59.80 |
||
|
82183
|
82183
82183-53011
Wire, Luggage Room, No.3
[08.2010 - 08.2014] USE20 CLEARANCE & BACK SONAR-WITH |
82183-53011 |
— | ||
|
82818B
|
82818B
82817-1A761 Protector, Wiring Harness, No.1[12.2007 -] USE20 CENTER PILLAR; USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER,CENTER PILLAR |
82817-1A761 |
US $9.32 |
||
|
82818B
|
82818B
82817-53240 Protector, Wiring Harness, No.7[12.2007 -] USE20 COWL SIDE |
82817-53240 |
US $7.72 |
||
|
82818C
|
82818C
82817-1A830 Protector, Wiring Harness, No.1[12.2007 -] USE20 CENTER PILLAR; USE20..RHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER,CENTER PILLAR |
82817-1A830 |
US $8.30 |
||
|
82818C
|
82818C
82817-53250 Protector, Wiring Harness, No.8[12.2007 -] USE20 COWL SIDE |
82817-53250 |
US $7.72 |
||
|
6182430090
|
6182430090
61824-30090 Plate, Noise Control, No.1 |
61824-30090 |
US $17.47 |
||
|
6182430140
|
6182430140
61824-30140 Plate, Noise Control, No.1 |
61824-30140 |
US $18.20 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9011906995
|
9011906995
90119-06995 BOLT WWASHER |
90119-06995 |
US $1.08 |
