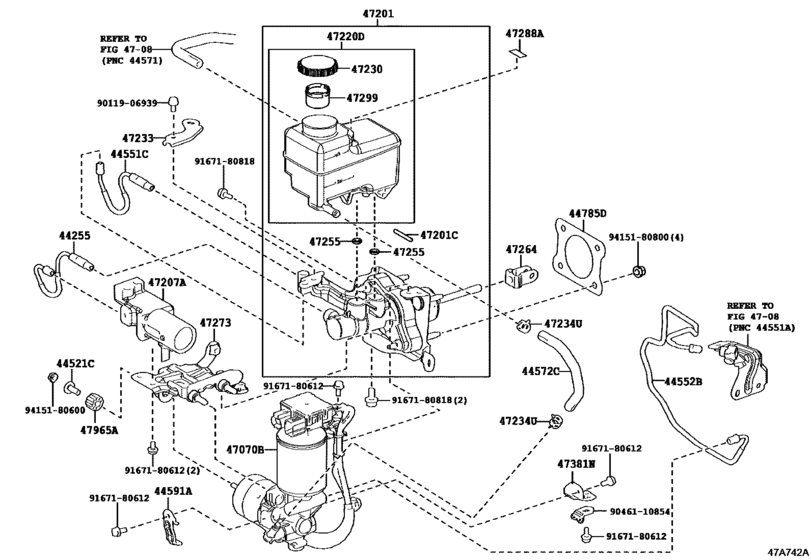

Brake Master Cylinder ([03.2017 - ] (1703- )LHD) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44255
|
44255
44255-11010
Tube, Brake Master Cylinder
[03.2017 -] GWZ100,URZ100..LHD |
44255-11010 |
— | ||
|
44521C
|
44521C
44521-47010 Collar, Brake Actuator Case, No.1[03.2017 -] GWZ100,URZ100 |
44521-47010 |
from US $1.20 |
||
|
44551C
|
44551C
44551-11030
Tube, Brake Actuator, No.1
[03.2017 -] GWZ100,URZ100..LHD |
44551-11030 |
— | ||
|
44552B
|
44552B
44552-11030
Tube, Brake Actuator, No.2
[03.2017 -] GWZ100,URZ100..LHD |
44552-11030 |
— | ||
|
44572C
|
44572C
44572-11010
Hose, Brake Actuator, No.2
[03.2017 -] GWZ100,URZ100..LHD |
44572-11010 |
— | ||
|
44591A
|
44591A
44591-11030
Bracket, Brake Actuator, No.1
[03.2017 -] GWZ100,URZ100..LHD |
44591-11030 |
— | ||
|
44785D
|
44785D
44785-12040 Gasket, Brake Booster[03.2017 -] GWZ100,URZ100 |
44785-12040 |
from US $2.98 |
||
|
47070B
|
47070B
47070-11030
Pump Assy, Brake Booster W/accumulator
[03.2017 -] GWZ100,URZ100..LHD |
47070-11030 |
— | ||
|
47201
|
47201
47201-11030
Cylinder Sub-Assy, Brake Master
[03.2017 -] GWZ100,URZ100..LHD |
47201-11030 |
— | ||
|
47201C
|
47201C
90029-15803 Ring Pin, Brake Master Cylinder[03.2017 -] GWZ100,URZ100 |
90029-15803 |
US $1.05 |
||
|
47207A
|
47207A
47207-11010
Cylinder Sub-Assy, Brake Stroke Simulator
[03.2017 -] GWZ100,URZ100..LHD |
47207-11010 |
— | ||
|
47220D
|
47220D
47220-11010
Reservoir Assy, Brake Master Cylinder
[03.2017 -] GWZ100,URZ100..LHD |
47220-11010 |
— | ||
|
47230
|
47230
47230-11010 Cap Assy, Brake Master Cylinder Reservoir Filler[03.2017 -] GWZ100,URZ100 |
47230-11010 |
from US $11.74 |
||
|
47233
|
47233
47233-11010
Bracket, Reservoir
[03.2017 -] GWZ100,URZ100..LHD |
47233-11010 |
— | ||
|
47234U
|
47234U
96137-51501 Clip(For Water By-Pass Hose Assy)[03.2017 -] GWZ100,URZ100 |
96137-51501 |
US $2.15 |
||
|
47255
|
47255
90029-48001 Grommet, Master Cylinder Reservoir[03.2017 -] GWZ100,URZ100 |
90029-48001 |
US $6.45 |
||
|
47264
|
47264
47264-63020 Clevis, Master Cylinder Push Rod[03.2017 -] GWZ100,URZ100 |
47264-63020 |
from US $3.49 |
||
|
47273
|
47273
47273-11010
Bracket, Brake Stroke Simulator
[03.2017 -] GWZ100,URZ100..LHD |
47273-11010 |
— | ||
|
47299
|
47299
47299-30190 Strainer, Brake Master Cylinder Reservoir[03.2017 -] GWZ100,URZ100 |
47299-30190 |
US $6.26 |
||
|
47381N
|
47381N
47381-11010
Bracket, Tube Clamp
[03.2017 -] GWZ100,URZ100..LHD |
47381-11010 |
— | ||
|
47965A
|
47965A
47965-30010 Bush, Brake Booster Pump[03.2017 -] GWZ100,URZ100 |
47965-30010 |
from US $3.76 |
||
|
9011906939
|
9011906939
90119-06939 Bolt, Hood Lock |
90119-06939 |
from US $0.63 |
||
|
9046110854
|
9046110854
90461-10854 Clamp, Brake Tube, No.6 |
90461-10854 |
US $2.18 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.65 |
||
|
9167180818
|
9167180818
91671-80818 BOLT FLANGE |
91671-80818 |
from US $0.84 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
