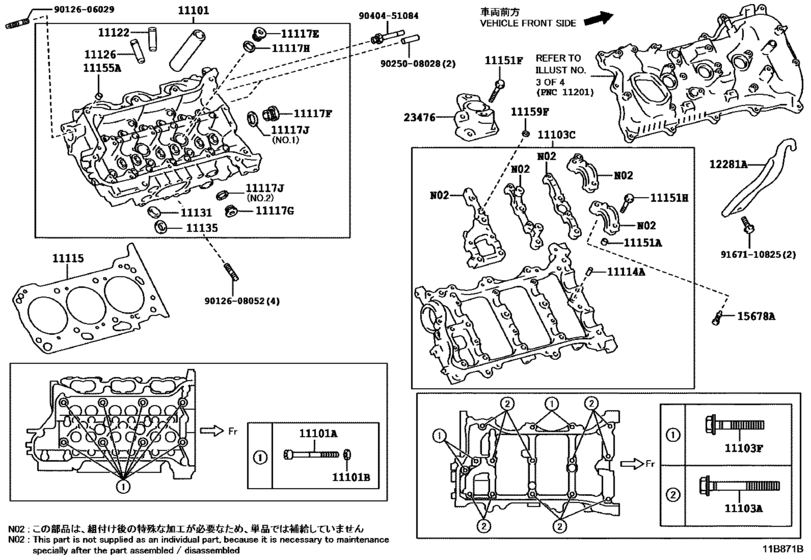

Cylinder Head ([03.2017 - ] CYLINDER HEAD(RH BANK) (1703- )8GRFXS) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-80005 Head Sub-Assy, Cylinder[03.2017 -] 8GRFXS..GWZ100 |
11101-80005 |
US $1,394.85 |
||
|
11101A
|
11101A
90910-02164 Bolt(For Cylinder Head Set)[03.2017 -] 8GRFXS..GWZ100 |
90910-02164 |
from US $5.56 |
||
|
11101B
|
11101B
90201-11034 Washer, Plate(For Cylinder Head Set)[03.2017 -] 8GRFXS..GWZ100 |
90201-11034 |
from US $0.87 |
||
|
11103A
|
11103A
90105-08464 Bolt(For Camshaft Housing Set)[03.2017 -] 8GRFXS..GWZ100 |
90105-08464 |
US $1.24 |
||
|
11103C
|
11103C
11103-31060 Housing Sub-Assy, Camshaft[03.2017 -] 8GRFXS..GWZ100 |
11103-31060 |
US $267.90 |
||
|
11103F
|
11103F
90105-08465 Bolt(For Camshaft Housing To Cylinder Head, Rh)[03.2017 -] 8GRFXS..GWZ100 |
90105-08465 |
US $1.31 |
||
|
11114A
|
11114A
90250-05021 Pin, Straight[03.2017 -] 8GRFXS..GWZ100 L=13.8,OD=5.0 |
90250-05021 |
from US $0.67 |
||
|
11115
|
11115
11115-31120 Gasket, Cylinder Head[03.2017 -] 8GRFXS..GWZ100 |
11115-31120 |
from US $41.19 |
||
|
11117E
|
11117E
90341-20012 Plug, W/head Straight Screw, No.1[03.2017 -] 8GRFXS..GWZ100 |
90341-20012 |
US $3.58 |
||
|
11117F
|
11117F
90341-27006 Plug, W/head Straight Screw, No.1[03.2017 -] 8GRFXS..GWZ100; 2URGSE..URZ100 |
90341-27006 |
from US $5.73 |
||
|
11117G
|
11117G
90341-20002 Plug, W/head Taper Screw, No.1[03.2017 -] 8GRFXS..GWZ100 |
90341-20002 |
from US $2.95 |
||
|
11117H
|
11117H
90430-20004 Gasket(For Cylinder Head Screw Plug)[03.2017 -] 8GRFXS..GWZ100 |
90430-20004 |
from US $0.93 |
||
|
11117J
|
11117J
16258-31020 Gasket(For Cylinder Head Screw Plug)[03.2017 -] 8GRFXS..GWZ100 NO.2 |
16258-31020 |
US $3.64 |
||
|
11117J
|
11117J
90430-27005 Gasket(For Cylinder Head Screw Plug)[03.2017 -] 8GRFXS..GWZ100 NO.1; 2URGSE..URZ100 |
90430-27005 |
from US $1.25 |
||
|
11122
|
11122
11122-31070 Bush, Intake Valve Guide[03.2017 -] 8GRFXS..GWZ100 STD |
11122-31070 |
from US $7.02 |
||
|
11122
|
11122
11123-31070 Bush, Intake Valve Guide[03.2017 -] 8GRFXS..GWZ100 O/S 0.05 |
11123-31070 |
US $7.43 |
||
|
11126
|
11126
11126-31030 Bush, Exhaust Valve Guide[03.2017 -] 8GRFXS..GWZ100 STD |
11126-31030 |
US $7.02 |
||
|
11126
|
11126
11127-31030 Bush, Exhaust Valve Guide[03.2017 -] 8GRFXS..GWZ100 O/S 0.05 |
11127-31030 |
US $7.02 |
||
|
11131
|
11131
11131-31050 Seat, Intake Valve[03.2017 -] 8GRFXS..GWZ100 STD |
11131-31050 |
US $9.26 |
||
|
11131
|
11131
11132-31050 Seat, Intake Valve[03.2017 -] 8GRFXS..GWZ100 O/S 0.03 |
11132-31050 |
US $10.34 |
||
|
11135
|
11135
11135-31110 Seat, Exhaust Valve[03.2017 -] 8GRFXS..GWZ100 STD |
11135-31110 |
US $10.34 |
||
|
11135
|
11135
11136-31110 Seat, Exhaust Valve[03.2017 -] 8GRFXS..GWZ100 O/S 0.03 |
11136-31110 |
US $10.34 |
||
|
11151A
|
11151A
90253-11021 Pin, Ring[03.2017 -] 8GRFXS..GWZ100 L=8,OD=11 |
90253-11021 |
from US $1.41 |
||
|
11151F
|
11151F
90119-07008 Bolt(For Camshaft Bearing Cap To Housing Rh, No.2)[03.2017 -] 8GRFXS..GWZ100 |
90119-07008 |
US $1.61 |
||
|
11151H
|
11151H
90119-07009 Bolt(For Camshaft Housing Set)[03.2017 -] 8GRFXS..GWZ100 |
90119-07009 |
from US $0.82 |
||
|
11155A
|
11155A
90253-11021 Pin, Ring[03.2017 -] 8GRFXS..GWZ100 |
90253-11021 |
from US $1.41 |
||
|
11159F
|
11159F
11159-31040 Gasket, Camshaft Bearing Cap Oil Hole, Rh[03.2017 -] 8GRFXS..GWZ100 |
11159-31040 |
US $6.09 |
||
|
12281A
|
12281A
12281-31070 Hanger, Engine, No.1[03.2017 -] 8GRFXS..GWZ100 |
12281-31070 |
US $32.53 |
||
|
15678A
|
15678A
15678-31020 Filter, Oil Control Valve[03.2017 -] 8GRFXS..GWZ100 |
15678-31020 |
from US $3.21 |
||
|
23476
|
23476
23476-31020 Housing, Fuel Pump Lifter[03.2017 -] 8GRFXS..GWZ100 |
23476-31020 |
US $37.91 |
||
|
9012606029
|
9012606029
90126-06029 Bolt, Stud(For Vacuum Transmitting Pipe) |
90126-06029 |
from US $0.65 |
||
|
9025008028
|
9025008028
90250-08028 Pin, Straight |
90250-08028 |
US $1.60 |
||
|
9040451084
|
9040451084
90404-51084 UNION |
90404-51084 |
US $2.87 |
||
|
9167110825
|
9167110825
91671-10825 BOLT, FLANGE |
91671-10825 |
US $1.43 |
