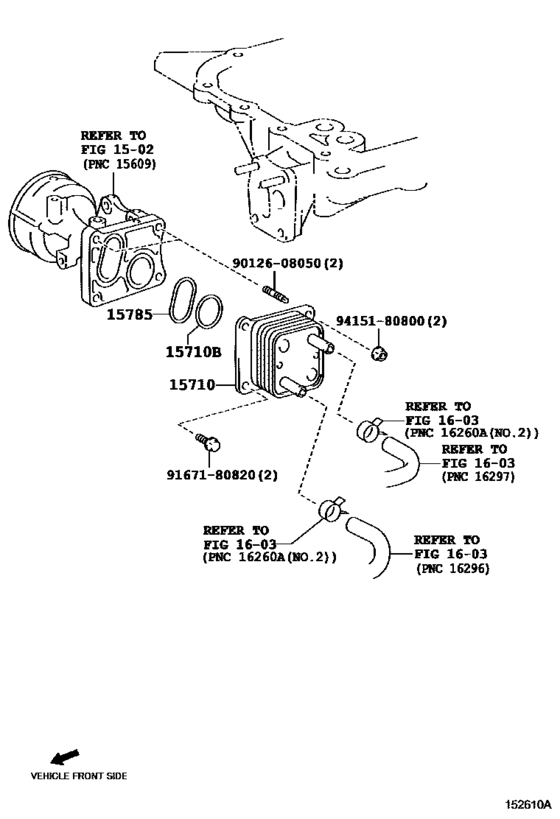

Engine Oil Cooler ([03.2017 - ] (1703- )8GRFXS) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15710
|
15710
15710-31080
Cooler Assy, Oil
[03.2017 -] 8GRFXS..GWZ100..LHD |
15710-31080 |
— | ||
|
15710B
|
15710B
96723-35035
Ring, O(For Oil Cooler)
[03.2017 -] 8GRFXS..GWZ100..LHD |
96723-35035 |
— | ||
|
15785
|
15785
15785-31030
Gasket, Oil Cooler
[03.2017 -] 8GRFXS..GWZ100..LHD |
15785-31030 |
— | ||
|
9012608050
|
9012608050
90126-08050 New Genuine Part |
90126-08050 |
US $1.43 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.78 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
