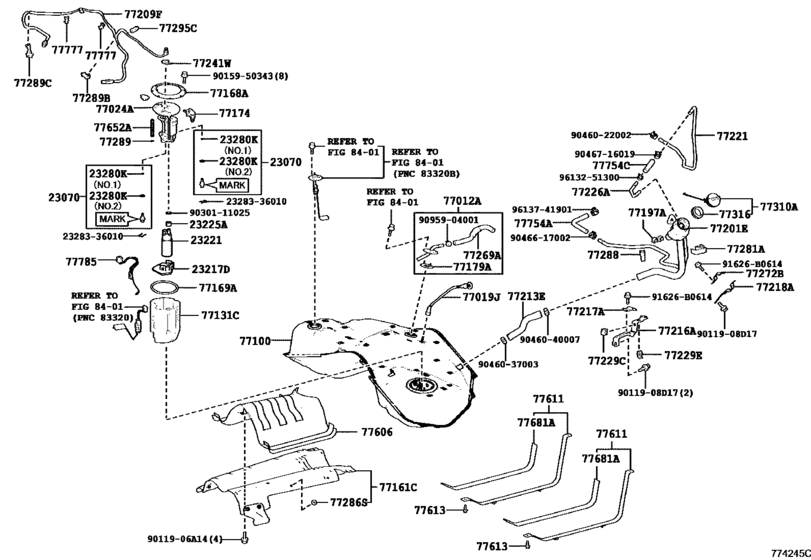

Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23070
|
23070
23070-31030 Valve Assy, Fuel Main[03.2017 -] 8GRFXS,2URGSE..GWZ100,URZ100 MARK 23070-31030 |
23070-31030 |
from US $26.81 |
||
|
23070
|
23070
23070-36010 Valve Assy, Fuel Main[03.2017 -] 8GRFXS..GWZ100 MARK 23070-36010 |
23070-36010 |
from US $27.04 |
||
|
23217D
|
23217D
23217-31080 Filter, Fuel Pump[03.2017 -] 8GRFXS,2URGSE..GWZ100,URZ100 |
23217-31080 |
US $18.70 |
||
|
23221
|
23221
23221-31130 Pump, Fuel[03.2017 -] 8GRFXS,2URGSE..GWZ100,URZ100 |
23221-31130 |
from US $300.87 |
||
|
23225A
|
23225A
23225-31010 Spacer, Fuel Pump[03.2017 -] 8GRFXS,2URGSE..GWZ100,URZ100 |
23225-31010 |
US $0.72 |
||
|
23280K
|
23280K
90301-04013 Ring, O(For Fuel Pump)[03.2017 -] 8GRFXS,2URGSE..GWZ100,URZ100 NO.1 |
90301-04013 |
from US $2.13 |
||
|
23280K
|
23280K
90301-15024 Ring, O(For Fuel Pump)[03.2017 -] 8GRFXS,2URGSE..GWZ100,URZ100 NO.2 |
90301-15024 |
from US $2.09 |
||
|
77012A
|
77012A
77012-11040 Tube Sub-Assy, Fuel Tank Breather, No.1[03.2017 -] GWZ100,URZ100 |
77012-11040 |
US $40.19 |
||
|
77019J
|
77019J
77019-50030 Tube Sub-Assy, Fuel Tank To Canister[03.2017 -] GWZ100,URZ100 |
77019-50030 |
US $11.94 |
||
|
77024A
|
77024A
77024-11020 Plate Sub-Assy, Fuel Suction[03.2017 -] GWZ100 |
77024-11020 |
from US $76.56 |
||
|
77100
|
77100
77001-11110 Tank Assy, Fuel[03.2017 -] GWZ100 |
77001-11110 |
US $464.46 |
||
|
77131C
|
77131C
77131-11010 Sub-Tank, Fuel, No.1[03.2017 -] GWZ100,URZ100 |
77131-11010 |
US $18.20 |
||
|
77161C
|
77161C
77607-11010 Protector, Fuel Tank, Lower[03.2017 -] GWZ100,URZ100 |
77607-11010 |
US $67.56 |
||
|
77168A
|
77168A
77168-52020 Plate, Fuel Tank Vent Tube Set[03.2017 -] GWZ100,URZ100 |
77168-52020 |
from US $14.63 |
||
|
77169A
|
77169A
77169-52010 Gasket, Fuel Suction Tube Set[03.2017 -] GWZ100,URZ100 |
77169-52010 |
from US $5.02 |
||
|
77174
|
77174
77174-48040 Support, Fuel Suction, No.1[03.2017 -] GWZ100,URZ100 |
77174-48040 |
US $5.39 |
||
|
77179A
|
77179A
77179-20040 Gasket, Fuel Tank Breather Tube[03.2017 -] GWZ100,URZ100 |
77179-20040 |
US $4.66 |
||
|
77197A
|
77197A
77197-52010 Clamp, Evaporation Vent Tube, No.2[03.2017 -] GWZ100,URZ100 |
77197-52010 |
US $2.15 |
||
|
77201E
|
77201E
77201-11110 Pipe Sub-Assy, Fuel Tank Filler[03.2017 -] GWZ100,URZ100 |
77201-11110 |
US $88.82 |
||
|
77209F
|
77209F
77209-11050 Tube Sub-Assy, Fuel Tank Main[03.2017 -] GWZ100 |
77209-11050 |
US $55.20 |
||
|
77213E
|
77213E
77213-11070 Hose, Fuel Tank To Filler Pipe[03.2017 -] GWZ100,URZ100 |
77213-11070 |
US $20.24 |
||
|
77216A
|
77216A
77216-11020 Support, Fuel Tank Filler Pipe, No.1[03.2017 -] GWZ100,URZ100 |
77216-11020 |
US $12.38 |
||
|
77217A
|
77217A
77217-11060 Support, Fuel Tank Filler Pipe, No.2[03.2017 -] GWZ100,URZ100 |
77217-11060 |
US $4.08 |
||
|
77218A
|
77218A
77218-11030 Support, Fuel Tank Filler Pipe, No.3[03.2017 -] GWZ100,URZ100 |
77218-11030 |
US $6.55 |
||
|
77221
|
77221
77227-11020 Tube, Fuel Tank Breather, No.1[03.2017 -] GWZ100,URZ100 |
77227-11020 |
US $24.32 |
||
|
77226A
|
77226A
77226-11040 Tube, Fuel Tank Breather, No.6[03.2017 -] GWZ100,URZ100 |
77226-11040 |
US $6.84 |
||
|
77229C
|
77229C
77229-11080 Clamp, Breather Tube[03.2017 -] GWZ100,URZ100 |
77229-11080 |
US $3.93 |
||
|
77229E
|
77229E
77229-11110 Clamp, Breather Tube[03.2017 -] GWZ100,URZ100 |
77229-11110 |
US $6.70 |
||
|
77241W
|
77241W
77241-33011 Clip, Tube Joint[03.2017 -] GWZ100,URZ100 |
77241-33011 |
from US $0.84 |
||
|
77269A
|
77269A
77269-11010 Hose, Fuel Tank Breather[03.2017 -] GWZ100,URZ100 |
77269-11010 |
US $14.85 |
||
|
77272B
|
77272B
77272-11040 Support, Breather Tube, No.1[03.2017 -] GWZ100,URZ100 |
77272-11040 |
US $6.26 |
||
|
77281A
|
77281A
77229-11120 Clamp, Fuel Filler Pipe[03.2017 -] GWZ100,URZ100 |
77229-11120 |
US $7.72 |
||
|
77286S
|
77286S
77286-12110 Cushion, Fuel Tank ProtectorFUEL TANK PROTECTOR [03.2017 -] GWZ100,URZ100 |
77286-12110 |
US $2.62 |
||
|
77288
|
77288
77229-50080 Clamp, Fuel Filler Pipe[03.2017 -] GWZ100,URZ100 |
77229-50080 |
US $5.53 |
||
|
77289
|
77289
77289-52090 Holder, Fuel Tank Pipe Setting[03.2017 -] GWZ100,URZ100 |
77289-52090 |
US $8.42 |
||
|
77289B
|
77289B
77289-11030 Clamp, Fuel Tube, No.3[03.2017 -] GWZ100,URZ100 |
77289-11030 |
US $3.64 |
||
|
77289C
|
77289C
77289-11040 Clamp, Fuel Tube, No.4[03.2017 -] GWZ100,URZ100 |
77289-11040 |
US $6.55 |
||
|
77295C
|
77295C
77295-35260 Grommet, Fuel Tube[03.2017 -] GWZ100,URZ100 |
77295-35260 |
US $4.37 |
||
|
77310A
|
77310A
77300-12020 Cap Assy, Fuel Tank[03.2017 -] GWZ100,URZ100 |
77300-12020 |
from US $26.98 |
||
|
77316
|
77316
77316-52040 Gasket, Fuel Tank Cap[03.2017 -] GWZ100,URZ100 |
77316-52040 |
from US $4.12 |
||
|
77606
|
77606
77606-11020 Protector Sub-Assy, Fuel Tank, No.1[03.2017 -] GWZ100,URZ100 |
77606-11020 |
US $132.50 |
||
|
77611
|
77611
77601-11050
Band, Fuel Tank
[03.2017 -] GWZ100,URZ100 |
77601-11050 |
— | ||
|
77613
|
77613
90119-10A05 Bolt, Fuel Tank Band Set[03.2017 -] GWZ100,URZ100 |
90119-10A05 |
US $2.15 |
||
|
77652A
|
77652A
77652-22090 Cushion, Fuel Tank, No.2[03.2017 -] GWZ100,URZ100 |
77652-22090 |
US $6.09 |
||
|
77681A
|
77681A
77681-21020 Seat, Fuel Tank Band, Rh[03.2017 -] GWZ100,URZ100 |
77681-21020 |
US $8.88 |
||
|
77754A
|
77754A
77754-11060 Hose, Charcoal Canister Outlet, No.2[03.2017 -] GWZ100,URZ100 |
77754-11060 |
US $10.19 |
||
|
77754C
|
77754C
77754-11050 Hose, Fuel Tank Breather[03.2017 -] GWZ100,URZ100 |
77754-11050 |
US $4.80 |
||
|
77777
|
77777
77778-50020 Bracket, Fuel Tube Clamp[03.2017 -] GWZ100,URZ100 |
77778-50020 |
US $3.06 |
||
|
77785
|
77785
77785-30050 Harness, Fuel Pump[03.2017 -] GWZ100,URZ100 |
77785-30050 |
US $11.65 |
||
|
91626B0614
|
91626B0614
91626-B0614 BOLT, W/WASHER |
91626-B0614 |
US $1.08 |
||
|
9011906A14
|
9011906A14
90119-06A14 BOLT, W/WASHER |
90119-06A14 |
US $1.08 |
||
|
9011908D17
|
9011908D17
90119-08D17 BOLT WWASHER |
90119-08D17 |
from US $0.89 |
||
|
2328336010
|
2328336010
23283-36010 Holder, Fuel Pressure Regulator |
23283-36010 |
US $1.97 |
||
|
9015950343
|
9015950343
90159-50343 SCREW, W-WASHER |
90159-50343 |
from US $0.67 |
||
|
9030111025
|
9030111025
90301-11025 Ring, O(For Fuel Pump) |
90301-11025 |
from US $2.09 |
||
|
9046022002
|
9046022002
90460-22002 CLAMP |
90460-22002 |
US $9.50 |
||
| replacement | |||||
|
9046022002
|
9046022002
90460-22001 CLAMP |
90460-22001 |
from US $4.12 |
||
|
9046037003
|
9046037003
90460-37003 Clamp, Fuel Hose |
90460-37003 |
US $3.40 |
||
|
9046040007
|
9046040007
90460-40007 Clamp (For Fuel Filler Pipe) |
90460-40007 |
US $3.40 |
||
|
9046617002
|
9046617002
90466-17002 Clip(For Steering Rack Boot) |
90466-17002 |
US $2.15 |
||
|
9046716019
|
9046716019
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.34 |
||
|
9095904001
|
9095904001
90959-04001 Clip, Fuel Hose |
90959-04001 |
from US $4.30 |
||
|
9613251300
|
9613251300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
|
9613741901
|
9613741901
96137-41901 Clip(For Ventilation Hose No.2)HOSE(FOR WATER BY-PASS HOSE) |
96137-41901 |
US $2.87 |
||
