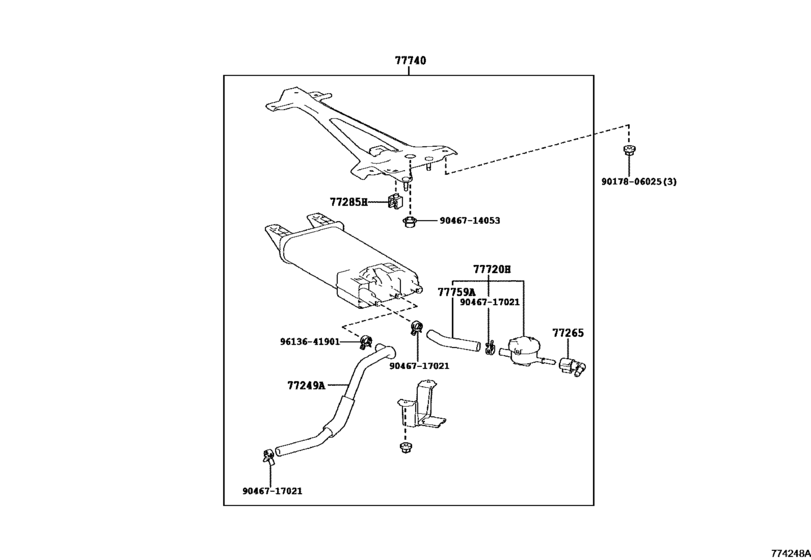

Fuel Tank & Tube ([03.2017 - ] CHARCOAL CANISTER (1703- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77249A
|
77249A
77249-11040 Hose, Fuel Emission[03.2017 -] GWZ100,URZ100 |
77249-11040 |
US $11.65 |
||
|
77265
|
77265
77265-30030 Connector, Fuel Main Tube[03.2017 -] GWZ100,URZ100 |
77265-30030 |
US $7.28 |
||
|
77285H
|
77285H
77286-47060
Clamp, Fuel Tube, No.1
[03.2017 -] GWZ100,URZ100 |
77286-47060 |
— | ||
|
77720H
|
77720H
77720-11020 Valve Assy, Fuel Outlet[03.2017 -] GWZ100,URZ100 |
77720-11020 |
US $56.20 |
||
|
77740
|
77740
77740-11060 Canister Assy, Charcoal[03.2017 -] GWZ100,URZ100 |
77740-11060 |
US $180.54 |
||
|
77759A
|
77759A
77759-11020 Hose, Charcoal Canister[03.2017 -] GWZ100,URZ100 |
77759-11020 |
US $7.72 |
||
|
9046714053
|
9046714053
90467-14053 Clip, No.1(For Floor Under Cover) |
90467-14053 |
from US $1.10 |
||
|
9046717021
|
9046717021
90467-17021 Clamp Or Clip, Hose(For Water By-Pass Hose) |
90467-17021 |
US $2.15 |
||
|
9613641901
|
9613641901
96136-41901 Clip Or Clamp(For Ventilation Hose) |
96136-41901 |
from US $2.05 |
