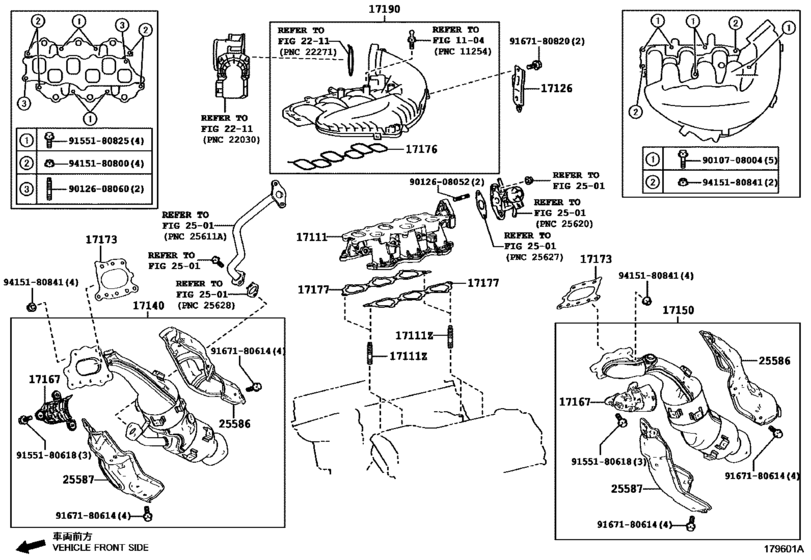

Manifold ([03.2017 - ] (1703- )8GRFXS) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17120-31080 Manifold, Intake[03.2017 -] 8GRFXS..GWZ100 |
17120-31080 |
US $310.13 |
||
|
17111Z
|
17111Z
90126-08052 Bolt, Stud(For Oil Pan)[03.2017 -] 8GRFXS..GWZ100 |
90126-08052 |
from US $0.76 |
||
|
17126
|
17126
17126-31070 Stay, Surge Tank, No.2[03.2017 -] 8GRFXS..GWZ100 |
17126-31070 |
US $10.19 |
||
|
17140
|
17140
17140-31A80 Manifold Assy, Exhaust, Rh[03.2017 -] 8GRFXS..GWZ100 *114=*477 |
17140-31A80 |
US $1,022.11 |
||
|
17150
|
17150
17150-31A80 Manifold Assy, Exhaust, Lh[03.2017 -] 8GRFXS..GWZ100 *114=*478 |
17150-31A80 |
US $1,011.92 |
||
|
17167
|
17167
17167-31120 Insulator, Exhaust Manifold Heat, No.1[03.2017 -] 8GRFXS..GWZ100 RH BANK |
17167-31120 |
US $18.64 |
||
|
17167
|
17167
17167-31160 Insulator, Exhaust Manifold Heat, No.1[03.2017 -] 8GRFXS..GWZ100 LH BANK |
17167-31160 |
US $26.06 |
||
|
17173
|
17173
17173-31070 Gasket, Exhaust Manifold To Head[03.2017 -] 8GRFXS..GWZ100 |
17173-31070 |
from US $10.11 |
||
|
17176
|
17176
17176-31150 Gasket, Air Surge Tank To Intake Manifold[03.2017 -] 8GRFXS..GWZ100 |
17176-31150 |
US $19.66 |
||
|
17177
|
17177
17177-31070 Gasket, Intake Manifold To Head, No.1[03.2017 -] 8GRFXS..GWZ100 |
17177-31070 |
from US $5.72 |
||
|
17190
|
17190
17190-31300 Tank Assy, Intake Air Surge[03.2017 - 04.2017] 8GRFXS..GWZ100 |
17190-31300 |
US $677.04 |
||
|
17190
|
17190
17190-31301 Tank Assy, Intake Air Surge[04.2017 -] 8GRFXS..GWZ100 |
17190-31301 |
US $614.43 |
||
|
25586
|
25586
25586-31060 Insulator, Manifold Converter, No.1[03.2017 -] 8GRFXS..GWZ100 RH BANK |
25586-31060 |
US $57.08 |
||
|
25586
|
25586
25586-31080 Insulator, Manifold Converter, No.1[03.2017 -] 8GRFXS..GWZ100 LH BANK |
25586-31080 |
US $50.67 |
||
|
25587
|
25587
25587-31020 Insulator, Manifold Converter, No.2[03.2017 -] 8GRFXS..GWZ100 RH BANK |
25587-31020 |
US $65.81 |
||
|
25587
|
25587
25587-31030 Insulator, Manifold Converter, No.2[03.2017 -] 8GRFXS..GWZ100 LH BANK |
25587-31030 |
US $57.08 |
||
|
9010708004
|
9010708004
90107-08004 New Genuine Part |
90107-08004 |
US $1.79 |
||
|
9012608052
|
9012608052
90126-08052 Bolt, Stud(For Oil Pan) |
90126-08052 |
from US $0.76 |
||
|
9012608060
|
9012608060
90126-08060 Bolt, Stud(For Intake Manifold To Cylinder Head)STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) |
90126-08060 |
from US $2.34 |
||
|
9155180618
|
9155180618
91551-80618 Bolt, W/washer(For Repair Actuator Set) |
91551-80618 |
US $1.08 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.78 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.78 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
||
|
9415180841
|
9415180841
94151-80841 FLANGE NUT |
94151-80841 |
from US $0.76 |
