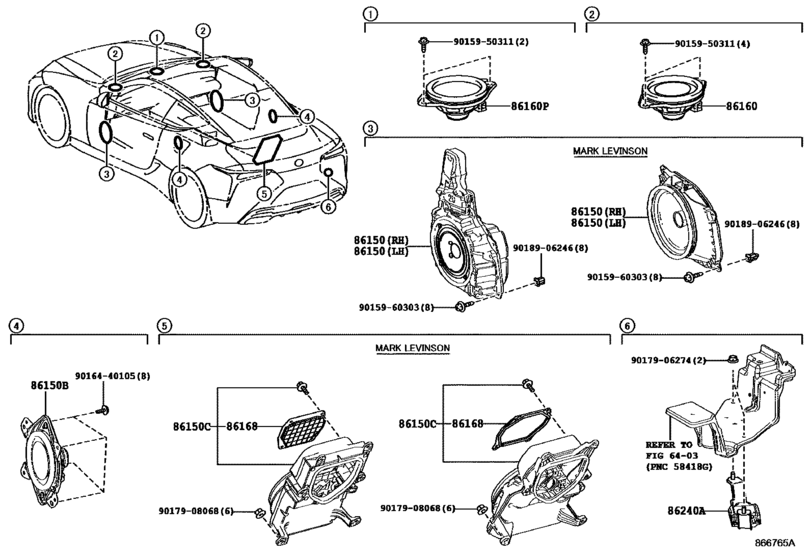

Speaker ([03.2017 - ] (1703- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86150
|
86150
86150-0W450 Speaker Assy, W/box, No.1[03.2017 -] GWZ100,URZ100 AUDIO-EMV *MAR & AM/FM & DVD & 13SPEAKER,RH |
86150-0W450 |
US $403.31 |
||
|
86150
|
86150
86150-0W460 Speaker Assy, W/box, No.1[03.2017 -] GWZ100,URZ100 AUDIO-EMV *MAR & AM/FM & DVD & 13SPEAKER,LH |
86150-0W460 |
US $420.77 |
||
|
86150
|
86150
86150-11020 Speaker Assy, W/box, No.1[03.2017 -] GWZ100,URZ100 RH |
86150-11020 |
US $273.73 |
||
|
86150
|
86150
86150-11030 Speaker Assy, W/box, No.1[03.2017 -] GWZ100,URZ100 LH |
86150-11030 |
US $273.73 |
||
|
86150B
|
86150B
86150-0W470 Speaker Assy, W/box, No.2[03.2017 -] GWZ100,URZ100 AUDIO-EMV *MAR & AM/FM & DVD & 13SPEAKER |
86150-0W470 |
US $230.05 |
||
|
86150B
|
86150B
86150-11060 Speaker Assy, W/box, No.2[03.2017 -] GWZ100,URZ100 |
86150-11060 |
US $101.92 |
||
|
86150C
|
86150C
86150-0W480 Speaker Assy, W/box, No.3[03.2017 -] GWZ100,URZ100 AUDIO-EMV *MAR & AM/FM & DVD & 13SPEAKER |
86150-0W480 |
US $617.34 |
||
|
86150C
|
86150C
86150-11080 Speaker Assy, W/box, No.3[03.2017 -] GWZ100,URZ100 |
86150-11080 |
US $380.02 |
||
|
86160
|
86160
86160-0WX50 Speaker Assy, Front No.1[03.2017 -] GWZ100,URZ100 AUDIO-EMV *MAR & AM/FM & DVD & 13SPEAKER |
86160-0WX50 |
from US $43.92 |
||
|
86160
|
86160
86160-11070 Speaker Assy, Front No.1[03.2017 -] GWZ100,URZ100 |
86160-11070 |
US $168.90 |
||
|
86160P
|
86160P
86160-0WX50 Speaker Assy, Front No.1[03.2017 -] GWZ100,URZ100 AUDIO-EMV *MAR & AM/FM & DVD & 13SPEAKER |
86160-0WX50 |
from US $43.92 |
||
|
86160P
|
86160P
86160-11060 Speaker Assy, Front No.2[03.2017 -] GWZ100,URZ100 |
86160-11060 |
US $84.45 |
||
|
86168
|
86168
86168-0W020 Cover, Speaker Mounting[03.2017 -] GWZ100,URZ100 AUDIO-EMV *MAR & AM/FM & DVD & 13SPEAKER |
86168-0W020 |
US $26.94 |
||
|
86168
|
86168
86168-11010 Cover, Speaker Mounting[03.2017 -] GWZ100,URZ100 |
86168-11010 |
US $32.32 |
||
|
86240A
|
86240A
86240-11010 Equalizer Assy,stereo Component[03.2017 -] GWZ100,URZ100 |
86240-11010 |
US $384.38 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.70 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9016440105
|
9016440105
90164-40105 SCREW BINDING |
90164-40105 |
from US $0.78 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
from US $0.78 |
||
|
9018906246
|
9018906246
90189-06246 New Genuine Part |
90189-06246 |
US $1.25 |
