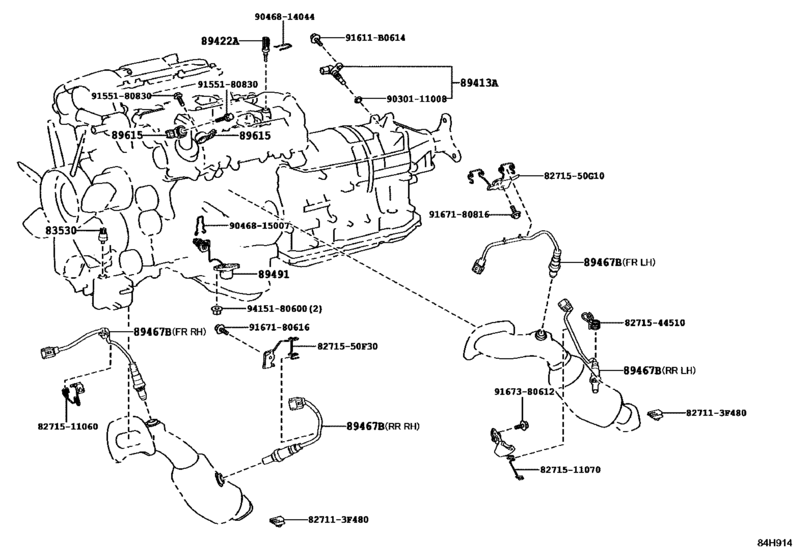

Switch & Relay & Computer ([03.2017 - ] ENGINE & TRANSMISSION (1703- )GWZ100) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[03.2017 -] GWZ100,URZ100 DENSO |
83530-28020 |
from US $23.56 |
||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.2017 -] GWZ100,URZ100 DENSO |
83530-60020 |
from US $23.22 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.2017 -] GWZ100,URZ100 YAZAKI |
83530-60020 |
from US $23.22 |
||
|
89413A
|
89413A
89413-11010 Sensor, Transmission Revolution[03.2017 -] GWZ100 |
89413-11010 |
US $54.02 |
||
|
89422A
|
89422A
89422-47010 Sensor, Water Temperature (For E.f.i.)[03.2017 -] GWZ100 |
89422-47010 |
from US $40.49 |
||
|
89467B
|
89467B
89467-11010 Sensor, Air Fuel Ratio[03.2017 -] GWZ100 FR LH |
89467-11010 |
US $162.36 |
||
|
89467B
|
89467B
89467-11020 Sensor, Air Fuel Ratio[03.2017 -] GWZ100 FR RH |
89467-11020 |
US $162.36 |
||
|
89467B
|
89467B
89467-11030 Sensor, Air Fuel Ratio[03.2017 -] GWZ100 RR LH |
89467-11030 |
US $162.36 |
||
|
89467B
|
89467B
89467-11040 Sensor, Air Fuel Ratio[03.2017 -] GWZ100 RR RH |
89467-11040 |
US $162.36 |
||
|
89491
|
89491
89491-30100 Sensor, Engine Oil Level[03.2017 -] GWZ100 |
89491-30100 |
US $44.84 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[03.2017 -] GWZ100 |
89615-20090 |
from US $39.82 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.78 |
||
|
827113F480
|
827113F480
82711-3F480 Wire, Fuse To Fuse(for Combustion Heater) |
82711-3F480 |
US $1.25 |
||
|
8271550F30
|
8271550F30
82715-50F30 Bracket,wiring Harness Clamp |
82715-50F30 |
US $2.91 |
||
|
8271550G10
|
8271550G10
82715-50G10 Bracket,wiring Harness Clamp |
82715-50G10 |
US $4.80 |
||
|
8271511060
|
8271511060
82715-11060 Bracket,wiring Harness Clamp |
82715-11060 |
US $2.62 |
||
|
8271511070
|
8271511070
82715-11070 Bracket,wiring Harness Clamp |
82715-11070 |
US $10.19 |
||
|
8271544510
|
8271544510
82715-44510 Bracket,wiring Harness Clamp |
82715-44510 |
US $2.62 |
||
|
9030111008
|
9030111008
90301-11008 Ring,o (For Speedometer Driven Hole Cover) |
90301-11008 |
from US $0.87 |
||
|
9046814044
|
9046814044
90468-14044 9046814044 |
90468-14044 |
US $1.08 |
||
|
9046815007
|
9046815007
90468-15007 New Genuine Part |
90468-15007 |
US $1.43 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.89 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.63 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.76 |
||
|
9167380612
|
9167380612
91673-80612 BOLT FLANGE |
91673-80612 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
