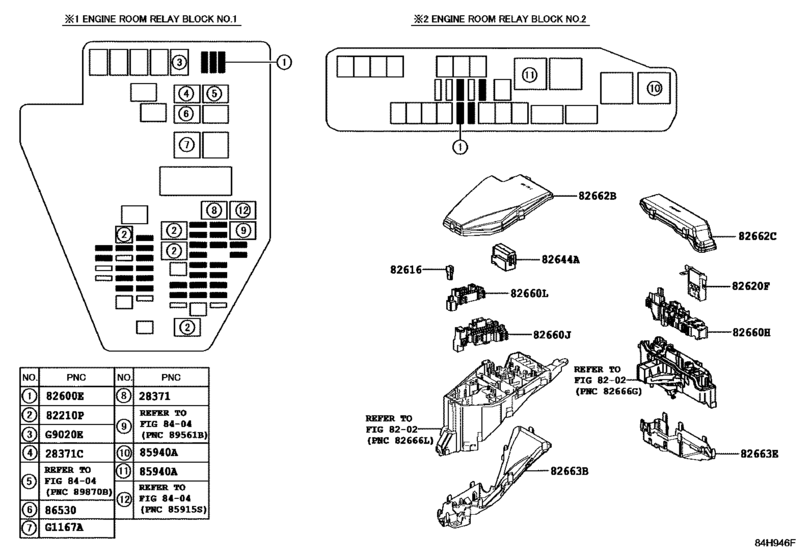

Switch & Relay & Computer ([03.2017 - ] ENGINE ROOM RELAY BLOCK (1703- )GWZ100..LHD) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-02027 Relay[03.2017 -] 8GRFXS,2URGSE..GWZ100,URZ100 |
90987-02027 |
from US $47.82 |
||
|
28371C
|
28371C
90987-02027 Relay[03.2017 -] 8GRFXS,2URGSE..GWZ100,URZ100 |
90987-02027 |
from US $47.82 |
||
|
82210P
|
82210P
90982-08295 Fusible Link[03.2017 -] GWZ100 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.99 |
||
|
82210P
|
82210P
90982-08303 Fusible Link[03.2017 -] GWZ100 50A-50A-50A,FEMALE |
90982-08303 |
from US $6.99 |
||
|
82210P
|
82210P
90982-08304 Fusible Link[03.2017 -] GWZ100,URZ100 60A,TERMINAL:FEMALE |
90982-08304 |
US $6.99 |
||
|
82210P
|
82210P
90982-08305 Fusible Link[03.2017 -] GWZ100,URZ100 80A,TERMINAL:FEMALE |
90982-08305 |
from US $6.99 |
||
|
82210P
|
82210P
90982-08308 Fusible Link[03.2017 -] GWZ100,URZ100 40A-30A-30A,FEMALE |
90982-08308 |
from US $7.35 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[03.2017 -] GWZ100,URZ100 7.5A,MINI FUSE |
90982-09020 |
from US $0.84 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[03.2017 -] GWZ100,URZ100 10A,MINI FUSE |
90982-09021 |
from US $0.78 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[03.2017 -] GWZ100,URZ100 15A,MINI FUSE |
90982-09022 |
from US $0.80 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[03.2017 -] GWZ100,URZ100 20A,MINI FUSE |
90982-09023 |
from US $0.84 |
||
|
82600E
|
82600E
90982-09024 Instrument Panel Fuse[03.2017 -] GWZ100 25A,MINI FUSE |
90982-09024 |
from US $0.82 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[03.2017 -] GWZ100,URZ100 30A,MINI FUSE |
90982-09025 |
from US $0.76 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[03.2017 -] GWZ100,URZ100 |
82616-58010 |
from US $2.22 |
||
|
82620F
|
82620F
82620-50190 Block Assy, Fusible Link[03.2017 -] GWZ100 |
82620-50190 |
US $20.82 |
||
|
82644A
|
82644A
82644-11030 Computer, Semiconductor Power Integration, No.1[03.2017 -] GWZ100,URZ100 |
82644-11030 |
US $56.64 |
||
|
82660H
|
82660H
82660-50150 Block Assy, Relay[03.2017 -] GWZ100 |
82660-50150 |
US $47.32 |
||
|
82660J
|
82660J
82660-50170 Block Assy, Relay[03.2017 -] GWZ100 |
82660-50170 |
US $36.98 |
||
|
82660L
|
82660L
82660-50190 Block Assy, Relay[03.2017 -] GWZ100 |
82660-50190 |
US $22.57 |
||
|
82662B
|
82662B
82662-50480 Cover, Relay Block, Upper, No.2[03.2017 -] GWZ100 |
82662-50480 |
US $33.56 |
||
|
82662C
|
82662C
82662-50460
Cover, Relay Block, Upper, No.3
[03.2017 -] GWZ100..LHD |
82662-50460 |
— | ||
|
82663B
|
82663B
82663-50250 Cover, Relay Block, Lower, No.3[03.2017 -] GWZ100 |
82663-50250 |
US $35.82 |
||
|
82663E
|
82663E
82663-50230
Cover, Relay Block, Lower, No.7
[03.2017 -] GWZ100..LHD |
82663-50230 |
— | ||
|
85940A
|
85940A
90987-02025 Relay[03.2017 -] GWZ100,URZ100 |
90987-02025 |
from US $48.62 |
||
|
86530
|
86530
90987-02027 Relay[03.2017 -] GWZ100,URZ100 |
90987-02027 |
from US $47.82 |
||
|
G1167A
|
G1167A
90987-02025 Relay[03.2017 -] GWZ100 |
90987-02025 |
from US $48.62 |
||
|
G9020E
|
G9020E
90987-02027 Relay[03.2017 -] GWZ100 |
90987-02027 |
from US $47.82 |
