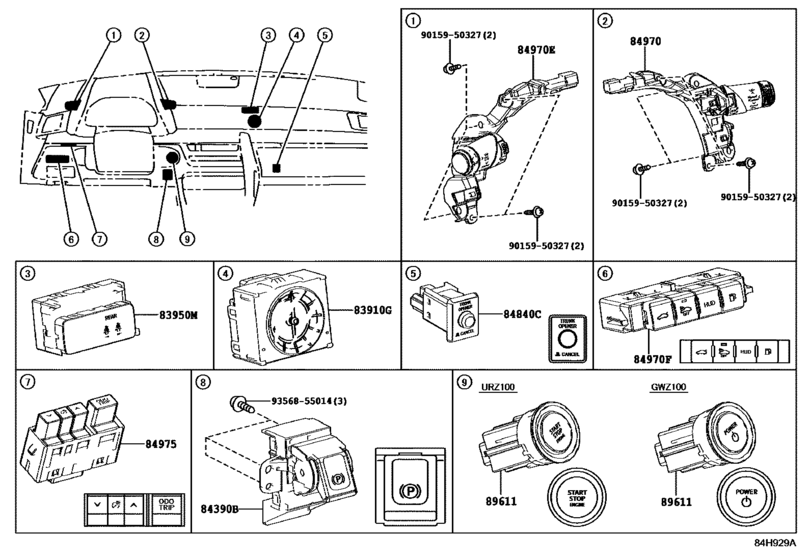

Switch & Relay & Computer ([03.2017 - ] INSTRUMENT PANEL 1/2 (1703- )LHD) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83910G
|
83910G
83910-11010 Clock Assy[03.2017 -] GWZ100,URZ100 |
83910-11010 |
US $317.41 |
||
|
83950M
|
83950M
83950-11040
Lamp Assy, Telltale
[03.2017 -] GWZ100,URZ100..LHD |
83950-11040 |
— | ||
|
84390B
|
84390B
84390-11010 Switch Assy, Electric Parking Brake[03.2017 -] GWZ100,URZ100 |
84390-11010 |
US $35.96 |
||
|
84840C
|
84840C
84840-24020 Switch Assy, Luggage Door Opening, Cancel[03.2017 -] GWZ100,URZ100 |
84840-24020 |
US $30.23 |
||
|
84970
|
84970
84970-11060
Switch Assy, Combination
[03.2017 -] GWZ100,URZ100..LHD |
84970-11060 |
— | ||
|
84970E
|
84970E
84970-11010
Switch Assy, Combination No.2
[03.2017 -] GWZ100,URZ100..GEN |
84970-11010 |
— | ||
|
84970F
|
84970F
84970-11080
Switch Assy, Combination, No.3
[03.2017 -] GWZ100..GCC;URZ100..LHD; GWZ100..GEN PHILIPPINE SPEC; GWZ100..GEN MIDDLE & SOUTH AMERICA SPEC; GWZ100..GEN COSTA RICA & PANAMA SPEC |
84970-11080 |
— | ||
|
84970F
|
84970F
84970-11090
Switch Assy, Combination, No.3
[03.2017 -] GWZ100..GEN HEAD UP DISPLAY-WITH |
84970-11090 |
— | ||
|
84970F
|
84970F
84970-11100
Switch Assy, Combination, No.3
[03.2017 -] GWZ100..GEN |
84970-11100 |
— | ||
|
84975
|
84975
84975-11010
Switch, Trip
[03.2017 -] GWZ100,URZ100..LHD |
84975-11010 |
— | ||
|
89611
|
89611
89611-11020 Switch, Push Start[03.2017 -] GWZ100 |
89611-11020 |
US $161.60 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
