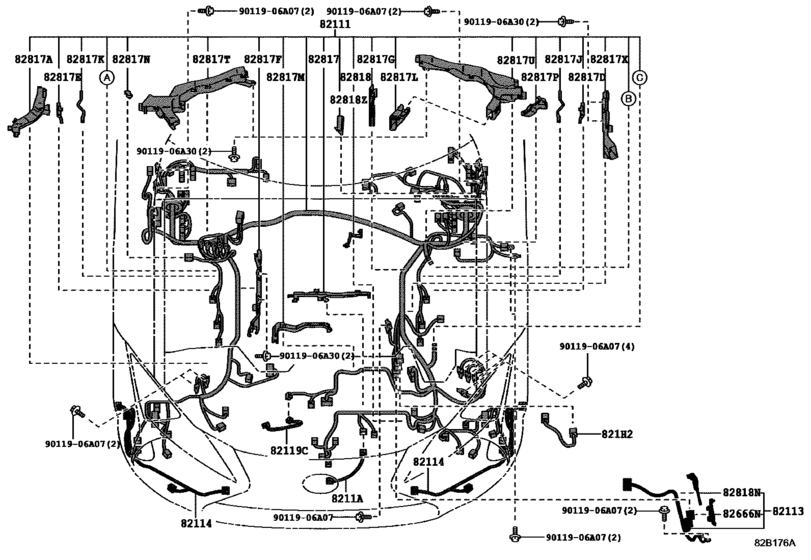

Wiring & Clamp ([03.2017 - ] ENGINE ROOM (1703- )GWZ100..LHD) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
821H2
|
821H2
821H2-50040 Wire, Hv Air Conditioner[03.2017 -] GWZ100 |
821H2-50040 |
US $50.52 |
||
|
8211A
|
8211A
8211A-11010 Wire, Engine Room, No.6[03.2017 -] GWZ100,URZ100; GWZ100..ARL HONGKONG SPEC; GWZ100,URZ100..ARL BRUNEI SPEC; URZ100..ARL INDONESIA SPEC; GWZ100,URZ100..ARL SINGAPORE SPEC; GWZ100,URZ100..ARL MALAYSIA SPEC; GWZ100,URZ100..GEN PHILIPPINE SPEC; GWZ100,URZ100..GEN MIDDLE & SOUTH AM |
8211A-11010 |
US $11.42 |
||
|
82111
|
82111
82111-11430
Wire, Engine Room Main
[03.2017 -] GWZ100..GEN |
82111-11430 |
— | ||
|
82111
|
82111
82111-11440
Wire, Engine Room Main
[03.2017 -] GWZ100..GEN PHILIPPINE SPEC; GWZ100..GEN MIDDLE & SOUTH AMERICA SPEC&LANE CHANGE ASSIST-WITHOUT; GWZ100..GEN COSTA RICA & PANAMA SPEC&LANE CHANGE ASSIST-WITHOUT |
82111-11440 |
— | ||
|
82113
|
82113
82113-50110
Wire, Engine Room, No.3
[03.2017 -] GWZ100..LHD |
82113-50110 |
— | ||
|
82114
|
82114
82114-11020 Wire, Engine Room, No.4[03.2017 -] GWZ100,URZ100 |
82114-11020 |
from US $24.02 |
||
|
82119C
|
82119C
82119-11040 Wire, Engine Room, No.5[03.2017 -] GWZ100 |
82119-11040 |
US $12.08 |
||
|
82666N
|
82666N
82666-50A20 Holder, Connector No.10[03.2017 -] GWZ100;URZ100..ARL |
82666-50A20 |
US $22.86 |
||
|
82817
|
82817
82817-11670 Protector, Wiring Harness, No.1[03.2017 -] GWZ100,URZ100 |
82817-11670 |
US $8.15 |
||
|
82817A
|
82817A
82817-11740 Protector, Wiring Harness, No.2[03.2017 -] GWZ100,URZ100 |
82817-11740 |
US $13.54 |
||
|
82817D
|
82817D
82817-50P80
Protector, Wiring Harness, No.5
[03.2017 -] GWZ100,URZ100 |
82817-50P80 |
— | ||
|
82817E
|
82817E
82817-50P90
Protector, Wiring Harness, No.6
[03.2017 -] GWZ100,URZ100 |
82817-50P90 |
— | ||
|
82817F
|
82817F
82817-50Q10 Protector, Wiring Harness, No.7[03.2017 -] GWZ100,URZ100 |
82817-50Q10 |
US $28.54 |
||
|
82817G
|
82817G
82817-50Q50 Protector, Wiring Harness, No.8[03.2017 -] GWZ100 |
82817-50Q50 |
US $12.96 |
||
|
82817J
|
82817J
82817-50Z70
Protector, Wiring Harness, No.9
[03.2017 -] GWZ100,URZ100 |
82817-50Z70 |
— | ||
|
82817K
|
82817K
82817-50Z80
Protector, Wiring Harness, No.10
[03.2017 -] GWZ100,URZ100 |
82817-50Z80 |
— | ||
|
82817L
|
82817L
82817-50Q30 Protector, Wiring Harness, No.11[03.2017 -] GWZ100 |
82817-50Q30 |
US $12.96 |
||
|
82817M
|
82817M
82817-50Z60 Protector, Wiring Harness, No.12[03.2017 -] GWZ100 |
82817-50Z60 |
US $15.58 |
||
|
82817N
|
82817N
82817-5AA50
Protector, Wiring Harness, No.13
[03.2017 -] GWZ100..LHD |
82817-5AA50 |
— | ||
|
82817P
|
82817P
82817-5AD60
Protector, Wiring Harness, No.14
[03.2017 -] GWZ100,URZ100..LHD |
82817-5AD60 |
— | ||
|
82817T
|
82817T
82817-50N00
Protector, Wiring Harness, No.15
[03.2017 -] GWZ100..LHD |
82817-50N00 |
— | ||
|
82817U
|
82817U
82817-50M90
Protector, Wiring Harness, No.16
[03.2017 -] GWZ100..LHD |
82817-50M90 |
— | ||
|
82817X
|
82817X
82817-50Q40
Protector, Wiring Harness, N0.17
[03.2017 -] GWZ100..LHD |
82817-50Q40 |
— | ||
|
82818
|
82818
82817-11700 Protector, Wiring Harness, No.2[03.2017 -] GWZ100;URZ100..ARL |
82817-11700 |
US $4.37 |
||
|
82818N
|
82818N
82817-5AE30 Protector, Wiring Harness, No.14[03.2017 -] GWZ100,URZ100 |
82817-5AE30 |
US $5.24 |
||
|
82818Z
|
82818Z
82817-12860 Protector, Wiring Harness, No.1[03.2017 -] GWZ100,URZ100 |
82817-12860 |
US $1.02 |
||
|
9011906A07
|
9011906A07
90119-06A07 New Genuine Part |
90119-06A07 |
US $1.08 |
||
|
9011906A30
|
9011906A30
90119-06A30 New Genuine Part |
90119-06A30 |
US $1.02 |
