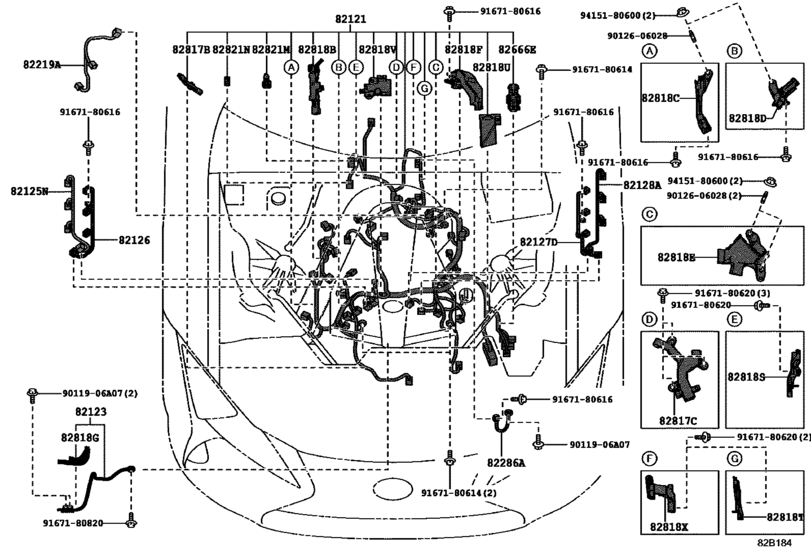

Wiring & Clamp ([03.2017 - ] ENGINE (1703- )GWZ100) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-50840 Wire, Engine[03.2017 -] GWZ100 |
82121-50840 |
US $854.67 |
||
|
82123
|
82123
82123-50150 Wire, Engine, No.3[03.2017 -] GWZ100 |
82123-50150 |
US $52.42 |
||
|
82125N
|
82125N
82125-30600 Wire, Engine, No.5[03.2017 -] GWZ100 |
82125-30600 |
US $19.22 |
||
|
82126
|
82126
82126-30080 Wire, Engine[03.2017 -] GWZ100 |
82126-30080 |
US $24.02 |
||
|
82127D
|
82127D
82127-30080 Wire, Engine, No.7[03.2017 -] GWZ100 |
82127-30080 |
US $24.02 |
||
|
82128A
|
82128A
82128-30020 Wire, Engine, No.8[03.2017 -] GWZ100 |
82128-30020 |
US $19.22 |
||
|
82219A
|
82219A
82219-30050 Wire, Sensor[03.2017 -] GWZ100 |
82219-30050 |
from US $19.22 |
||
|
82286A
|
82286A
82286-50070 Wire, Earth, No.2[03.2017 -] GWZ100 |
82286-50070 |
US $14.41 |
||
|
82666E
|
82666E
82666-50A10 Holder, Connector No.6[03.2017 -] GWZ100 |
82666-50A10 |
US $10.34 |
||
|
82817B
|
82817B
82817-50R90 Protector, Wiring Harness, No.3[03.2017 -] GWZ100 |
82817-50R90 |
US $4.37 |
||
|
82817C
|
82817C
82817-50S00 Protector, Wiring Harness, No.4[03.2017 -] GWZ100 |
82817-50S00 |
US $16.31 |
||
|
82818B
|
82818B
82817-50R00 Protector, Wiring Harness, No.3[03.2017 -] GWZ100 |
82817-50R00 |
US $6.99 |
||
|
82818C
|
82818C
82817-50R10 Protector, Wiring Harness, No.4[03.2017 -] GWZ100 |
82817-50R10 |
US $12.81 |
||
|
82818D
|
82818D
82817-50R20 Protector, Wiring Harness, No.5[03.2017 -] GWZ100 |
82817-50R20 |
US $8.59 |
||
|
82818E
|
82818E
82817-50R30 Protector, Wiring Harness, No.6[03.2017 -] GWZ100 |
82817-50R30 |
US $21.55 |
||
|
82818F
|
82818F
82817-50R80 Protector, Wiring Harness, No.7[03.2017 -] GWZ100 |
82817-50R80 |
US $18.78 |
||
|
82818G
|
82818G
82817-50P30 Protector, Wiring Harness, No.8[03.2017 -] GWZ100,URZ100 |
82817-50P30 |
US $6.54 |
||
|
82818S
|
82818S
82817-50S10 Protector, Wiring Harness, No.15[03.2017 -] GWZ100 |
82817-50S10 |
US $9.46 |
||
|
82818T
|
82818T
82817-50S30 Protector, Wiring Harness, No.16[03.2017 -] GWZ100 |
82817-50S30 |
US $8.01 |
||
|
82818U
|
82818U
82817-50S50 Protector, Wiring Harness, No.17[03.2017 -] GWZ100 |
82817-50S50 |
US $10.77 |
||
|
82818V
|
82818V
82817-5AA20 Protector, Wiring Harness, No.18[03.2017 -] GWZ100 |
82817-5AA20 |
US $9.32 |
||
|
82821M
|
82821M
82821-50680 Cover, Connector[03.2017 -] GWZ100,URZ100 |
82821-50680 |
US $5.53 |
||
|
82821N
|
82821N
82821-50750 Cover, Connector[03.2017 -] GWZ100,URZ100 |
82821-50750 |
US $2.62 |
||
|
9011906A07
|
9011906A07
90119-06A07 New Genuine Part |
90119-06A07 |
US $1.08 |
||
|
9012606028
|
9012606028
90126-06028 Bolt, Stud(For Oil Pan) |
90126-06028 |
from US $0.63 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.63 |
||
|
9167180620
|
9167180620
91671-80620 New Genuine Part |
91671-80620 |
US $1.08 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.78 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
