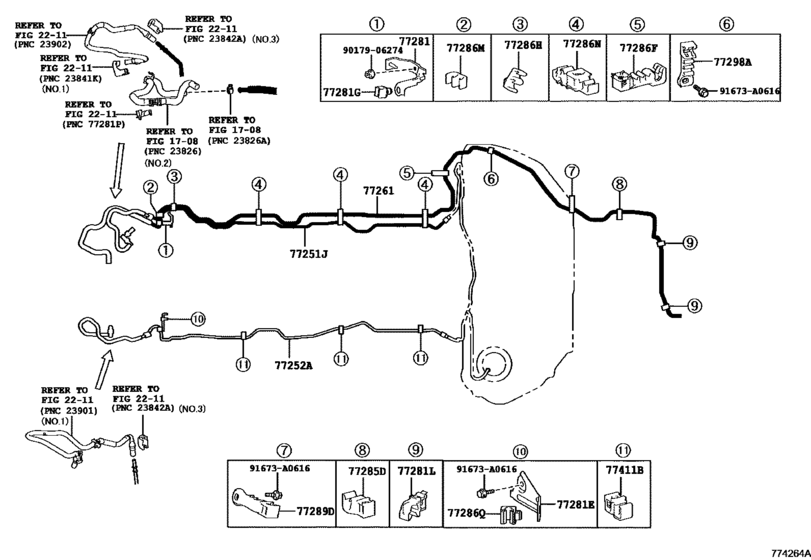

Fuel Tank & Tube ([01.2017 - ] FUEL TUBE (1701- )GWZ100) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- Model
- LC500 Hybrid
- From
- 01.2017
- Vehicle Model
- LC500 Hybrid
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77251J
|
77251J
77251-11110
Tube, Fuel Main, No.1
[01.2017 -] GWZ100 |
77251-11110 |
— | ||
|
77252A
|
77252A
77252-11030
Tube, Fuel Main, No.2
[01.2017 -] GWZ100 |
77252-11030 |
— | ||
|
77261
|
77261
77261-11040
Tube Sub-Assy, Fuel Emission
[01.2017 -] GWZ100 |
77261-11040 |
— | ||
|
77281
|
77281
77281-11050
Bracket, Fuel Main Tube, No.1
[01.2017 -] GWZ100 |
77281-11050 |
— | ||
|
77281E
|
77281E
77281-11070 Bracket, Fuel Main Tube, No.1[01.2017 -] GWZ100 |
77281-11070 |
US $4.66 |
||
|
77281G
|
77281G
77286-11060 Clamp, Fuel Hose[01.2017 -] GWZ100 |
77286-11060 |
US $3.35 |
||
|
77281L
|
77281L
89639-28130 Clamp, Fuel Hose[01.2017 -] GWZ100,URZ100 |
89639-28130 |
US $5.56 |
||
|
77285D
|
77285D
77285-11010 Clamp, Fuel Tube, No.1[01.2017 -] GWZ100,URZ100 |
77285-11010 |
US $5.24 |
||
|
77286F
|
77286F
77286-11010 Clamp, Fuel Tube, No.2[01.2017 -] GWZ100,URZ100 |
77286-11010 |
US $7.28 |
||
|
77286H
|
77286H
77286-11020 Clamp, Fuel Tube, No.3[01.2017 -] GWZ100,URZ100 |
77286-11020 |
US $4.37 |
||
|
77286M
|
77286M
77286-11070 Clamp, Fuel Tube, No.6[01.2017 -] GWZ100 |
77286-11070 |
US $3.93 |
||
|
77286N
|
77286N
77289-11010 Clamp, Fuel Tube, No.7[01.2017 -] GWZ100 |
77289-11010 |
US $12.01 |
||
|
77286Q
|
77286Q
77298-11030 Clamp, Fuel Tube, No.9[01.2017 -] GWZ100 |
77298-11030 |
US $2.62 |
||
|
77289D
|
77289D
77298-11020 Clamp, Fuel Tube, No.5[01.2017 -] GWZ100,URZ100 |
77298-11020 |
US $7.86 |
||
|
77298A
|
77298A
77298-11010 Clamp, Fuel Tube, No.4[01.2017 -] GWZ100,URZ100 |
77298-11010 |
US $7.13 |
||
|
77411B
|
77411B
77299-48020 Clamp, Breather Tube[01.2017 -] GWZ100 |
77299-48020 |
US $2.80 |
||
|
91673A0616
|
91673A0616
91673-A0616 BOLT, FLANGE |
91673-A0616 |
from US $0.63 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
