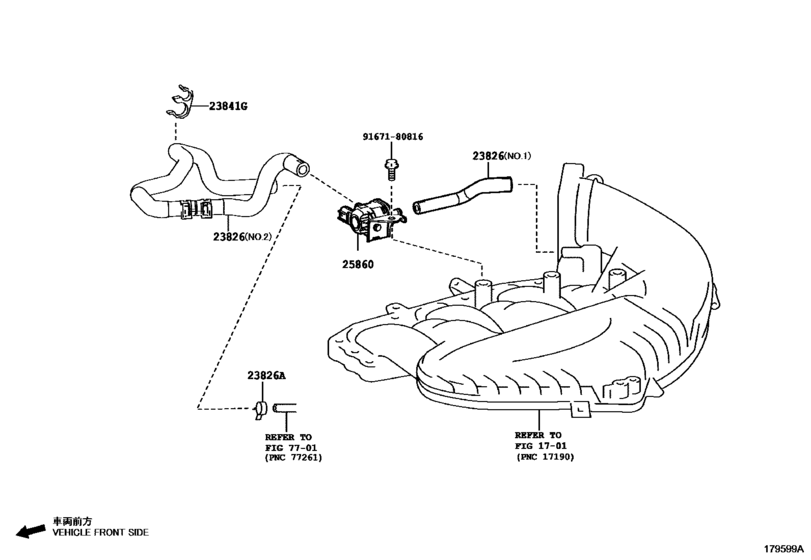

Vacuum Piping ([01.2017 - ] (1701- )8GRFXS) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- Model
- LC500 Hybrid
- From
- 01.2017
- Vehicle Model
- LC500 Hybrid
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23826
|
23826
23826-31330 Hose, Fuel Vapor Feed, No.1[01.2017 -] 8GRFXS..GWZ100 NO.1 |
23826-31330 |
US $7.86 |
||
|
23826
|
23826
23826-31360
Hose, Fuel Vapor Feed, No.1
[01.2017 -] 8GRFXS..GWZ100 NO.2 |
23826-31360 |
— | ||
|
23826A
|
23826A
96136-41901 Clip Or Clamp(For Ventilation Hose)[01.2017 -] 8GRFXS..GWZ100 |
96136-41901 |
from US $2.05 |
||
|
23841G
|
23841G
23841-31180 Clamp, Fuel Hose[01.2017 -] 8GRFXS..GWZ100 |
23841-31180 |
US $2.62 |
||
|
25860
|
25860
25860-31090 Valve Assy, Vacuum Switching, No.1[01.2017 -] 8GRFXS..GWZ100 |
25860-31090 |
US $46.88 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.76 |
