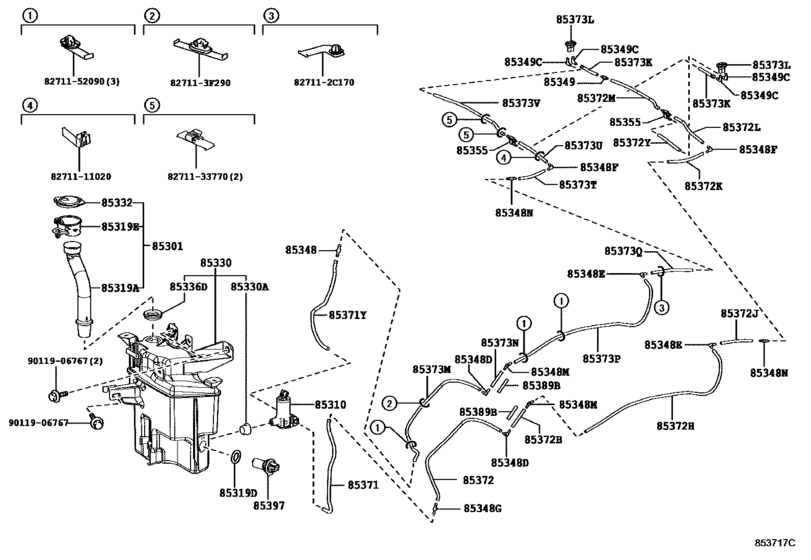

Windshield Washer ([01.2017 - ] W/O(HEADLAMP CLEANER) (1701- )GWZ100) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- Model
- LC500 Hybrid
- From
- 01.2017
- Vehicle Model
- LC500 Hybrid
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85301
|
85301
85301-11010
Inlet Sub-Assy, Washer
[01.2017 -] GWZ100 |
85301-11010 |
— | ||
|
85310
|
85310
85330-11030
Motor And Pump Assy, Windshield Washer
[01.2017 -] GWZ100,URZ100 |
85330-11030 |
— | ||
|
85319A
|
85319A
85319-11010
Hose, Inlet
[01.2017 -] GWZ100 |
85319-11010 |
— | ||
|
85319D
|
85319D
85319-33230 Packing, Front Washer[01.2017 -] GWZ100,URZ100 |
85319-33230 |
from US $2.53 |
||
|
85319E
|
85319E
85318-11010
Inlet Washer
[01.2017 -] GWZ100 |
85318-11010 |
— | ||
|
85330
|
85330
85315-11010
Jar Assy, Windshield Washer
[01.2017 -] GWZ100,URZ100 |
85315-11010 |
— | ||
|
85330
|
85330
85355-11011 Jar Assy, Windshield Washer[01.2017 -] GWZ100,URZ100 KOREA SPEC |
85355-11011 |
from US $56.26 |
||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[01.2017 -] GWZ100,URZ100 |
90099-32089 |
from US $0.98 |
||
| replacement | |||||
|
85330A
|
85330A
90099320891
Grommet
[01.2017 -] GWZ100,URZ100 |
90099320891 |
— | ||
|
85332
|
85332
85316-11010
Cap, Windshield Washer Jar
[01.2017 -] GWZ100,URZ100 |
85316-11010 |
— | ||
|
85336D
|
85336D
85336-30160 Bush, Windshield Washer Jar[01.2017 -] GWZ100,URZ100 |
85336-30160 |
from US $3.32 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[01.2017 -] GWZ100,URZ100 |
85349-89122 |
from US $1.25 |
||
|
85348D
|
85348D
85355-20200 Joint, Windshield Washer Hose, No.1[01.2017 -] GWZ100,URZ100 |
85355-20200 |
from US $0.95 |
||
|
85348E
|
85348E
85355-20200 Joint, Windshield Washer Hose, No.1[01.2017 -] GWZ100,URZ100 |
85355-20200 |
from US $0.95 |
||
|
85348F
|
85348F
85355-20200 Joint, Windshield Washer Hose, No.1[01.2017 -] GWZ100,URZ100 |
85355-20200 |
from US $0.95 |
||
|
85348G
|
85348G
85375-10260 Joint, Windshield Washer Hose, No.1[01.2017 -] GWZ100,URZ100 |
85375-10260 |
from US $1.41 |
||
|
85348M
|
85348M
85375-14560
Joint, Windshield Washer Hose, No.2
[01.2017 -] GWZ100,URZ100 |
85375-14560 |
— | ||
|
85348N
|
85348N
85375-10260 Joint, Windshield Washer Hose, No.1[01.2017 -] GWZ100,URZ100 |
85375-10260 |
from US $1.41 |
||
|
85349
|
85349
85375-10260 Joint, Windshield Washer Hose, No.1[01.2017 -] GWZ100,URZ100 |
85375-10260 |
from US $1.41 |
||
|
85349C
|
85349C
85355-20200 Joint, Windshield Washer Hose, No.1[01.2017 -] GWZ100,URZ100 |
85355-20200 |
from US $0.95 |
||
|
85355
|
85355
85321-28020 Valve Sub-Assy, Washer[01.2017 -] GWZ100,URZ100 |
85321-28020 |
from US $9.94 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2017 -] GWZ100,URZ100 *H,L=300; GWZ100,URZ100 *H,L=300,KOREA SPEC |
90099-33080 |
from US $5.19 |
||
|
85371Y
|
85371Y
90446-07001 Hose, Windshield Washer (From Motor To Joint)[01.2017 -] GWZ100,URZ100 *H,L=305; GWZ100,URZ100 *H,L=305,KOREA SPEC |
90446-07001 |
from US $1.75 |
||
|
85372
|
85372
90099-33299 Joint, Windshield Washer Elbow, No.2[01.2017 -] GWZ100,URZ100 *H,L=400 |
90099-33299 |
from US $4.37 |
||
|
85372B
|
85372B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2017 -] GWZ100,URZ100 *H,L=60 |
90099-33080 |
from US $5.19 |
||
|
85372H
|
85372H
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2017 -] GWZ100,URZ100 *H,L=570 |
90099-33080 |
from US $5.19 |
||
|
85372J
|
85372J
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2017 -] GWZ100,URZ100 *H,L=90 |
90099-33080 |
from US $5.19 |
||
|
85372K
|
85372K
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2017 -] GWZ100,URZ100 *H,L=115 |
90099-33080 |
from US $5.19 |
||
|
85372L
|
85372L
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2017 -] GWZ100,URZ100 L=1450(*H,L=140) |
90099-33080 |
from US $5.19 |
||
|
85372M
|
85372M
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2017 -] GWZ100,URZ100 *H,L=230 |
90099-33080 |
from US $5.19 |
||
|
85372Y
|
85372Y
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2017 -] GWZ100,URZ100 |
90099-33080 |
from US $5.19 |
||
|
85373K
|
85373K
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2017 -] GWZ100,URZ100 *H,L=70 |
90099-33080 |
from US $5.19 |
||
|
85373L
|
85373L
85373-11020 Grommet, Washer[01.2017 -] GWZ100,URZ100 |
85373-11020 |
US $1.46 |
||
|
85373M
|
85373M
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2017 -] GWZ100,URZ100 *H,L=390 |
90099-33080 |
from US $5.19 |
||
|
85373N
|
85373N
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2017 -] GWZ100,URZ100 *H,L=50 |
90099-33080 |
from US $5.19 |
||
|
85373P
|
85373P
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2017 -] GWZ100,URZ100 *H,L=570 |
90099-33080 |
from US $5.19 |
||
|
85373Q
|
85373Q
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2017 -] GWZ100,URZ100 *H,L=120 |
90099-33080 |
from US $5.19 |
||
|
85373T
|
85373T
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2017 -] GWZ100,URZ100 *H,L=85 |
90099-33080 |
from US $5.19 |
||
|
85373U
|
85373U
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2017 -] GWZ100,URZ100 *H,L=120 |
90099-33080 |
from US $5.19 |
||
|
85373V
|
85373V
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2017 -] GWZ100,URZ100 L=1450(*H,L=330) |
90099-33080 |
from US $5.19 |
||
|
85389B
|
85389B
85389-11050
Protector, Windshield Washer
[01.2017 -] GWZ100,URZ100 |
85389-11050 |
— | ||
|
85397
|
85397
85397-52100 Switch Assy,level Warning[01.2017 -] GWZ100,URZ100 |
85397-52100 |
from US $36.88 |
||
|
827112C170
|
827112C170
82711-2C170 Clamp, Sliding Roof Or Removable Roof Drain Hose |
82711-2C170 |
US $1.61 |
||
|
827113F290
|
827113F290
82711-3F290 Clamp, Rear Washer Hose |
82711-3F290 |
US $1.79 |
||
|
8271111020
|
8271111020
82711-11020 Wire, Fuse To Fuse(For Combustion Heater) |
82711-11020 |
US $1.22 |
||
|
8271133770
|
8271133770
82711-33770 Wire, Fuse To Fuse(For Combustion Heater) |
82711-33770 |
US $1.38 |
||
|
8271152090
|
8271152090
82711-52090 Clamp |
82711-52090 |
from US $0.87 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.67 |
||
