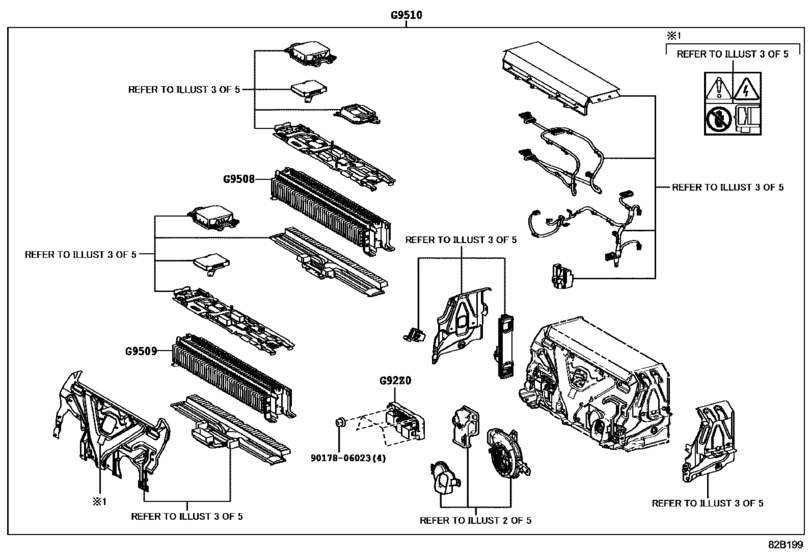

Battery & Battery Cable ([03.2017 - ] HV BATTERY (1703- )GWZ100) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- GCC
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
9017806023
|
9017806023
90178-06023 New Genuine Part |
90178-06023 |
US $1.08 |
||
|
G92Z0
|
G92Z0
G92Z0-33050 Block Assy, Hv Battery Junction[03.2017 -] GWZ100 |
G92Z0-33050 |
US $422.24 |
||
|
G9508
|
G9508
G9508-11010 Stack Sub-Assy, Hv Supply, No.1[03.2017 -] GWZ100 |
G9508-11010 |
US $2,373.28 |
||
|
G9509
|
G9509
G9509-11010 Stack Sub-Assy, Hv Supply, No.2[03.2017 -] GWZ100 |
G9509-11010 |
US $2,373.28 |
||
|
G9510
|
G9510
G9510-11011 Battery Assy, Hv Supply[03.2017 -] GWZ100 |
G9510-11011 |
US $5,532.80 |
