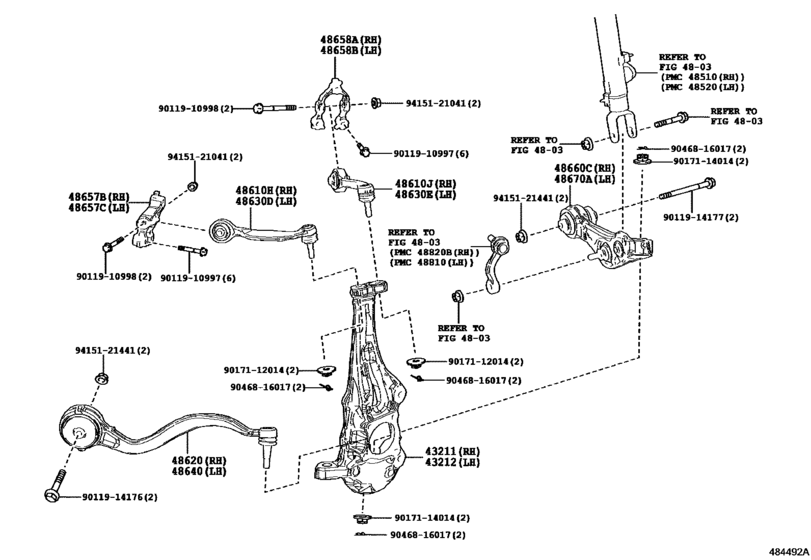

Front Axle Arm & Steering Knuckle ([03.2017 - ] (1703- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- GCC
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43201-19005 Knuckle, Steering, Rh[03.2017 -] GWZ100,URZ100 |
43201-19005 |
US $308.80 |
||
|
43212
|
43212
43202-19005 Knuckle, Steering, Lh[03.2017 -] GWZ100,URZ100 |
43202-19005 |
US $308.80 |
||
|
48610H
|
48610H
48610-11010 Arm Assy, Front Suspension Upper, No.1 Rh[03.2017 -] GWZ100,URZ100 |
48610-11010 |
from US $119.39 |
||
|
48610J
|
48610J
48610-11020 Arm Assy, Front Suspension Upper, No.2 Rh[03.2017 -] GWZ100,URZ100 |
48610-11020 |
from US $110.66 |
||
|
48620
|
48620
48620-11010 Arm Assy, Front Suspension, Lower Rh[03.2017 -] GWZ100,URZ100 |
48620-11010 |
from US $214.40 |
||
|
48630D
|
48630D
48630-11010 Arm Assy, Front Suspension Upper, No.1 Lh[03.2017 -] GWZ100,URZ100 |
48630-11010 |
US $119.39 |
||
|
48630E
|
48630E
48630-11020 Arm Assy, Front Suspension Upper, No.2 Lh[03.2017 -] GWZ100,URZ100 |
48630-11020 |
US $110.66 |
||
|
48640
|
48640
48640-11010 Arm Assy, Front Suspension Lower, Lh[03.2017 -] GWZ100,URZ100 |
48640-11010 |
from US $214.40 |
||
|
48657B
|
48657B
48657-11010 Bracket, Front Upper Arm, No.1 Rh[03.2017 -] GWZ100,URZ100 |
48657-11010 |
US $61.99 |
||
|
48657C
|
48657C
48657-11020 Bracket, Front Upper Arm, No.1 Lh[03.2017 -] GWZ100,URZ100 |
48657-11020 |
US $61.49 |
||
|
48658A
|
48658A
48658-11010 Bracket, Front Upper Arm, No.2 Rh[03.2017 -] GWZ100,URZ100 |
48658-11010 |
US $65.52 |
||
|
48658B
|
48658B
48658-11020 Bracket, Front Upper Arm, No.2 Lh[03.2017 -] GWZ100,URZ100 |
48658-11020 |
US $65.52 |
||
|
48660C
|
48660C
48620-11020
Arm Assy, Suspension, Lower No.2 Rh
[03.2017 -] GWZ100,URZ100 |
48620-11020 |
— | ||
| replacement | |||||
|
48660C
|
48660C
48620-11040 Arm Assy, Suspension, Lower No.2 Rh[03.2017 -] GWZ100,URZ100 |
48620-11040 |
US $349.22 |
||
|
48670A
|
48670A
48640-11020
Arm Assy, Suspension, Lower No.2 Lh
[03.2017 -] GWZ100,URZ100 |
48640-11020 |
— | ||
| replacement | |||||
|
48670A
|
48670A
48640-11040 Arm Assy, Suspension, Lower No.2 Lh[03.2017 -] GWZ100,URZ100 |
48640-11040 |
US $378.18 |
||
|
9011910997
|
9011910997
90119-10997 New Genuine Part |
90119-10997 |
US $2.87 |
||
|
9011910998
|
9011910998
90119-10998 New Genuine Part |
90119-10998 |
US $3.40 |
||
|
9011914176
|
9011914176
90119-14176 BOLT WWASHER |
90119-14176 |
US $6.45 |
||
|
9011914177
|
9011914177
90119-14177 New Genuine Part |
90119-14177 |
US $7.71 |
||
|
9017112014
|
9017112014
90171-12014 Nut, Castle(For Tie Rod End) |
90171-12014 |
from US $1.46 |
||
|
9017114014
|
9017114014
90171-14014 Nut, Castle (For Front Lower Ball Joint Rh) |
90171-14014 |
from US $1.79 |
||
|
9046816017
|
9046816017
90468-16017 CLIP |
90468-16017 |
from US $0.82 |
||
|
9415121041
|
9415121041
94151-21041 NUT FLANGE |
94151-21041 |
from US $0.89 |
||
|
9415121441
|
9415121441
94151-21441 NUT FLANGE |
94151-21441 |
from US $1.12 |
||
