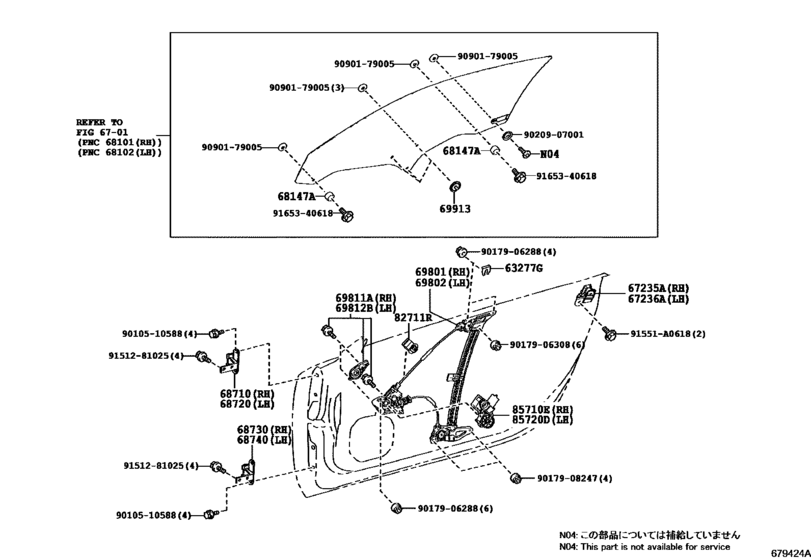

Front Door Window Regulator & Hinge ([03.2017 - ] (1703- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- GCC
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63277G
|
63277G
63277-30060 Shim, Window Regulator[03.2017 -] GWZ100,URZ100 |
63277-30060 |
US $2.15 |
||
|
67235A
|
67235A
67235-11020 Stabilizer, Door Glass Female, Rh[03.2017 -] GWZ100,URZ100 |
67235-11020 |
US $25.33 |
||
|
67236A
|
67236A
67236-11020 Stabilizer, Door Glass Female, Lh[03.2017 -] GWZ100,URZ100 |
67236-11020 |
US $31.58 |
||
|
68147A
|
68147A
68147-22010 Stop, Front Door Glass, Upper[03.2017 -] GWZ100,URZ100 |
68147-22010 |
US $4.80 |
||
|
68710
|
68710
68710-11010 Hinge Assy, Front Door, Upper Rh[03.2017 -] GWZ100,URZ100 |
68710-11010 |
US $75.71 |
||
|
68720
|
68720
68720-11010 Hinge Assy, Front Door, Upper Lh[03.2017 -] GWZ100,URZ100 |
68720-11010 |
US $75.71 |
||
|
68730
|
68730
68710-11010 Hinge Assy, Front Door, Upper Rh[03.2017 -] GWZ100,URZ100 |
68710-11010 |
US $75.71 |
||
|
68740
|
68740
68720-11010 Hinge Assy, Front Door, Upper Lh[03.2017 -] GWZ100,URZ100 |
68720-11010 |
US $75.71 |
||
|
69801
|
69801
69801-11010 Regulator Sub-Assy, Front Door Window, Rh[03.2017 -] GWZ100,URZ100 |
69801-11010 |
US $80.08 |
||
|
69802
|
69802
69802-11010 Regulator Sub-Assy, Front Door Window, Lh[03.2017 -] GWZ100,URZ100 |
69802-11010 |
US $80.08 |
||
|
69811A
|
69811A
69813-24020 Plate, Front Door Power Window Regulator Base[03.2017 -] GWZ100,URZ100 |
69813-24020 |
US $8.01 |
||
|
69812B
|
69812B
69814-24020 Plate, Front Door Window Regulator Base, Lh[03.2017 -] GWZ100,URZ100 |
69814-24020 |
US $8.01 |
||
|
69913
|
69913
69913-30090
Bolt, Front Door Glass Setting
[03.2017 -] GWZ100,URZ100 |
69913-30090 |
— | ||
|
82711R
|
82711R
82711-1E350 Clamp, Wiring Harness[03.2017 -] GWZ100,URZ100 |
82711-1E350 |
from US $2.03 |
||
|
85710E
|
85710E
85710-11010 Motor Assy, Power Window Regulator, Rh[03.2017 -] GWZ100,URZ100 |
85710-11010 |
US $281.01 |
||
|
85720D
|
85720D
85720-11010 Motor Assy, Power Window Regulator, Lh[03.2017 -] GWZ100,URZ100 |
85720-11010 |
US $281.01 |
||
|
91551A0618
|
91551A0618
91551-A0618 BOLT FLANGE |
91551-A0618 |
from US $0.76 |
||
|
9010510588
|
9010510588
90105-10588 New Genuine Part |
90105-10588 |
US $1.79 |
||
|
9017906288
|
9017906288
90179-06288 NUT |
90179-06288 |
from US $0.84 |
||
|
9017906308
|
9017906308
90179-06308 NUT |
90179-06308 |
from US $0.89 |
||
|
9017908247
|
9017908247
90179-08247 New Genuine Part |
90179-08247 |
US $1.79 |
||
|
9020907001
|
9020907001
90209-07001 New Genuine Part |
90209-07001 |
US $1.46 |
||
|
9090179005
|
9090179005
90901-79005 New Genuine Part |
90901-79005 |
US $2.33 |
||
|
9151281025
|
9151281025
91512-81025 Bolt(For Torque Arm Setting) |
91512-81025 |
from US $1.10 |
||
|
9165340618
|
9165340618
91653-40618 New Genuine Part |
91653-40618 |
US $0.73 |
