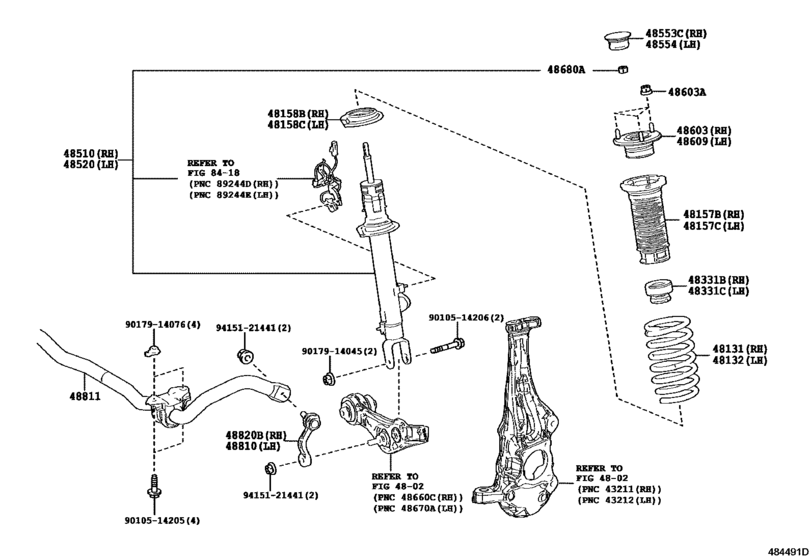

Front Spring & Shock Absorber ([03.2017 - ] (1703- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- GCC
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-11030 Spring, Front Coil, Rh[03.2017 -] GWZ100,URZ100 |
48131-11030 |
US $81.54 |
||
|
48132
|
48132
48131-11030 Spring, Front Coil, Rh[03.2017 -] GWZ100,URZ100 |
48131-11030 |
US $81.54 |
||
|
48157B
|
48157B
48157-11010 Insulator, Front Coil Spring, Upper Rh[03.2017 -] GWZ100,URZ100 |
48157-11010 |
US $15.87 |
||
|
48157C
|
48157C
48157-11010 Insulator, Front Coil Spring, Upper Rh[03.2017 -] GWZ100,URZ100 |
48157-11010 |
US $15.87 |
||
|
48158B
|
48158B
48158-30020 Insulator, Front Coil Spring, Lower[03.2017 -] GWZ100,URZ100 |
48158-30020 |
from US $4.96 |
||
|
48158C
|
48158C
48158-30020 Insulator, Front Coil Spring, Lower[03.2017 -] GWZ100,URZ100 |
48158-30020 |
from US $4.96 |
||
|
48331B
|
48331B
48331-11020 Bumper, Front Spring, Rh[03.2017 -] GWZ100,URZ100 |
48331-11020 |
US $8.30 |
||
|
48331C
|
48331C
48331-11020 Bumper, Front Spring, Rh[03.2017 -] GWZ100,URZ100 |
48331-11020 |
US $8.30 |
||
|
48510
|
48510
48510-80859 Absorber Assy, Shock, Front Rh[03.2017 -] GWZ100,URZ100 MARK 48510-11020 |
48510-80859 |
from US $365.46 |
||
|
48520
|
48520
48520-80532 Absorber Assy, Shock, Front Lh[03.2017 -] GWZ100,URZ100 MARK 48520-11020 |
48520-80532 |
US $1,007.15 |
||
| replacement | |||||
|
48520
|
48520
48520-80557 Absorber Assy, Shock, Front Lh[03.2017 -] GWZ100,URZ100 MARK 48520-11020 |
48520-80557 |
US $1,108.99 |
||
|
48553C
|
48553C
48553-50150 Cap, Front Shock Absorber, Rh[03.2017 -] GWZ100,URZ100 |
48553-50150 |
US $7.72 |
||
|
48554
|
48554
48553-50150 Cap, Front Shock Absorber, Rh[03.2017 -] GWZ100,URZ100 |
48553-50150 |
US $7.72 |
||
|
48603
|
48603
48609-11010 Support Sub-Assy, Front Suspension, Rh[03.2017 -] GWZ100,URZ100 |
48609-11010 |
US $69.72 |
||
|
48603A
|
48603A
90178-10033 Nut(For Front Suspension Support)[03.2017 -] GWZ100,URZ100 |
90178-10033 |
US $1.79 |
||
|
48609
|
48609
48609-11010 Support Sub-Assy, Front Suspension, Rh[03.2017 -] GWZ100,URZ100 |
48609-11010 |
US $69.72 |
||
|
48680A
|
48680A
90177-12002 Nut[03.2017 -] GWZ100,URZ100 |
90177-12002 |
US $1.61 |
||
|
48810
|
48810
48810-11010 Link Assy, Front Stabilizer, Lh[03.2017 -] GWZ100,URZ100 |
48810-11010 |
from US $82.02 |
||
|
48811
|
48811
48804-11010 Bar, Stabilizer, Front[03.2017 -] GWZ100,URZ100 |
48804-11010 |
US $163.07 |
||
|
48820B
|
48820B
48820-11010 Link Assy, Front Stabilizer, Rh[03.2017 -] GWZ100,URZ100 |
48820-11010 |
from US $71.57 |
||
|
9010514205
|
9010514205
90105-14205 New Genuine Part |
90105-14205 |
US $3.03 |
||
|
9010514206
|
9010514206
90105-14206 New Genuine Part |
90105-14206 |
US $5.56 |
||
|
9017914045
|
9017914045
90179-14045 Nut(For Front Shock Absorber Bracket Lower) |
90179-14045 |
from US $1.37 |
||
|
9017914076
|
9017914076
90179-14076 New Genuine Part |
90179-14076 |
US $2.04 |
||
|
9415121441
|
9415121441
94151-21441 NUT FLANGE |
94151-21441 |
from US $1.12 |
||
