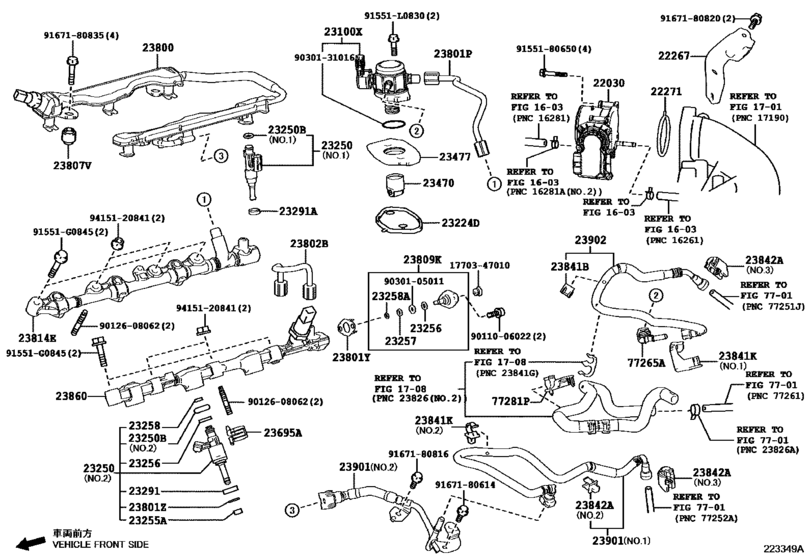

Fuel Injection System ([03.2017 - ] (1703- )8GRFXS) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- GCC
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22030
|
22030
22030-31100 Body Assy, Throttle W/motor[03.2017 -] 8GRFXS..GWZ100 |
22030-31100 |
US $710.53 |
||
|
22267
|
22267
22267-31090 Bracket, Throttle Body[03.2017 -] 8GRFXS..GWZ100 |
22267-31090 |
US $14.56 |
||
|
22271
|
22271
22271-31040 Gasket, Throttle Body[03.2017 -] 8GRFXS..GWZ100 |
22271-31040 |
from US $3.55 |
||
|
23100X
|
23100X
23101-31110 Pump Assy, Fuel[03.2017 -] 8GRFXS..GWZ100 |
23101-31110 |
US $742.56 |
||
|
23224D
|
23224D
23224-31020 Gasket, Fuel Pump Spacer[03.2017 -] 8GRFXS..GWZ100 |
23224-31020 |
US $6.84 |
||
|
23250
|
23250
23209-31130 Injector Assy, Fuel[03.2017 -] 8GRFXS..GWZ100 NO.1 |
23209-31130 |
US $168.90 |
||
|
23250
|
23250
23209-31170-06 Injector Assy, Fuel[03.2017 -] 8GRFXS..GWZ100 MARK 6,NO.2 |
23209-31170-06 |
from US $349.56 |
||
|
23250
|
23250
23209-31170-07 Injector Assy, Fuel[03.2017 -] 8GRFXS..GWZ100 MARK 7,NO.2 |
23209-31170-07 |
from US $338.50 |
||
|
23250
|
23250
23209-31170-08 Injector Assy, Fuel[03.2017 -] 8GRFXS..GWZ100 MARK 8,NO.2 |
23209-31170-08 |
US $419.64 |
||
|
23250B
|
23250B
90301-05011 Ring, O(For Fuel Injector)[03.2017 -] 8GRFXS..GWZ100 NO.2 |
90301-05011 |
from US $2.09 |
||
|
23250B
|
23250B
90301-07037 Ring, O(For Fuel Injector)[03.2017 -] 8GRFXS..GWZ100 NO.1 |
90301-07037 |
from US $2.07 |
||
|
23255A
|
23255A
23255-31020 Seal, Fuel Injector[03.2017 -] 8GRFXS..GWZ100 |
23255-31020 |
from US $0.80 |
||
|
23256
|
23256
23256-31010 Ring, Fuel Injector Back-Up, No.1[03.2017 -] 8GRFXS..GWZ100 |
23256-31010 |
from US $3.50 |
||
|
23257
|
23257
23257-47010 Ring, Fuel Injector Back-Up, No.2[03.2017 -] 8GRFXS..GWZ100 |
23257-47010 |
US $2.87 |
||
|
23258
|
23258
23258-31020 Ring, Fuel Injector Back-Up, No.3[03.2017 -] 8GRFXS..GWZ100 |
23258-31020 |
from US $1.75 |
||
|
23258A
|
23258A
23258-31010 Ring, Fuel Injector Back-Up, No.3[03.2017 -] 8GRFXS..GWZ100 |
23258-31010 |
from US $0.42 |
||
|
23291
|
23291
23291-31030 Insulator, Injector Vibration[03.2017 -] 8GRFXS..GWZ100 |
23291-31030 |
US $7.03 |
||
|
23291A
|
23291A
23291-23010 Insulator, Injector Vibration[03.2017 -] 8GRFXS..GWZ100 |
23291-23010 |
from US $2.51 |
||
|
23470
|
23470
23470-31010 Lifter Assy, Fuel Pump[03.2017 -] 8GRFXS..GWZ100 |
23470-31010 |
US $8.74 |
||
|
23477
|
23477
23477-31020 Guide, Fuel Pump Lifter[03.2017 -] 8GRFXS..GWZ100 |
23477-31020 |
US $21.50 |
||
|
23695A
|
23695A
23695-31020 Clamp, Nozzle Holder[03.2017 -] 8GRFXS..GWZ100 |
23695-31020 |
from US $1.84 |
||
|
23800
|
23800
23800-31030 Pipe Assy, Fuel Delivery W/sensor[03.2017 -] 8GRFXS..GWZ100 |
23800-31030 |
US $216.94 |
||
|
23801P
|
23801P
23801-31210 Pipe Sub-Assy, Fuel, No.1[03.2017 -] 8GRFXS..GWZ100 |
23801-31210 |
US $36.98 |
||
|
23801Y
|
23801Y
23893-47010 Gasket[03.2017 -] 8GRFXS..GWZ100 |
23893-47010 |
US $3.58 |
||
|
23801Z
|
23801Z
90520-14004 Ring, Snap(For Fuel Pipe)[03.2017 -] 8GRFXS..GWZ100 |
90520-14004 |
from US $0.84 |
||
|
23802B
|
23802B
23802-31160 Pipe Sub-Assy, Fuel, No.2[03.2017 -] 8GRFXS..GWZ100 |
23802-31160 |
US $32.18 |
||
|
23807V
|
23807V
90561-08023 Spacer, No.1(For Delivery Pipe)[03.2017 -] 8GRFXS..GWZ100 |
90561-08023 |
from US $1.90 |
||
|
23809K
|
23809K
23809-47010 Plug Sub-Assy, Fuel Pipe[03.2017 -] 8GRFXS..GWZ100 |
23809-47010 |
US $23.18 |
||
|
23814E
|
23814E
23807-31110 Pipe, Fuel Delivery, Rh[03.2017 -] 8GRFXS..GWZ100 |
23807-31110 |
US $278.10 |
||
|
23841B
|
23841B
23841-31170 Clamp, Fuel Pipe, No.1(For Efi)[03.2017 -] 8GRFXS..GWZ100 |
23841-31170 |
US $2.62 |
||
|
23841K
|
23841K
23841-31130 Clamp, Fuel Pipe[03.2017 -] 8GRFXS..GWZ100 NO.1 |
23841-31130 |
US $2.04 |
||
|
23841K
|
23841K
23841-31210 Clamp, Fuel Pipe[03.2017 -] 8GRFXS..GWZ100 NO.2 |
23841-31210 |
US $2.04 |
||
|
23842A
|
23842A
23841-31170 Clamp, Fuel Pipe, No.1(For Efi)[03.2017 -] 8GRFXS..GWZ100 NO.2 |
23841-31170 |
US $2.62 |
||
|
23842A
|
23842A
23842-28010 Clamp, Fuel Pipe, No.1(For Efi)[03.2017 -] 8GRFXS..GWZ100 NO.3 |
23842-28010 |
from US $5.36 |
||
|
23860
|
23860
23860-31030 Pipe Assy, Fuel Delivery W/sensor, Lh[03.2017 -] 8GRFXS..GWZ100 |
23860-31030 |
from US $289.74 |
||
|
23901
|
23901
23901-31330 Tube Sub-Assy, Fuel[03.2017 -] 8GRFXS..GWZ100 NO.2 |
23901-31330 |
US $77.17 |
||
|
23901
|
23901
23901-31350 Tube Sub-Assy, Fuel[03.2017 -] 8GRFXS..GWZ100 NO.1 |
23901-31350 |
US $70.91 |
||
|
23902
|
23902
23902-31110 Tube Sub-Assy, Fuel[03.2017 -] 8GRFXS..GWZ100 |
23902-31110 |
US $62.75 |
||
|
77265A
|
77265A
77265-30030 Connector, Fuel Main Tube[03.2017 -] GWZ100 |
77265-30030 |
US $7.28 |
||
|
77281P
|
77281P
77281-11010 Clamp, Fuel Hose[03.2017 -] GWZ100 |
77281-11010 |
US $3.35 |
||
|
91551G0845
|
91551G0845
91551-G0845 Bolt(For Camshaft Housing Set) |
91551-G0845 |
US $1.79 |
||
|
91551L0830
|
91551L0830
91551-L0830 Bolt(For Camshaft Housing Set) |
91551-L0830 |
US $0.61 |
||
|
1770347010
|
1770347010
17703-47010 Case Sub-Assy, Bottom Air Cleaner Filter |
17703-47010 |
US $0.86 |
||
|
9011006022
|
9011006022
90110-06022 New Genuine Part |
90110-06022 |
US $0.69 |
||
|
9012608062
|
9012608062
90126-08062 Bolt, Stud(For Intake Manifold To Cylinder Head) |
90126-08062 |
from US $0.82 |
||
|
9030105011
|
9030105011
90301-05011 Ring, O(For Fuel Injector) |
90301-05011 |
from US $2.09 |
||
|
9030131016
|
9030131016
90301-31016 RING O |
90301-31016 |
US $2.01 |
||
|
9155180650
|
9155180650
91551-80650 BOLT FLANGE |
91551-80650 |
from US $0.78 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.76 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.78 |
||
|
9167180835
|
9167180835
91671-80835 Bolt, Compressor, No.1 |
91671-80835 |
US $1.79 |
||
|
9415120841
|
9415120841
94151-20841 Nut |
94151-20841 |
US $1.43 |
