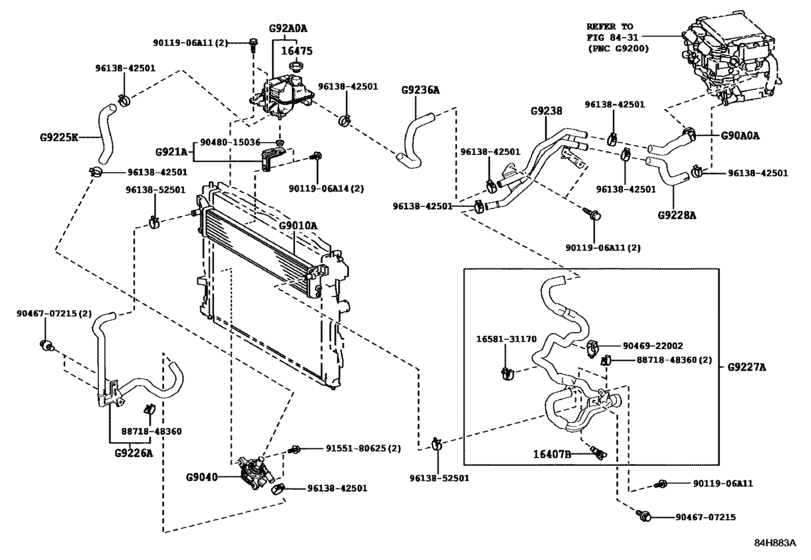

Inverter Cooling ([03.2017 - ] (1703- )GWZ100..LHD) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- GCC
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16407B
|
16407B
16407-64010 Cock Sub-Assy, Water Drain(For Water By-Pass Joint)[03.2017 -] 8GRFXS..GWZ100 |
16407-64010 |
US $6.81 |
||
|
16475
|
16475
16475-28140 Cap Sub-Assy, Radiator Reserve Tank[03.2017 -] 8GRFXS..GWZ100 |
16475-28140 |
from US $20.16 |
||
|
9011906A11
|
9011906A11
90119-06A11 BOLT WWASHER |
90119-06A11 |
US $1.08 |
||
|
9011906A14
|
9011906A14
90119-06A14 BOLT, W/WASHER |
90119-06A14 |
US $1.08 |
||
|
1658131170
|
1658131170
16581-31170 Clamp, Hose(For Water Hose) |
16581-31170 |
US $5.82 |
||
|
8871848360
|
8871848360
88718-48360 Clip Or Clamp (For Heater Water Hose) |
88718-48360 |
US $1.92 |
||
|
9046707215
|
9046707215
90467-07215 Clip |
90467-07215 |
from US $0.82 |
||
|
9046922002
|
9046922002
90469-22002 Clamp, Hose, No.1 |
90469-22002 |
US $2.06 |
||
|
9048015036
|
9048015036
90480-15036 Grommet |
90480-15036 |
US $1.79 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.63 |
||
|
9613842501
|
9613842501
96138-42501 Clip, Hose(For Radiator Hose Sub-Assy) |
96138-42501 |
from US $2.87 |
||
|
9613852501
|
9613852501
96138-52501 Clip, Hose(For Radiator Hose Sub-Assy) |
96138-52501 |
from US $3.23 |
||
|
G90A0A
|
G90A0A
G90A0-11010
Hose Assy, Inverter Cooling, No.1
[03.2017 -] GWZ100..LHD |
G90A0-11010 |
— | ||
|
G92A0A
|
G92A0A
G91H0-11010 Tank Assy, Inverter Reserve[03.2017 -] GWZ100 |
G91H0-11010 |
US $97.10 |
||
|
G921A
|
G921A
G91H2-11010 Bracket, Inverter Reserve Tank, No.1[03.2017 -] GWZ100 |
G91H2-11010 |
US $11.36 |
||
|
G9010A
|
G9010A
G9010-11010 Radiator Assy, Sub[03.2017 -] GWZ100..ARL,GEN; GWZ100..GCC |
G9010-11010 |
US $354.33 |
||
|
G9040
|
G9040
G9040-33050 Inverter Water Pump Assy(W/motor)[03.2017 -] GWZ100 |
G9040-33050 |
from US $337.73 |
||
|
G9225K
|
G9225K
G9225-11010 Hose, Inverter Cooling, No.1[03.2017 -] GWZ100 |
G9225-11010 |
US $12.08 |
||
|
G9226A
|
G9226A
G9226-11010 Hose, Inverter Cooling, No.2[03.2017 -] GWZ100 |
G9226-11010 |
US $46.87 |
||
|
G9227A
|
G9227A
G9227-11010
Hose, Inverter Cooling, No.3
[03.2017 -] GWZ100..LHD |
G9227-11010 |
— | ||
|
G9228A
|
G9228A
G9228-11030
Hose, Inverter Cooling, No.4
[03.2017 -] GWZ100..LHD |
G9228-11030 |
— | ||
|
G9236A
|
G9236A
G9236-11010
Hose, Inverter Cooling, No.6
[03.2017 -] GWZ100..LHD |
G9236-11010 |
— | ||
|
G9238
|
G9238
G9238-11010
Pipe, Inverter Cooling
[03.2017 -] GWZ100..LHD |
G9238-11010 |
— |
