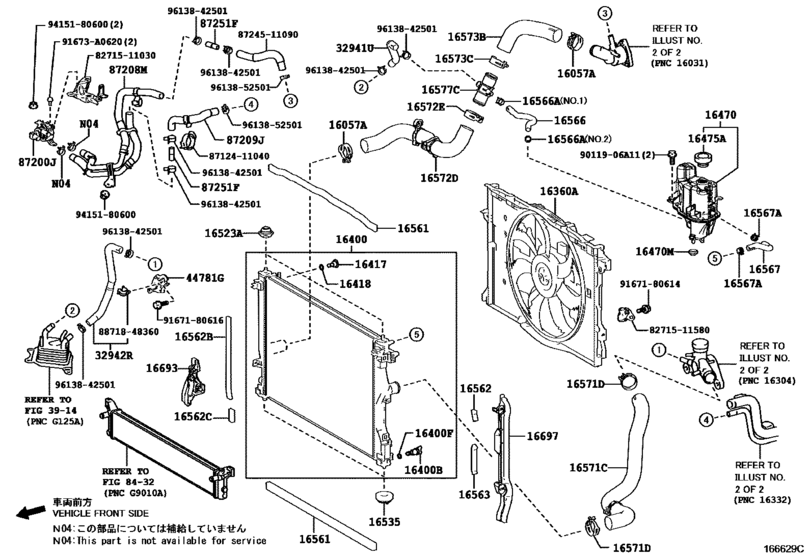

Radiator & Water Outlet ([03.2017 - ] (1703- )8GRFXS) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- GWZ100
- ENGINE
- 8GRFXS
- TRANSMISSION
- CVT
- DESTINATION
- GCC
- Model
- LC500 Hybrid
- From
- 03.2017
- Vehicle Model
- LC500 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16057A
|
16057A
90466-39002 Clip, Hose(For Radiator Hose Sub-Assy)[03.2017 -] 8GRFXS..GWZ100 |
90466-39002 |
from US $3.80 |
||
|
16360A
|
16360A
16360-31520 Fan Assy, W/motor[03.2017 -] 2URGSE..URZ100; 8GRFXS..GWZ100..GCC |
16360-31520 |
US $683.11 |
||
|
16400
|
16400
16400-31700 Radiator Assy[03.2017 -] 8GRFXS..GWZ100; 2URGSE..URZ100 |
16400-31700 |
US $496.20 |
||
|
16400B
|
16400B
16417-21280 Cock Sub-Assy, Radiator Drain[03.2017 -] 8GRFXS..GWZ100; 2URGSE..URZ100 |
16417-21280 |
from US $3.46 |
||
|
16400F
|
16400F
16492-21050 Ring, O(For Oil Cooler Drain Cock)[03.2017 -] 8GRFXS..GWZ100; 2URGSE..URZ100 |
16492-21050 |
from US $2.13 |
||
|
16417
|
16417
16417-28530 Plug, Radiator Drain Cock[03.2017 -] 8GRFXS..GWZ100; 2URGSE..URZ100 |
16417-28530 |
from US $4.69 |
||
|
16418
|
16418
16418-20291 Packing(For Radiator Drain Cock)[03.2017 -] 8GRFXS..GWZ100; 2URGSE..URZ100 |
16418-20291 |
US $3.76 |
||
|
16470
|
16470
16470-31200 Tank Assy, Radiator Reserve[03.2017 -] 8GRFXS..GWZ100 |
16470-31200 |
US $116.44 |
||
|
16470M
|
16470M
90480-18010 Grommet, Radiator Reserve Tank Hose[03.2017 -] 8GRFXS..GWZ100; 2URGSE..URZ100 |
90480-18010 |
from US $2.09 |
||
|
16475A
|
16475A
16475-28140 Cap Sub-Assy, Radiator Reserve Tank[03.2017 -] 8GRFXS..GWZ100; 2URGSE..URZ100 |
16475-28140 |
from US $20.16 |
||
|
16523A
|
16523A
16523-38010 Cushion, Radiator Support[03.2017 -] 8GRFXS..GWZ100; 2URGSE..URZ100 |
16523-38010 |
from US $5.43 |
||
|
16535
|
16535
90480-40022 Support, Radiator, Lower[03.2017 -] 8GRFXS..GWZ100; 2URGSE..URZ100 |
90480-40022 |
from US $10.39 |
||
|
16561
|
16561
16561-31170 Seal, Radiator To Support, No.1[03.2017 -] 8GRFXS..GWZ100; 2URGSE..URZ100 |
16561-31170 |
US $4.12 |
||
|
16562
|
16562
16561-31180 Seal, Radiator To Support, No.2[03.2017 -] 8GRFXS..GWZ100; 2URGSE..URZ100 |
16561-31180 |
US $1.43 |
||
|
16562B
|
16562B
16561-31200 Seal, Radiator To Support, No.4[03.2017 -] 8GRFXS..GWZ100; 2URGSE..URZ100 |
16561-31200 |
US $2.87 |
||
|
16562C
|
16562C
16561-31210 Seal, Radiator To Support, No.5[03.2017 -] 8GRFXS..GWZ100; 2URGSE..URZ100 |
16561-31210 |
US $1.43 |
||
|
16563
|
16563
16561-31190 Seal, Radiator To Support, No.3[03.2017 -] 8GRFXS..GWZ100; 2URGSE..URZ100 |
16561-31190 |
US $1.43 |
||
|
16566
|
16566
16566-31040 Hose, Reserve Tank Outlet[03.2017 -] 8GRFXS..GWZ100 |
16566-31040 |
US $4.66 |
||
|
16566A
|
16566A
96136-41901 Clip Or Clamp(For Ventilation Hose)[03.2017 -] 8GRFXS..GWZ100 NO.1 |
96136-41901 |
from US $2.05 |
||
|
16566A
|
16566A
96137-41701 Clamp Or Clip, Hose(For Water By-Pass Hose)[03.2017 -] 8GRFXS..GWZ100 NO.2; 2URGSE..URZ100 NO.1:REFER ILLUST. |
96137-41701 |
from US $2.36 |
||
|
16567
|
16567
16567-31050 Hose(For Radiator Reserve Tank)[03.2017 -] 8GRFXS..GWZ100 |
16567-31050 |
US $6.27 |
||
|
16567A
|
16567A
96136-41901 Clip Or Clamp(For Ventilation Hose)[03.2017 -] 8GRFXS..GWZ100; 2URGSE..URZ100 |
96136-41901 |
from US $2.05 |
||
|
16571C
|
16571C
16571-31400 Hose, Radiator, No.1[03.2017 -] 8GRFXS..GWZ100 |
16571-31400 |
US $20.09 |
||
|
16571D
|
16571D
90466-39002 Clip, Hose(For Radiator Hose Sub-Assy)[03.2017 -] 8GRFXS..GWZ100; 2URGSE..URZ100 |
90466-39002 |
from US $3.80 |
||
|
16572D
|
16572D
16572-31470 Hose, Radiator, No.2[03.2017 -] 8GRFXS..GWZ100 |
16572-31470 |
US $18.20 |
||
|
16572E
|
16572E
90466-39002 Clip, Hose(For Radiator Hose Sub-Assy)[03.2017 -] 8GRFXS..GWZ100 |
90466-39002 |
from US $3.80 |
||
|
16573B
|
16573B
16573-31090 Hose, Radiator, No.3[03.2017 -] 8GRFXS..GWZ100 |
16573-31090 |
US $13.54 |
||
|
16573C
|
16573C
90466-39002 Clip, Hose(For Radiator Hose Sub-Assy)[03.2017 -] 8GRFXS..GWZ100 |
90466-39002 |
from US $3.80 |
||
|
16577C
|
16577C
16577-31050 Pipe, Radiator[03.2017 -] 8GRFXS..GWZ100 |
16577-31050 |
US $15.14 |
||
|
16693
|
16693
16693-31030 Plate, Radiator Side Air Guide, Rr Rh[03.2017 -] 8GRFXS..GWZ100; 2URGSE..URZ100 |
16693-31030 |
US $11.83 |
||
|
16697
|
16697
16697-31030 Plate, Radiator Side Air Guide, Rr Lh[03.2017 -] 8GRFXS..GWZ100; 2URGSE..URZ100 |
16697-31030 |
US $18.82 |
||
|
32941U
|
32941U
32941-11030 Hose, Oil Cooler Inlet[03.2017 -] GWZ100 |
32941-11030 |
US $15.29 |
||
|
32942R
|
32942R
32942-11030 Hose, Oil Cooler Outlet[03.2017 -] GWZ100 |
32942-11030 |
US $26.50 |
||
|
44781G
|
44781G
44781-11010 Bracket, Hose[03.2017 -] GWZ100 |
44781-11010 |
US $8.30 |
||
|
87200J
|
87200J
87200-11010
Accessory Assy, Heater
[03.2017 -] GWZ100 |
87200-11010 |
— | ||
|
87208M
|
87208M
87208-11010
Pipe Sub-Assy, Water
[03.2017 -] GWZ100 |
87208-11010 |
— | ||
|
87209J
|
87209J
87209-11050 Hose Sub-Assy, Water[03.2017 -] GWZ100 |
87209-11050 |
US $17.47 |
||
|
87251F
|
87251F
87251-35020 Pipe Sub-Assy, Water[03.2017 -] GWZ100 |
87251-35020 |
from US $3.67 |
||
|
91673A0620
|
91673A0620
91673-A0620 BOLT FLANGE |
91673-A0620 |
from US $0.65 |
||
|
9011906A11
|
9011906A11
90119-06A11 BOLT WWASHER |
90119-06A11 |
US $1.08 |
||
|
8271511030
|
8271511030
82715-11030 Bracket,wiring Harness Clamp |
82715-11030 |
US $12.23 |
||
|
8271511580
|
8271511580
82715-11580 Bracket,wiring Harness Clamp |
82715-11580 |
US $4.37 |
||
|
8724511090
|
8724511090
87245-11090 Hose, Heater Water, Inlet |
87245-11090 |
US $8.15 |
||
|
8871848360
|
8871848360
88718-48360 Clip Or Clamp (For Heater Water Hose) |
88718-48360 |
US $1.92 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.63 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
|
9613842501
|
9613842501
96138-42501 Clip, Hose(For Radiator Hose Sub-Assy) |
96138-42501 |
from US $2.87 |
||
|
9613852501
|
9613852501
96138-52501 Clip, Hose(For Radiator Hose Sub-Assy) |
96138-52501 |
from US $3.23 |
